    Ražotājs: LEVELONE

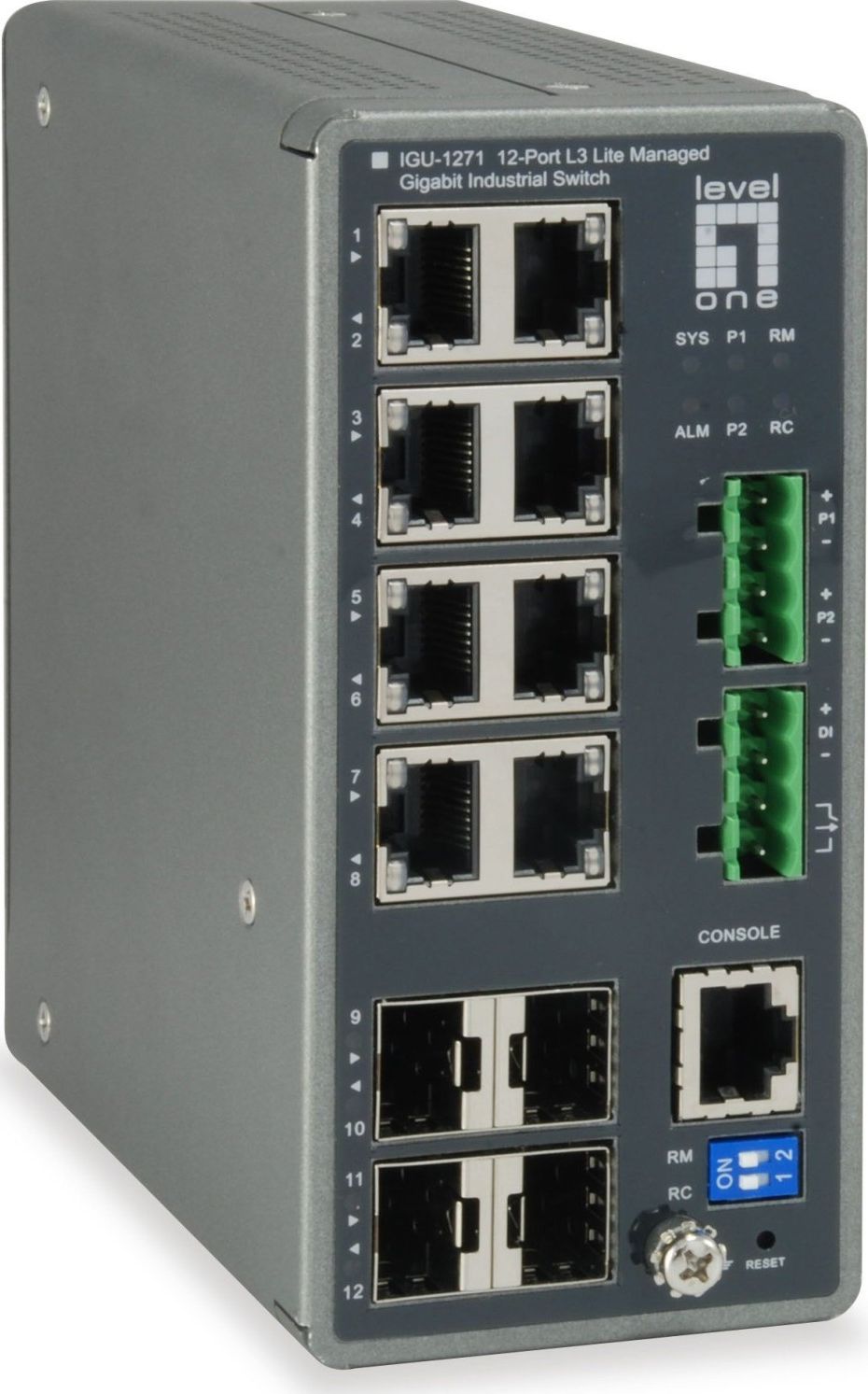

    LevelOne IGU-1271 TURING 12-Port L3 Lite Gigabit Switch


    €859,14 ar pvn

    Artikuls: ST07371093
    Preces kods: IGU-1271
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Īpašības RJ-45
    power over ethernet (poe)No
    sflowYes
    ethernet ring protection switching (erps)Yes
    weight700 g
    height135 mm
    width62 mm
    depth130 mm
    switch typeManaged
    country of originTaiwan
    switch layerL3
    web-based managementYes
    basic switching rj-45 ethernet ports quantity8
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    sfp module slots quantity4
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u
    10g supportNo
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    port mirroringYes
    link aggregationYes
    mac address table8000 entries
    switching capacity24 Gbit/s
    forwarding rate17.856 Mpps
    store-and-forwardYes
    packet buffer memory0.5 MB
    access control list (acl)Yes
    product colourGrey
    led indicatorsAlarm, Power, Status, System
    mean time between failures (mtbf)476206 h
    power consumption (max)239.2 W
    operating temperature (t-t)-40 - 75 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)10 - 90%
    heat dissipation36.03 BTU/h
    package width255 mm
    package depth207 mm
    package height85 mm
    package weight900 g
    certificationFCC, CE, DMS
    harmonized system (hs) code85176990
    package typeBox
    cables includedLAN (RJ-45)
    master (outer) case gross weight2.4 kg
    master (outer) case width520 mm
    master (outer) case length445 mm
    master (outer) case height220 mm
    products per master (outer) case10 pc(s)
    jumbo frames supportYes
    resource cdYes
    safetyUL,CB
    reset buttonYes
    quick start guideYes
    jumbo frames9216
    internal memory128 MB
    spanning tree protocolYes
    supported network protocolsIPv4/IPv6
    dc input voltage48 - 57 V
    static routeYes
    vlan supportYes
    firmware upgradeableYes
    system event logYes
    flash memory32 MB
    broadcast storm controlYes
    dhcp featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
    loop protectionYes
    management protocolsSNMP, Web, Telnet, SSH
    console portRJ-45
    din rail mountingYes
    bpdu filtering/protectionYes
    root protectionYes
    remarking priorityY
    Description
    LevelOne IGU-1271. Slēdža tips: Vadīts, Slēdža līmenis: L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 24 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC ievades spriegums: 48 - 57 V

    Specifikācija
    Īpašības RJ-45
    power over ethernet (poe)No
    sflowYes
    ethernet ring protection switching (erps)Yes
    weight700 g
    height135 mm
    width62 mm
    depth130 mm
    switch typeManaged
    country of originTaiwan
    switch layerL3
    web-based managementYes
    basic switching rj-45 ethernet ports quantity8
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    sfp module slots quantity4
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u
    10g supportNo
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    port mirroringYes
    link aggregationYes
    mac address table8000 entries
    switching capacity24 Gbit/s
    forwarding rate17.856 Mpps
    store-and-forwardYes
    packet buffer memory0.5 MB
    access control list (acl)Yes
    product colourGrey
    led indicatorsAlarm, Power, Status, System
    mean time between failures (mtbf)476206 h
    power consumption (max)239.2 W
    operating temperature (t-t)-40 - 75 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)10 - 90%
    heat dissipation36.03 BTU/h
    package width255 mm
    package depth207 mm
    package height85 mm
    package weight900 g
    certificationFCC, CE, DMS
    harmonized system (hs) code85176990
    package typeBox
    cables includedLAN (RJ-45)
    master (outer) case gross weight2.4 kg
    master (outer) case width520 mm
    master (outer) case length445 mm
    master (outer) case height220 mm
    products per master (outer) case10 pc(s)
    jumbo frames supportYes
    resource cdYes
    safetyUL,CB
    reset buttonYes
    quick start guideYes
    jumbo frames9216
    internal memory128 MB
    spanning tree protocolYes
    supported network protocolsIPv4/IPv6
    dc input voltage48 - 57 V
    static routeYes
    vlan supportYes
    firmware upgradeableYes
    system event logYes
    flash memory32 MB
    broadcast storm controlYes
    dhcp featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
    loop protectionYes
    management protocolsSNMP, Web, Telnet, SSH
    console portRJ-45
    din rail mountingYes
    bpdu filtering/protectionYes
    root protectionYes
    remarking priorityY
    Description
    LevelOne IGU-1271. Slēdža tips: Vadīts, Slēdža līmenis: L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 24 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC ievades spriegums: 48 - 57 V
