Ražotājs: SHELLY

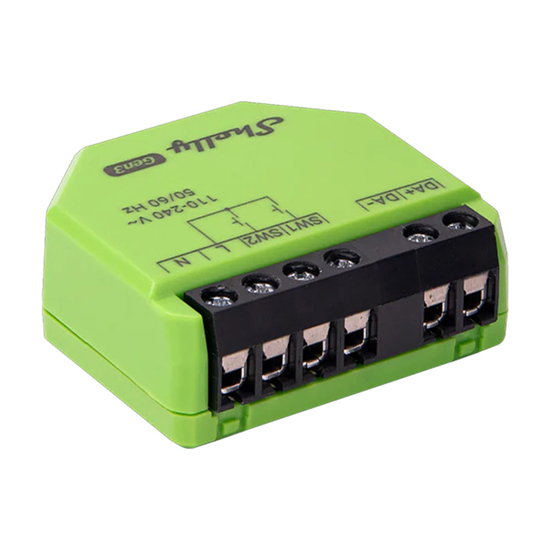

Light dimmer for DALI system Shelly DALI Dimmer Ge

€61,42 ar pvn

Artikuls: ST09563792

Preces kods: DALIGen3

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
		3 - 6 dienās	258	€61,42 ar pvn

Daudzums:

Specifikācijas

Specifikācija

ManufacturerModelDimensionsWeightMax. tightening torque for screw connectorsCable cross sectionLength of stripped wireMountingHousing materialHousing colorOperating temperature rangeWorking environment humidityMax. installation altitudePower supplyPower consumptionNeutral wire requiredBus power supplyBus voltageInternal temperature sensorWi-Fi protocolWi-Fi RF bandMax. Wi-Fi signal strengthWi-Fi rangeBluetooth protocolBluetooth RF bandMax. Bluetooth signal strengthBluetooth rangeProcessorFlash memoryNumber of schedulesWebhooks (URL shares)Scripting supportMQTTEncryption

Description
Description	Light dimmer for DALI system Shelly DALI Dimmer Gen3 The Shelly DALI Dimmer Gen3 is a compact and extremely flexible device for controlling lighting brightness in DALI systems. It operates as a single-master controller that supports luminaires with DALI Part 207 (DT6) and sends broadcast messages to all devices on the bus. It also supports Wi-Fi, Bluetooth and the BLE Gateway and Wi-Fi Range Extender function. It will work perfectly in both residential and commercial spaces - and without the need for an additional hub. Built-in DALI power supply and support for 5 luminaires The device has an integrated 10 mA DALI bus power supply, allowing it to power and control up to 5 DALI luminaires without the need for an external power module. This is a huge convenience during installation - both in new buildings and when retrofitting existing lighting installations. Precise brightness control The DALI Dimmer Gen3 offers advanced dimming capabilities - including minimum and maximum brightness settings, transition duration and button fade rate. With night mode, you can also set a fixed brightness level at specific times. The device also supports timers, weekly schedules and response to a DALI bus failure (turning the light on at 100%). Flexible local control The Shelly DALI Dimmer Gen3 works with classic wall switches and allows flexible lighting control - either with one button or two. So you can easily integrate it into your existing installation. Full integration with the Shelly ecosystem and external systems The dimmer integrates seamlessly with the Shelly Smart Control app, enabling remote control, scenes, schedules and local automations - even without a cloud connection. The device also supports scripting, webhooks, MQTT and local actions, giving you a lot of configuration flexibility. In addition, it supports KNXnet/IP communication, so it can be easily incorporated into advanced KNX installations. Moreover, the dimmer is compatible with popular smart home platforms such as Amazon Alexa, Google Home and SmartThings. What's more, the product belongs to the Gen3 series, featuring Shelly's proprietary ESP32-C3 chip and 8 MB of flash memory. This not only guarantees high performance, but also enables future upgrades to the Matter standard, ensuring compatibility with upcoming smart home solutions. Virtual component support The Shelly DALI Dimmer Gen3 supports the "virtual components" function - new to the Gen3 series. It allows you to create virtual devices in the Shelly Smart Control app and integrate third-party products into the overall Shelly ecosystem, increasing flexibility in scene creation and automation.
Shelly
DALIGen3
42 × 37 × 17 mm
18 g
0.4 Nm
0.5-1.5 mm² / 20 to 16 AWG (solid, twisted and bootlace type sleeves)
5-6 mm
In wall boxes, suspended ceilings
Plastic
Green
From -20°C to 40°C
30-70% RH
2000 m
110-240 V AC ±10% 50/60 Hz
< 2 W
No
Guaranteed 10 mA (up to 5 DALI devices), short-circuit current < 35 mA
Nominal voltage 16 V
Yes
802.11 b/g/n
2401-2495 MHz
< 20 dBm
Up to 30 m indoors, up to 50 m outdoors (depending on conditions)
4.2
2400-2483.5 MHz
< 4 dBm
Up to 10 m indoors, up to 30 m outdoors (depending on conditions)
ESP32-C3 Shelly
8 MB
Up to 20
Up to 20 (up to 5 URLs per webhook)
Yes
Yes
Yes, TLS 1.2
