    Iepriekšējais produktsLindy 1m Cat.6A U/UTP LSZH ...
    Nākamais produktsLindy 1m Cat6 networking ca...
    Ražotājs: LINDY

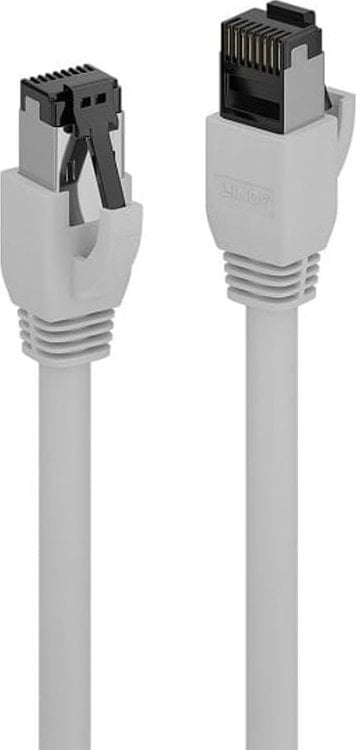

    Lindy 1m Cat.8.1 S/FTP LSZH Cable, Grey


    €21,97 ar pvn

    Artikuls: ST07982564
    Preces kods: 47442
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Krāsa Pelēka
    Vada garums (m.) 7.5 m
    Īpašības RJ-45
    Vada garums (m.) 1.1 - 1.7 m
    Krāsa Zelta
    cable shieldingS/FTP (S-STP)
    gross weight0.04
    height17 mm
    width12 mm
    depth38.5 mm
    cable length1 m
    frequency2000 MHz
    country of originCN
    product colourGrey
    operating temperature (t-t)-10 - 60 °C
    storage temperature (t-t)-20 - 75 °C
    connector 1RJ-45
    connector 2RJ-45
    connector 1 genderMale
    connector 2 genderMale
    package typePolybag
    cable standardCat8.1
    connector contacts platingNickel
    compliance certificatesREACH, RoHS
    jacket materialLow smoke zero halogen (LSZH)
    conductor materialCopper
    awg wire size26
    connector shieldingYes
    connector shield materialAluminium
    connector 1 form factorStraight
    connector 2 form factorStraight
    sustainability complianceYes
    outer diameter7.5 mm
    bend radius (min)6 cm
    net weight0.03
    packaging height19.40
    packaging lenght17.40
    packaging width1.50
    warranty10
    variation of47440
    Description

    Connectors

    • Connector A: RJ45 Male
    • Connector B: RJ45 Male
    • Housing Material: Polycarbonate
    • Connector Plating: Nickel
    • Pin Construction:  Bare Copper
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: 12x38.5x17mm (0.47x1.52x0.67in)

    Cable Construction

    • Length: 1m (3.28ft)
    • Standard: Cat.8.1
    • Colour: Grey
    • Type: Round
    • Jacket Diameter: 7.5mm (0.30in)
    • Jacket Material: LSZH
    • Conductor Material: Bare Copper
    • Conductor Gauge: 26AWG
    • Shielding: AL Foil

    Specifications

    • Supported Bandwidth: 2000MHz
    • Nominal Attenuation: 24dB/30m @2000MHz
    • Minimum Bend Radius: 60mm (2.36in)
    • Operating Temperature: -10°C - 60°C (14°F - 140°F)
    • Storage Temperature: -20°C - 75°C (-4°F - 167°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL

    Purchasing Information

    • No.: 47442
    • EAN: 4002888474429

    This product is also available in other lengths

    • 47440 - 0.3m (0.98ft)
    • 47441 - 0.5m (1.64ft)
    • 47442 - 1m (3.28ft)
    • 47443 - 1.5m (4.92ft)
    • 47444- 2m (6.56ft)
    • 47445 - 3m (9.84ft)
    • 47446 - 5m (16.44ft)



    Specifikācija
    Krāsa Pelēka
    Vada garums (m.) 7.5 m
    Īpašības RJ-45
    Vada garums (m.) 1.1 - 1.7 m
    Krāsa Zelta
    cable shieldingS/FTP (S-STP)
    gross weight0.04
    height17 mm
    width12 mm
    depth38.5 mm
    cable length1 m
    frequency2000 MHz
    country of originCN
    product colourGrey
    operating temperature (t-t)-10 - 60 °C
    storage temperature (t-t)-20 - 75 °C
    connector 1RJ-45
    connector 2RJ-45
    connector 1 genderMale
    connector 2 genderMale
    package typePolybag
    cable standardCat8.1
    connector contacts platingNickel
    compliance certificatesREACH, RoHS
    jacket materialLow smoke zero halogen (LSZH)
    conductor materialCopper
    awg wire size26
    connector shieldingYes
    connector shield materialAluminium
    connector 1 form factorStraight
    connector 2 form factorStraight
    sustainability complianceYes
    outer diameter7.5 mm
    bend radius (min)6 cm
    net weight0.03
    packaging height19.40
    packaging lenght17.40
    packaging width1.50
    warranty10
    variation of47440
    Description

    Connectors

    • Connector A: RJ45 Male
    • Connector B: RJ45 Male
    • Housing Material: Polycarbonate
    • Connector Plating: Nickel
    • Pin Construction:  Bare Copper
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: 12x38.5x17mm (0.47x1.52x0.67in)

    Cable Construction

    • Length: 1m (3.28ft)
    • Standard: Cat.8.1
    • Colour: Grey
    • Type: Round
    • Jacket Diameter: 7.5mm (0.30in)
    • Jacket Material: LSZH
    • Conductor Material: Bare Copper
    • Conductor Gauge: 26AWG
    • Shielding: AL Foil

    Specifications

    • Supported Bandwidth: 2000MHz
    • Nominal Attenuation: 24dB/30m @2000MHz
    • Minimum Bend Radius: 60mm (2.36in)
    • Operating Temperature: -10°C - 60°C (14°F - 140°F)
    • Storage Temperature: -20°C - 75°C (-4°F - 167°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL

    Purchasing Information

    • No.: 47442
    • EAN: 4002888474429

    This product is also available in other lengths

    • 47440 - 0.3m (0.98ft)
    • 47441 - 0.5m (1.64ft)
    • 47442 - 1m (3.28ft)
    • 47443 - 1.5m (4.92ft)
    • 47444- 2m (6.56ft)
    • 47445 - 3m (9.84ft)
    • 47446 - 5m (16.44ft)
