Ražotājs: LINDY

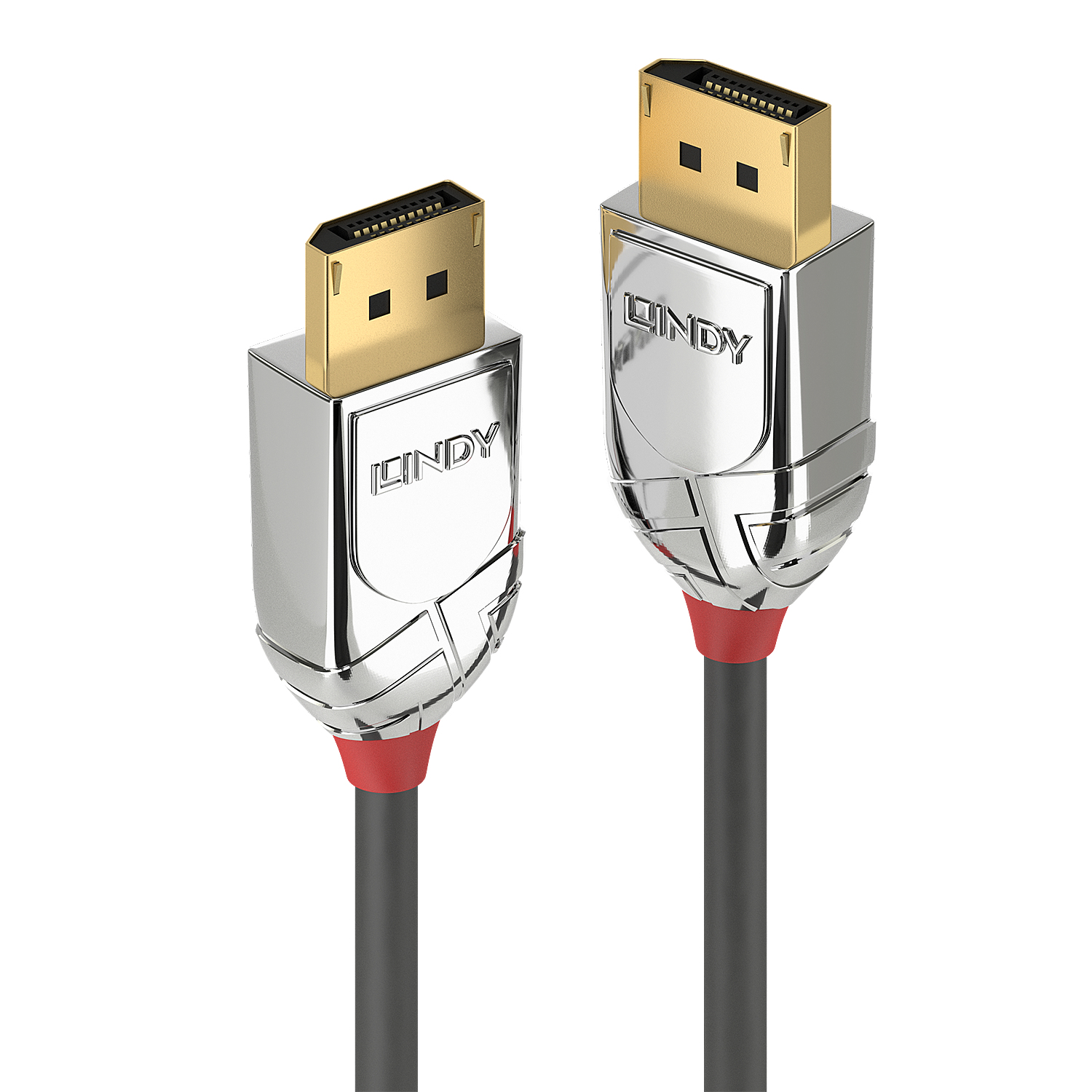

Lindy 3m DisplayPort 1.2 Cable, Cromo Line

€40,99 ar pvn

Artikuls: ST04898040

Preces kods: 36303

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
PL	8 - 15 dienās	33	€40,99 ar pvn
LV	7 - 12 dienās	512	€49,32 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4

Īpašības	Display port
Krāsa	Pelēka
Krāsa	Zelta

Cable length	3 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	4096 x 2160 pixels
Product colour	Chrome, Grey
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
DisplayPort version	1.2
Supported video modes	2160p
Maximum refresh rate	60 Hz
3D	Yes
Cable material	Tinned copper
Cable shielding	Copper
Jacket material	Polyvinyl chloride (PVC)
Connector housing material	Acrylonitrile butadiene styrene (ABS)
AWG wire size	28
Data transfer rate	21.6 Gbit/s
Contact material	Phosphor bronze
Connector material	Gold
Bend radius (min)	7.3 cm
Colour sampling	4:4:4
Cable type	Round cable
Nominal attenuation	300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
Certification	RoHS, REACH, UL
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 85 °C
Sustainability certificates	REACH, RoHS
Cable diameter	7.3 mm
Connector 1 dimensions (WxDxH)	19.7 x 12 x 38.9 mm
Connector 2 dimensions (WxDxH)	19.7 x 12 x 38.9 mm
Package type	Polybag
Manual	Yes
Pallet net height	3.89 cm
Harmonized System (HS) code	84733080
Product or Article Information Sheet available?	Yes
Description
Description	Lindy 3m DisplayPort 1.2 Cable, Cromo Line. Cable length: 3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Sustainability certificates: REACH, RoHS. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 19.7 x 12 x 38.9 mm, Connector 2 dimensions (WxDxH): 19.7 x 12 x 38.9 mm

Description
	Connector 1 DisplayPort \| Connector 2 DisplayPort \| Gold \| Cable length 3 m \| DisplayPort version 1.2 \| Product colour Grey/Chrome \| Cable shielding Copper

cable shielding

Copper

gross weight

0.25

data transfer rate

21.6 Gbit/s

cable length

3 m

cable material

Tinned copper

cable type

Round cable

country of origin

product colour

Chrome, Grey

operating temperature (t-t)

-20 - 80 °C

storage temperature (t-t)

-25 - 85 °C

certification

RoHS, REACH, UL

connector 1

DisplayPort

connector 2

DisplayPort

connector 1 gender

Male

connector 2 gender

Male

harmonized system (hs) code

84733080

package type

Polybag

connector contacts plating

Gold

compliance certificates

REACH, RoHS

manual

Yes

jacket material

Polyvinyl chloride (PVC)

awg wire size

connector 1 form factor

Straight

connector 2 form factor

Straight

maximum resolution

4096 x 2160 pixels

displayport version

1.2

maximum refresh rate

60 Hz

Yes

supported video modes

2160p

cable diameter

7.3 mm

bend radius (min)

7.3 cm

connector housing material

Acrylonitrile butadiene styrene (ABS)

connector 1 dimensions (wxdxh)

19.7 x 12 x 38.9 mm

connector 2 dimensions (wxdxh)

19.7 x 12 x 38.9 mm

connector material

Gold

nominal attenuation

300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB

contact material

Phosphor bronze

colour sampling

4:4:4

net weight

0.19

pallet net height

3.89 cm

product or article information sheet available?

Yes

packaging height

25.30

packaging lenght

23.30

packaging width

3.00

warranty

tech data sheets

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f6/67/97/62/629767f6d0ebe20d37a65f86/36303_TDS_v1.pdf

ce doc

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f76/CE_DoC_DE_36300_36314.pdf

variation of

36300

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f76/CE_DoC_DE_36300_36314.pdf

Description

Connectors

Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: Chrome Plated ABS
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 15?m
Dimensions (approx.) WxDxH: 20.5x42.5x12.5mm (0.81x1.67x0.49in)

Cable Construction

Length: 3m (9.84ft)
Standard: DisplayPort 1.2
Colour: Grey
Type: Round
Jacket Diameter: 7.3mm (0.29in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG
Shielding: Copper Braid 85%

Specifications

Supported Bandwidth: 21.6 Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
Minimum Bend Radius: 73mm (2.87in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS, REACH, UL

Purchasing Information

No. 36303
EAN: 4002888363037

This product is also available in other lengths

36300 - 0.5m (1.64ft)
36301 - 1m (3.28ft)
36302 - 2m (6.56ft)
36304 - 5m (16.40ft)

CE Doc: CE_DoC_DE_36300_36314.pdf
Tech Data Sheets: 36303_TDS_v1.pdf
