    Iepriekšējais produktsLindy 5m USB 3.2 Type A Cab...
    Nākamais produktsLindy 5m USB Type C to HDMI...
    Ražotājs: LINDY

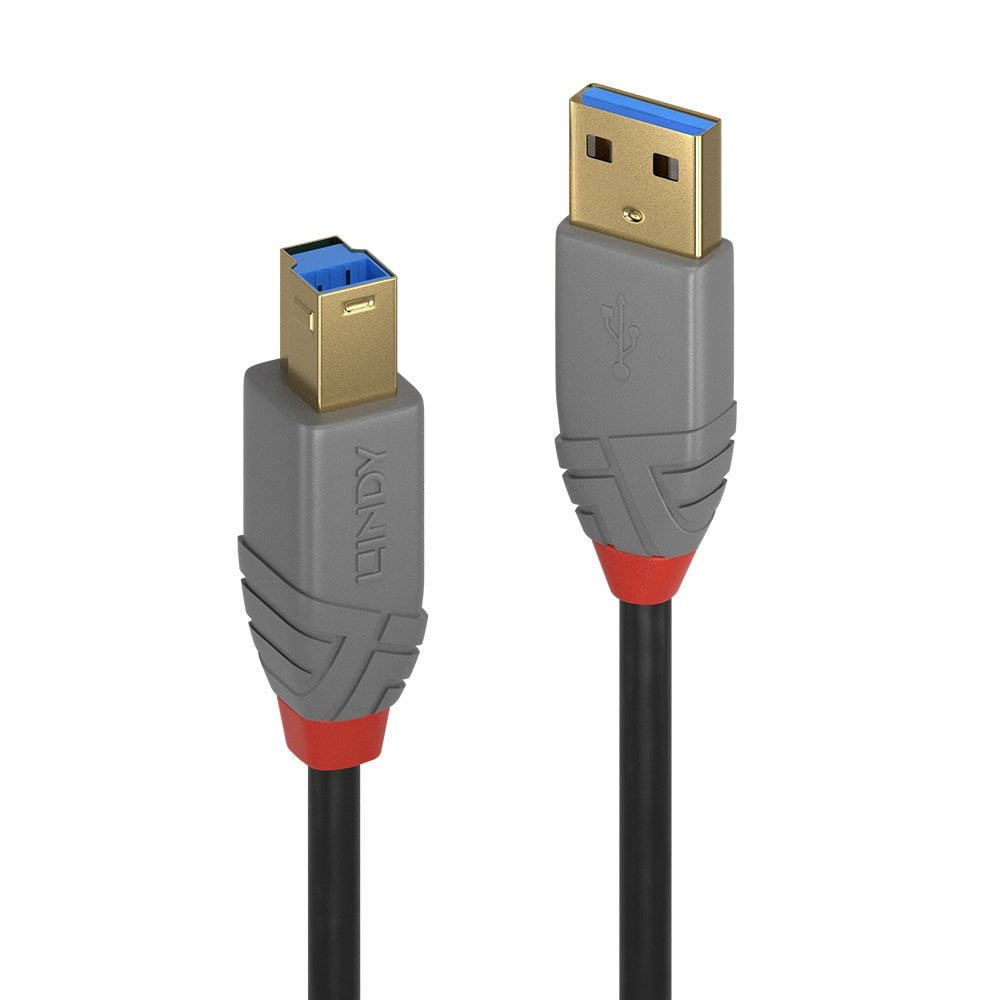

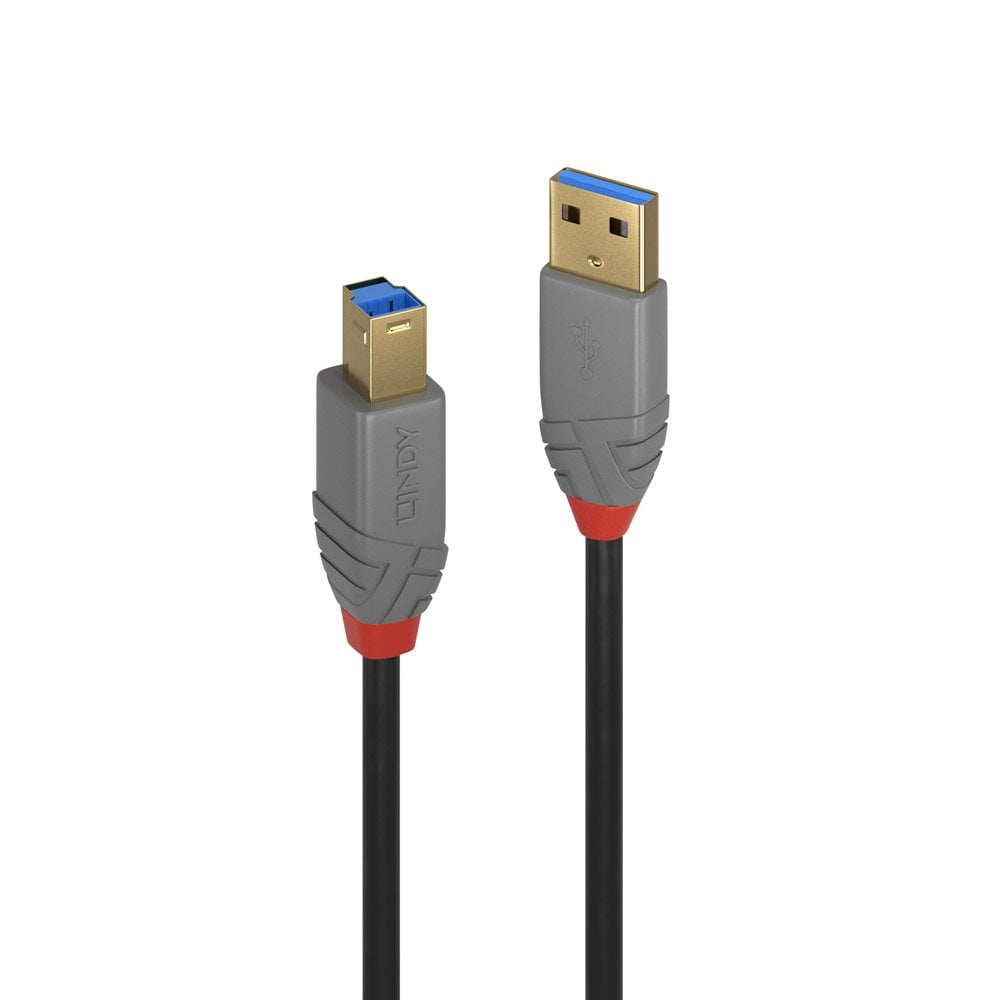

    Lindy 5m USB 3.2 Type A to B Cable, Anthra Line


    €17,22 ar pvn

    Artikuls: ST05044457
    Preces kods: 36744
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Krāsa Zelta
    Krāsa Melna
    Īpašības USB
    Īpašības USB 3.0
    Cable length5 m
    USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
    Connector 1USB A
    Connector 2USB B
    Connector 1 genderMale
    Connector 2 genderMale
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    AWG wire size26/28
    Connector materialGold
    Contact materialCopper
    Connector contacts platingGold
    Cable jacket materialPolyvinyl chloride (PVC)
    Conductor materialTinned copper
    Connector shieldingYes
    Connector shield materialAluminium
    Connector housing materialPolyvinyl chloride (PVC)
    Maximum data transfer rate5000 Mbit/s
    Cable typeRound cable
    Nominal attenuation0.5-5m: 0.5MHz-7.5GHz25DB
    CertificationRoHS, REACH, UL
    Cable diameter5.5 mm
    Bend radius (min)4.8 cm
    Connector 1 dimensions (WxDxH)12 x 4.5 x 36 mm
    Connector 2 dimensions (WxDxH)6.6 x 7.3 x 34.4 mm
    Quantity per pack1 pc(s)
    Package typePolybag
    Operating temperature (T-T)0 - 60 °C
    Storage temperature (T-T)0 - 60 °C
    Harmonized System (HS) code84733080
    Description
    Lindy 5m USB 3.2 Type A to B Cable, Anthra Line. Cable length: 5 m, Connector 1: USB A, Connector 2: USB B, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5000 Mbit/s, Connector contacts plating: Gold, Product colour: Black
    Description
    5m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line | Cable length 5 m | Ver. USB 3.2 Gen 1 (3.1 Gen 1) | Connector 1 USB A | Connector 2 USB B | Connector 1 gender Male | Connector 2 gender Male | Cable jacket material Polyvinyl chloride (PVC) | Maximum data transfer rate 5 Gbit/s | Maximum data transfer rate 5000 Mbit/s | Colour Black | Operating temperature (T-T) 0 - 60 °C
    gross weight0.21
    maximum data transfer rate5 Gbit/s
    cable length5 m
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)0 - 60 °C
    storage temperature (t-t)0 - 60 °C
    certificationRoHS, REACH, UL
    connector 1USB A
    connector 2USB B
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    package typePolybag
    connector contacts platingGold
    conductor materialTinned copper
    awg wire size26/28
    connector shieldingYes
    connector shield materialAluminium
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    cable diameter5.5 mm
    bend radius (min)4.8 cm
    connector housing materialPolyvinyl chloride (PVC)
    connector 1 dimensions (wxdxh)12 x 4.5 x 36 mm
    connector 2 dimensions (wxdxh)6.6 x 7.3 x 34.4 mm
    connector materialGold
    nominal attenuation0.5-5m: 0.5MHz-7.5GHz25DB
    contact materialCopper
    net weight0.15
    packaging height19.40
    packaging lenght17.40
    packaging width3.00
    warranty10
    variation of36740
    Description

    Connectors

    • Connector A: USB 3.2 Type A Male
    • Connector B: USB 3.2 Type B Male
    • Housing Material: PVC
    • Shielding in head shell: -
    • Connector Plating: Gold
    • Pin Construction: Brass
    • Pin Plating: Gold
    • Dimensions (approx.) WxDxH:
      • A: 15.5x35x7.8mm (0.61x1.38x0.31in)
      • B: 12.2x35x13.5mm (0.48x1.38x0.53in)

    Cable Construction

    • Length: 5m (16.40ft)
    • Standard: USB 3.2 Gen 1 (USB 3.1 Gen 1, USB 3.0)
    • Power Delivery: -
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 5.5mm (0.22in)
    • Jacket Material: PVC
    • Conductor Material: Tinned Copper
    • Conductor Gauge Power: 24AWG
    • Conductor Gauge Data: 28AWG
    • Shielding: Aluminium Magnesium Braid 80%

    Specifications

    • Supported Bandwidth: 5Gbps
    • Maximum Resolution: -
    • Nominal Attenuation: 0.5MHz - 7.5GHz < 25dB
    • Minimum Bend Radius: 48mm (1.89in)
    • Operating Temperature: 0°C - 40°C (32°F - 104°F)
    • Storage Temperature: 0°C - 70°C (32°F - 158°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, California Proposition 65 & UL

    Purchasing Information

    • No. 36744
    • EAN: 4002888367448

    This product is also available in other lengths

    • 36740 - 0.5m (1.64ft)
    • 36741 - 1m (3.28ft)
    • 36742 - 2m (6.56ft)
    • 36743 - 3m (9.84ft)
    • 36744 - 5m (16.40ft)


    Specifikācija
    Krāsa Zelta
    Krāsa Melna
    Īpašības USB
    Īpašības USB 3.0
    Cable length5 m
    USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
    Connector 1USB A
    Connector 2USB B
    Connector 1 genderMale
    Connector 2 genderMale
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    AWG wire size26/28
    Connector materialGold
    Contact materialCopper
    Connector contacts platingGold
    Cable jacket materialPolyvinyl chloride (PVC)
    Conductor materialTinned copper
    Connector shieldingYes
    Connector shield materialAluminium
    Connector housing materialPolyvinyl chloride (PVC)
    Maximum data transfer rate5000 Mbit/s
    Cable typeRound cable
    Nominal attenuation0.5-5m: 0.5MHz-7.5GHz25DB
    CertificationRoHS, REACH, UL
    Cable diameter5.5 mm
    Bend radius (min)4.8 cm
    Connector 1 dimensions (WxDxH)12 x 4.5 x 36 mm
    Connector 2 dimensions (WxDxH)6.6 x 7.3 x 34.4 mm
    Quantity per pack1 pc(s)
    Package typePolybag
    Operating temperature (T-T)0 - 60 °C
    Storage temperature (T-T)0 - 60 °C
    Harmonized System (HS) code84733080
    Description
    Lindy 5m USB 3.2 Type A to B Cable, Anthra Line. Cable length: 5 m, Connector 1: USB A, Connector 2: USB B, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5000 Mbit/s, Connector contacts plating: Gold, Product colour: Black
    Description
    5m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line | Cable length 5 m | Ver. USB 3.2 Gen 1 (3.1 Gen 1) | Connector 1 USB A | Connector 2 USB B | Connector 1 gender Male | Connector 2 gender Male | Cable jacket material Polyvinyl chloride (PVC) | Maximum data transfer rate 5 Gbit/s | Maximum data transfer rate 5000 Mbit/s | Colour Black | Operating temperature (T-T) 0 - 60 °C
    gross weight0.21
    maximum data transfer rate5 Gbit/s
    cable length5 m
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)0 - 60 °C
    storage temperature (t-t)0 - 60 °C
    certificationRoHS, REACH, UL
    connector 1USB A
    connector 2USB B
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    package typePolybag
    connector contacts platingGold
    conductor materialTinned copper
    awg wire size26/28
    connector shieldingYes
    connector shield materialAluminium
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    cable diameter5.5 mm
    bend radius (min)4.8 cm
    connector housing materialPolyvinyl chloride (PVC)
    connector 1 dimensions (wxdxh)12 x 4.5 x 36 mm
    connector 2 dimensions (wxdxh)6.6 x 7.3 x 34.4 mm
    connector materialGold
    nominal attenuation0.5-5m: 0.5MHz-7.5GHz25DB
    contact materialCopper
    net weight0.15
    packaging height19.40
    packaging lenght17.40
    packaging width3.00
    warranty10
    variation of36740
    Description

    Connectors

    • Connector A: USB 3.2 Type A Male
    • Connector B: USB 3.2 Type B Male
    • Housing Material: PVC
    • Shielding in head shell: -
    • Connector Plating: Gold
    • Pin Construction: Brass
    • Pin Plating: Gold
    • Dimensions (approx.) WxDxH:
      • A: 15.5x35x7.8mm (0.61x1.38x0.31in)
      • B: 12.2x35x13.5mm (0.48x1.38x0.53in)

    Cable Construction

    • Length: 5m (16.40ft)
    • Standard: USB 3.2 Gen 1 (USB 3.1 Gen 1, USB 3.0)
    • Power Delivery: -
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 5.5mm (0.22in)
    • Jacket Material: PVC
    • Conductor Material: Tinned Copper
    • Conductor Gauge Power: 24AWG
    • Conductor Gauge Data: 28AWG
    • Shielding: Aluminium Magnesium Braid 80%

    Specifications

    • Supported Bandwidth: 5Gbps
    • Maximum Resolution: -
    • Nominal Attenuation: 0.5MHz - 7.5GHz < 25dB
    • Minimum Bend Radius: 48mm (1.89in)
    • Operating Temperature: 0°C - 40°C (32°F - 104°F)
    • Storage Temperature: 0°C - 70°C (32°F - 158°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, California Proposition 65 & UL

    Purchasing Information

    • No. 36744
    • EAN: 4002888367448

    This product is also available in other lengths

    • 36740 - 0.5m (1.64ft)
    • 36741 - 1m (3.28ft)
    • 36742 - 2m (6.56ft)
    • 36743 - 3m (9.84ft)
    • 36744 - 5m (16.40ft)
