    Iepriekšējais produktsLindy DisplayPort to HDMI A...
    Nākamais produktsLindy DisplayPort to VGA Ac...
    Ražotājs: LINDY

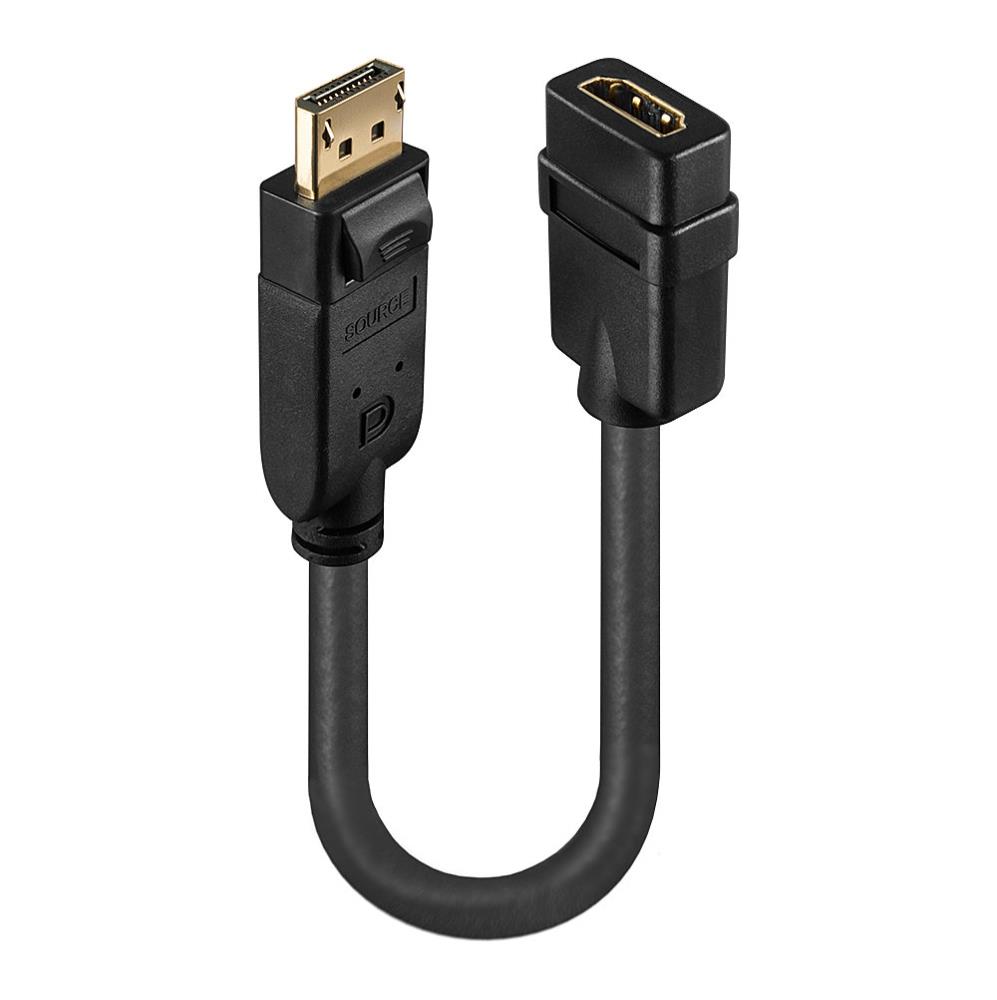

    Lindy DisplayPort to HDMI Passive Converter


    €9,97 ar pvn

    Artikuls: ST04867511
    Preces kods: 41005
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Īpašības HDMI
    Īpašības Display port
    Krāsa Melna
    Cable length0.15 m
    Connector 1DisplayPort
    Connector 2HDMI
    Connector 1 genderMale
    Connector 2 genderFemale
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    HDMI version1.3a
    HDCPYes
    HDCP version1.4
    DisplayPort version1.1
    Maximum resolution1920 x 1080 pixels
    Supported graphics resolutions1920 x 1080 (HD 1080)
    Data transfer rate4.45 Gbit/s
    Bend radius (min)6.5 cm
    Product colourBlack
    ChipsetNXP PTN3361
    Jacket materialPolyvinyl chloride (PVC)
    Connector housing materialThermoplastic elastomer (TPE)
    CertificationCE, UKCA, FCC, RoHS, REACH
    Operating temperature (T-T)-20 - 80 °C
    Storage temperature (T-T)-20 - 70 °C
    Operating relative humidity (H-H)20 - 90%
    Cable diameter6.5 mm
    Connector 1 dimensions (WxDxH)21.9 x 40 x 11.4 mm
    Connector 2 dimensions (WxDxH)20 x 36 x 11 mm
    Weight36 g
    Quantity per pack1 pc(s)
    Package width160 mm
    Package depth20 mm
    Package height160 mm
    Package typePolybag
    Package weight44 g
    ManualYes
    Harmonized System (HS) code84733080
    Description
    Lindy DisplayPort to HDMI Passive Converter. Cable length: 0.15 m, Connector 1: DisplayPort, Connector 2: HDMI. Cable diameter: 6.5 mm, Connector 1 dimensions (WxDxH): 21.9 x 40 x 11.4 mm, Connector 2 dimensions (WxDxH): 20 x 36 x 11 mm. Quantity per pack: 1 pc(s), Package width: 160 mm, Package depth: 20 mm
    Description
    Product Type Adapter | Colour Black
    chipsetNXP PTN3361
    hdcpYes
    weight36 g
    gross weight0.04
    data transfer rate4.45 Gbit/s
    cable length0.15 m
    country of originCN
    product colourBlack
    operating temperature (t-t)-20 - 80 °C
    storage temperature (t-t)-20 - 70 °C
    operating relative humidity (h-h)20 - 90%
    package width160 mm
    package depth20 mm
    package height160 mm
    package weight44 g
    certificationCE, UKCA, FCC, RoHS, REACH
    connector 1DisplayPort
    connector 2HDMI
    connector 1 genderMale
    connector 2 genderFemale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    package typePolybag
    manualYes
    jacket materialPolyvinyl chloride (PVC)
    connector 1 form factorStraight
    connector 2 form factorStraight
    maximum resolution1920 x 1080 pixels
    displayport version1.1
    supported graphics resolutions1920 x 1080 (HD 1080)
    cable diameter6.5 mm
    hdmi version1.3a
    hdcp version1.4
    bend radius (min)6.5 cm
    connector housing materialThermoplastic elastomer (TPE)
    connector 1 dimensions (wxdxh)21.9 x 40 x 11.4 mm
    connector 2 dimensions (wxdxh)20 x 36 x 11 mm
    net weight0.04
    packaging height19.40
    packaging lenght17.40
    packaging width1.00
    warranty2
    tech data sheetshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f4/67/97/62/629767f4d0ebe20d37a65f2d/41005_TDS_v1.pdf
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c6/a0/c7/64/64c7a0c606dc2df550b17d50/CE_41004-06_V2_2023.pdf
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c6/a0/c7/64/64c7a0c606dc2df550b17d50/CE_41004-06_V2_2023.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/70/55/97/62/62975570a7fecca6d5a65f30/CE_DoC_DE_41004_41006.pdf
    manualshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/99/67/97/62/62976799999c8d635dc13eb8/LINDY_41005_MAN_1220.pdf
    Description

    Specifications

    • AV Interface: DisplayPort to HDMI®
    • Interface Standard: DisplayPort 1.1 / HDMI® 1.3a
    • Supported Bandwidth: 4.45Gbps
    • Maximum Input Resolution: 1920x1080@60Hz
    • Maximum  Output Resolution: 1920x1080@60Hz
    • Chipset: NXP PTN3361
    • HDCP Support: HDCP 1.4
    • Supported Audio: Pass-through
    • Separate Audio Ports: -
    • Special Features: -

    Connectors

    • Input: DisplayPort Male
    • Output: HDMI® Type A Female

    Physical Properties

    • Dimensions (approx.) WxDxH:
      • 21,9x40x11,4mm (0.86x1.57x0.45in)
      • 20x36x11mm (0.79x1.42x0.43in)/DP
    • Cable Length: 150mm (5.91in)
    • Housing Material: TPE
    • Jacket Material: PVC
    • Jacket Diameter: 6.5mm (0.26in)
    • Minimum Bend Radius: 65mm (2.56in)
    • Net Weight: 0.036kg (0.08lb)
    • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
    • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
    • Humidity: 20 - 90% RH (non-condensing)
    • Colour: Black

    Miscellaneous

    • Packaging Type: Polybag
    • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
    • Gross Weight: 0.044kg (0.1lb)
    • Warranty (Years): 2
    • Product Compliance: CE, FCC, RoHS & REACH

    Package Contents

    • DisplayPort to HDMI® Converter

    Purchasing Information

    • No.: 41005
    • EAN: 4002888410052


    CE Doc: CE_DoC_DE_41004_41006.pdf
    Tech Data Sheets: 41005_TDS_v1.pdf
    Manuals: LINDY_41005_MAN_1220.pdf
