    Iepriekšējais produktsLindy 7.5m Cat.6A S/FTP LSZ...
    Nākamais produktsLindy 7.5m CrossOver Cat.6 ...
    Ražotājs: LINDY

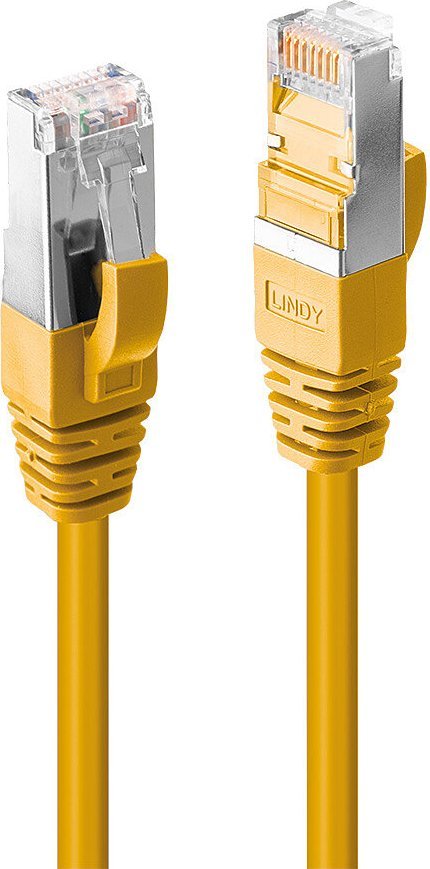

    Lindy 7.5m Cat.6A S/FTP LSZH Cable, Yellow


    €19,55 ar pvn

    Artikuls: ST09550451
    Preces kods: 47867
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Krāsa Dzeltena
    Krāsa Zelta
    Vada garums (m.) 7.5 m
    Īpašības RJ-45
    Vada garums (m.) 1.1 - 1.7 m
    cable shieldingS/FTP (S-STP)
    gross weight0.25
    height8.3 mm
    width11.6 mm
    depth21.5 mm
    cable length7.5 m
    frequency500 MHz
    country of originCN
    product colourYellow
    operating temperature (t-t)-10 - 60 °C
    storage temperature (t-t)-20 - 75 °C
    connector 1RJ-45
    connector 2RJ-45
    connector 1 genderMale
    connector 2 genderMale
    package typePolybag
    cable standardCat6a
    connector contacts platingGold
    compliance certificatesREACH, RoHS
    jacket materialLow smoke zero halogen (LSZH)
    conductor materialCopper
    awg wire size27
    connector shieldingYes
    connector shield materialAluminium
    cable shapeRound
    connector 1 form factorStraight
    connector 2 form factorStraight
    sustainability complianceYes
    outer diameter6 mm
    bend radius (min)7.2 cm
    connector housing materialPolycarbonate (PC)
    net weight0.26
    packaging height25.90
    packaging lenght23.60
    packaging width2.00
    warranty10
    variation of47860
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/dd/1c/24/64/64241cddc9ba8be59c19d90d/CE_47860-71.pdf
    Description

    Connectors

    • Connector A: RJ45 Male
    • Connector B: RJ45 Male
    • Housing Material: Polycarbonate
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)

    Cable Construction

    • Length: 7.5m (24.61ft)
    • Colour: Yellow
    • Type: Cat.6A
    • Jacket Diameter: 6.0mm (0.24in)
    • Jacket Material: LSZH
    • Conductor Material: Copper
    • Conductor Gauge: 27AWG
    • Shielding: Aluminium Braid

    Specifications

    • Supported Bandwidth: 500MHz
    • Nominal Attenuation: 49.3dB/100m @ 500MHz
    • Minimum Bend Radius: 72mm (2.84in)
    • Operating Temperature: -10°C - 60°C (14F - 140°F)
    • Storage Temperature: -20°C - 75°C (-4F - 167°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH

    Purchasing Information

    • No.: 47867
    • EAN: 4002888478670

    This product is also available in other lengths:

    • 47860 - 0.3m (0.98ft)
    • 47861 - 0.5m (1.64ft)
    • 47862 - 1m (3.28ft)
    • 47863 - 1.5m (4.92ft)
    • 47864 - 2m (6.56ft)
    • 47865 - 3m (9.84ft)
    • 47866 - 5m (16.44ft)
    • 47867 - 7.5m (24.61ft)
    • 47868 - 10m (32.81ft)
    • 47869 - 15m (49.21ft)
    • 47870 - 20m (65.62ft)
    • 47871 - 30m (98.43ft)


    CE Doc: CE_47860-71.pdf
