    Iepriekšējais produktsLindy 5m USB 3.1 Gen 2 C/C ...
    Nākamais produktsLindy 5m USB 3.2 Type A Cab...
    Ražotājs: LINDY

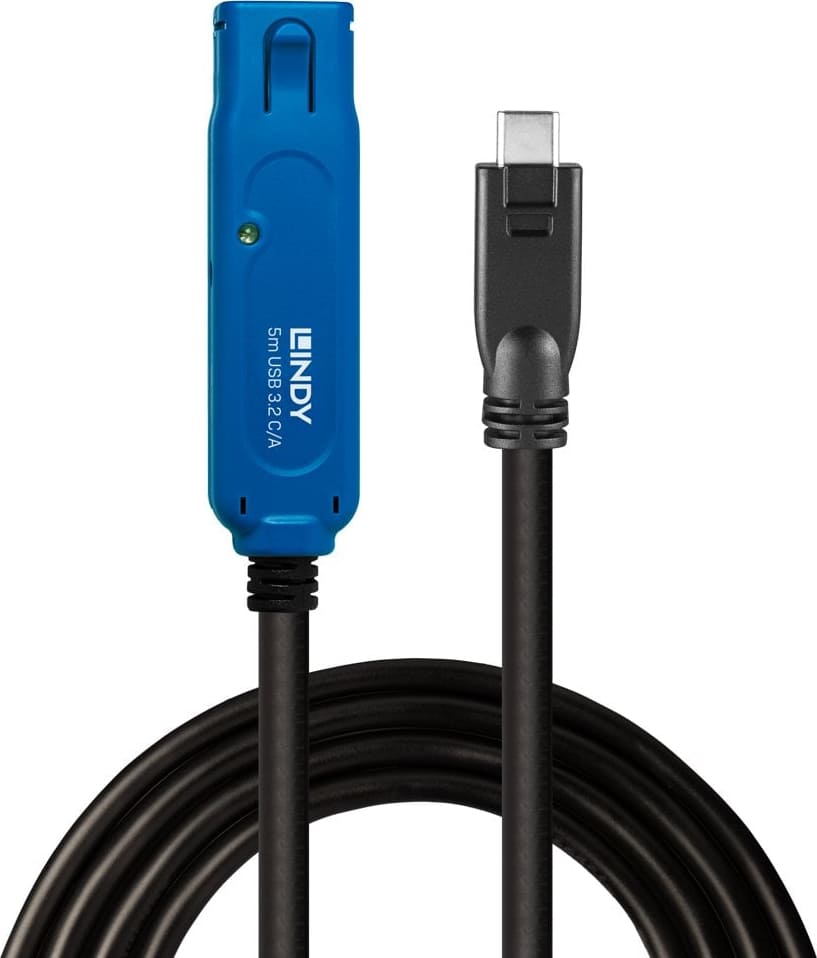

    Lindy 5m USB 3.2 5Gbps C/A Active Extension Pro


    €77,37 ar pvn

    Artikuls: ST09559383
    Preces kods: 43380
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Krāsa Melna
    Īpašības USB
    Īpašības USB Type-C
    Krāsa Zelta
    weight220 g
    cable length5 m
    cable typeRound cable
    country of originTW
    product colourBlack
    operating temperature (t-t)0 - 50 °C
    storage temperature (t-t)-20 - 60 °C
    package width230 mm
    package depth198 mm
    package height63 mm
    package weight420 g
    certificationCalifornia Proposition 65
    connector 1USB C
    connector 2USB A
    connector 1 genderMale
    connector 2 genderFemale
    quantity per pack1 pc(s)
    package typeCarton
    connector contacts platingGold
    compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS
    manualYes
    conductor materialTinned copper
    awg wire size28/28/24
    connector shieldingYes
    connector shield materialAluminium
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    sustainability complianceYes
    warranty period2 year(s)
    cable diameter5 mm
    bend radius (min)5.5 cm
    connector housing materialPlastic
    connector 1 dimensions (wxdxh)12.4 x 39.7 x 9 mm
    connector 2 dimensions (wxdxh)20 x 80 x 13 mm
    connector materialNickel
    nominal attenuation0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.67dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB
    contact materialBrass
    power note2.5/0.7mm DC
    transmission mediumTwisted pair
    packaging height6.5
    packaging lenght23.5
    packaging width20.0
    warranty2.0
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f5/74/da/63/63da74f59050d56a4d950b56/CE_43380-1.pdf
    Description
    Connectors
    • Connector A: USB Type C Male
    • Connector B: USB Type A Female
    • Power: 2.5/0.7mm DC Connector
    • Housing Material: Plastic
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold Flash
    • Dimensions (approx.) WxDxH:
      • USB C Male: 12.4x39.7x9mm (0.49x1.56x0.35in)
      • USB A Female: 20x80x13mm (0.79x3.15x0.51in)
    Cable Construction
    • Length: 5m (16.4ft)
    • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 5mm +/- 0.15mm (0.22in +/- 0.01in)
    • Jacket Material: Half matt PVC low toxic
    • Conductor Material: Tinned Copper
    • Conductor Gauge: 28/28/24AWG
    • Shielding: AL Mylar and braid
    Specifications
    • Supported Bandwidth: 5 Gbps
    • Nominal Attenuation:
      • 0.064MHz - <0.08dB
      • 0.256MHz - <0.11dB
      • 0.512MHz - <0.13dB
      • 0.772MHz - <0.15dB
      • 1.0MHz - <0.20dB
      • 4MHz - <0.39dB
      • 8MHz - <0.57dB
      • 12MHz - <0.67dB
      • 24MHz - <0.95dB
      • 48MHz - <1.35dB
      • 96MHz - <1.90dB
      • 200MHz - <3.20dB
      • 400MHz - <5.80dB
    • Minimum Bend Radius: 55mm (2.17in)
    • Maximum Tensile Load: -
    • Operating Temperature: 0°C - 50°C (32°F - 122°F)
    • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
    • Transmission Medium: Twisted Pair
    • Transmission Technology: USB 3.2 / 3.1 Gen 1 /  3.0

    Miscellaneous
    • Packaging Type: Carton Box
    • Packaging Dimensions: 235x200x65mm (9.25x7.87x2.56in)
    • Net Weight: 0.25kg (0.55lb)
    • Gross Weight: 0.37kg (0.82lb)
    • Warranty (Years): 2
    • Certificated: CE, FCC, RoHS, REACH & California Proposition 65, TAA
    Packaging Content
    • USB 3.2 C/A Active Extension Pro 5m
    • Power Adapter Cable Nr. 70265
    • Lindy Manual
    Purchasing Information
    • No.: 43380
    • EAN: 4002888433808
    This product is also available in other lengths
    • 43381 - 8m (26.25ft)

    Specifikācija
    Krāsa Melna
    Īpašības USB
    Īpašības USB Type-C
    Krāsa Zelta
    weight220 g
    cable length5 m
    cable typeRound cable
    country of originTW
    product colourBlack
    operating temperature (t-t)0 - 50 °C
    storage temperature (t-t)-20 - 60 °C
    package width230 mm
    package depth198 mm
    package height63 mm
    package weight420 g
    certificationCalifornia Proposition 65
    connector 1USB C
    connector 2USB A
    connector 1 genderMale
    connector 2 genderFemale
    quantity per pack1 pc(s)
    package typeCarton
    connector contacts platingGold
    compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS
    manualYes
    conductor materialTinned copper
    awg wire size28/28/24
    connector shieldingYes
    connector shield materialAluminium
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    sustainability complianceYes
    warranty period2 year(s)
    cable diameter5 mm
    bend radius (min)5.5 cm
    connector housing materialPlastic
    connector 1 dimensions (wxdxh)12.4 x 39.7 x 9 mm
    connector 2 dimensions (wxdxh)20 x 80 x 13 mm
    connector materialNickel
    nominal attenuation0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.67dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB
    contact materialBrass
    power note2.5/0.7mm DC
    transmission mediumTwisted pair
    packaging height6.5
    packaging lenght23.5
    packaging width20.0
    warranty2.0
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f5/74/da/63/63da74f59050d56a4d950b56/CE_43380-1.pdf
    Description
    Connectors
    • Connector A: USB Type C Male
    • Connector B: USB Type A Female
    • Power: 2.5/0.7mm DC Connector
    • Housing Material: Plastic
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold Flash
    • Dimensions (approx.) WxDxH:
      • USB C Male: 12.4x39.7x9mm (0.49x1.56x0.35in)
      • USB A Female: 20x80x13mm (0.79x3.15x0.51in)
    Cable Construction
    • Length: 5m (16.4ft)
    • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 5mm +/- 0.15mm (0.22in +/- 0.01in)
    • Jacket Material: Half matt PVC low toxic
    • Conductor Material: Tinned Copper
    • Conductor Gauge: 28/28/24AWG
    • Shielding: AL Mylar and braid
    Specifications
    • Supported Bandwidth: 5 Gbps
    • Nominal Attenuation:
      • 0.064MHz - <0.08dB
      • 0.256MHz - <0.11dB
      • 0.512MHz - <0.13dB
      • 0.772MHz - <0.15dB
      • 1.0MHz - <0.20dB
      • 4MHz - <0.39dB
      • 8MHz - <0.57dB
      • 12MHz - <0.67dB
      • 24MHz - <0.95dB
      • 48MHz - <1.35dB
      • 96MHz - <1.90dB
      • 200MHz - <3.20dB
      • 400MHz - <5.80dB
    • Minimum Bend Radius: 55mm (2.17in)
    • Maximum Tensile Load: -
    • Operating Temperature: 0°C - 50°C (32°F - 122°F)
    • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
    • Transmission Medium: Twisted Pair
    • Transmission Technology: USB 3.2 / 3.1 Gen 1 /  3.0

    Miscellaneous
    • Packaging Type: Carton Box
    • Packaging Dimensions: 235x200x65mm (9.25x7.87x2.56in)
    • Net Weight: 0.25kg (0.55lb)
    • Gross Weight: 0.37kg (0.82lb)
    • Warranty (Years): 2
    • Certificated: CE, FCC, RoHS, REACH & California Proposition 65, TAA
    Packaging Content
    • USB 3.2 C/A Active Extension Pro 5m
    • Power Adapter Cable Nr. 70265
    • Lindy Manual
    Purchasing Information
    • No.: 43380
    • EAN: 4002888433808
    This product is also available in other lengths
    • 43381 - 8m (26.25ft)
