    Ražotājs: LINDY

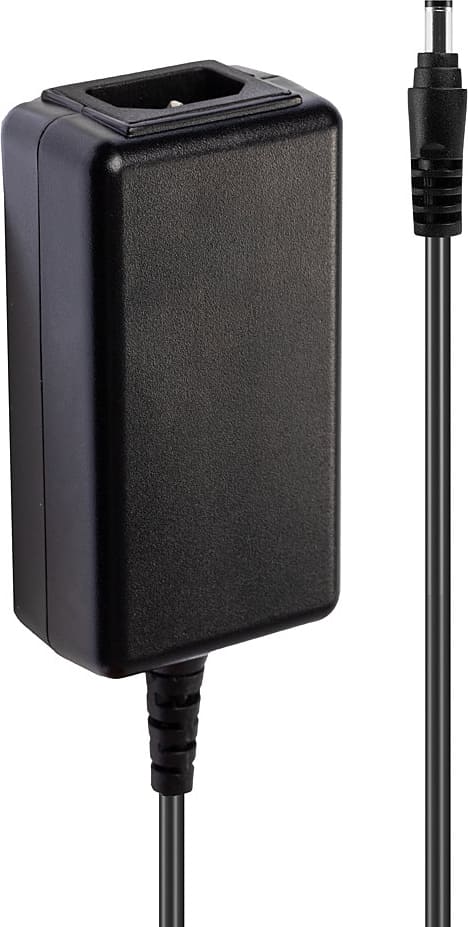

    Lindy 5VDC 4A IEC C14 Power Supply, 5.5/2.5mm


    €39,51 ar pvn

    Artikuls: ST09606018
    Preces kods: 73817
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    weight167 g
    gross weight0.20
    height32.9 mm
    width50.4 mm
    depth85.8 mm
    cable length1.2 m
    input voltage100 - 240 V
    efficiency83%
    country of originCN
    product colourBlack
    operating temperature (t-t)0 - 40 °C
    storage temperature (t-t)-20 - 70 °C
    operating relative humidity (h-h)0 - 75%
    storage relative humidity (h-h)0 - 95%
    package width140 mm
    package depth40 mm
    package height120 mm
    package weight199 g
    certificationEMC LVD ErP UL CCC RCM PSE RoHS REACH California Proposition 65
    harmonized system (hs) code85044095
    purposeUniversal
    quantity per pack1 pc(s)
    housing materialPlastic
    output voltage5 V
    output current4 A
    sustainability complianceYes
    power supply typeIndoor
    output power20 W
    input frequency50/60 Hz
    adjustable output voltageNo
    power current typeAC-to-DC
    net weight0.15
    packaging height12.20
    packaging lenght14.30
    packaging width4.00
    warranty2
    manualshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/95/67/97/62/62976795999c8d635dc13df1/LINDY_73809_11_17_26_MAN_1121.pdf
    Description

    Specifications

    • Input Voltage: 100…240VAC
    • Input AC Frequency: 50…60Hz
    • Output Voltage: 5V
    • Output Voltage Accuracy: ±5%
    • Output Current (max.): 4A
    • Output Power: 20W
    • Average active efficiency: 0.8308
    • Efficiency at low load (10%): 0.7424
    • No-load Power Consumption: 0.1W

    Physical Properties

    • Dimensions (approx.) WxDxH: 50.4x85.8x32.9mm (1.98x3.38x1.3in)
    • DC Cable Length: 1.2m (3.94ft)
    • DC Connector Size: 5.5/2.5mm
    • Housing Material: Plastic
    • Net Weight: 0.167kg (0.37lb)
    • Operating Temperature: 0°C - 40°C (32°F - 104°F)
    • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
    • Operating Humidity: 0 - 75% RH (Non-condensing)
    • Storage Humidity: 0 - 95% RH (Non-condensing)
    • Colour: Black

    Miscellaneous

    • Manufacturer Name: Powertron
    • Commercial Registration No. : 91441900082613400
    • Manufacturer Address: 6F, No.115, Lide St., Zhonghe Dist., New Taipei City 23556,Taiwan
    • Manufacturer Model No.: PA1024-050T1A400
    • Packaging Type: Carton Box
    • Packaging Dimensions: 140x40x120mm (5.51x1.57x4.72in)
    • Gross Weight: 0.199kg (0.44lb)
    • Warranty (Years): 2
    • Product Compliance: EMC, LVD, ErP, UL, CCC ,RCM, PSE, RoHS, REACH, California Proposition 65

    Package Content

    • IEC C14 Power Supply
    • Lindy Manual

    Purchasing Information

    • No.: 73817
    • EAN: 4002888738170



    Manuals: LINDY_73809_11_17_26_MAN_1121.pdf
