Iepriekšējais produktsLindy Cat.5 USB 2.0 Extende...

Nākamais produktsLindy DST-Pro 5K Wired USB ...

Ražotājs: LINDY

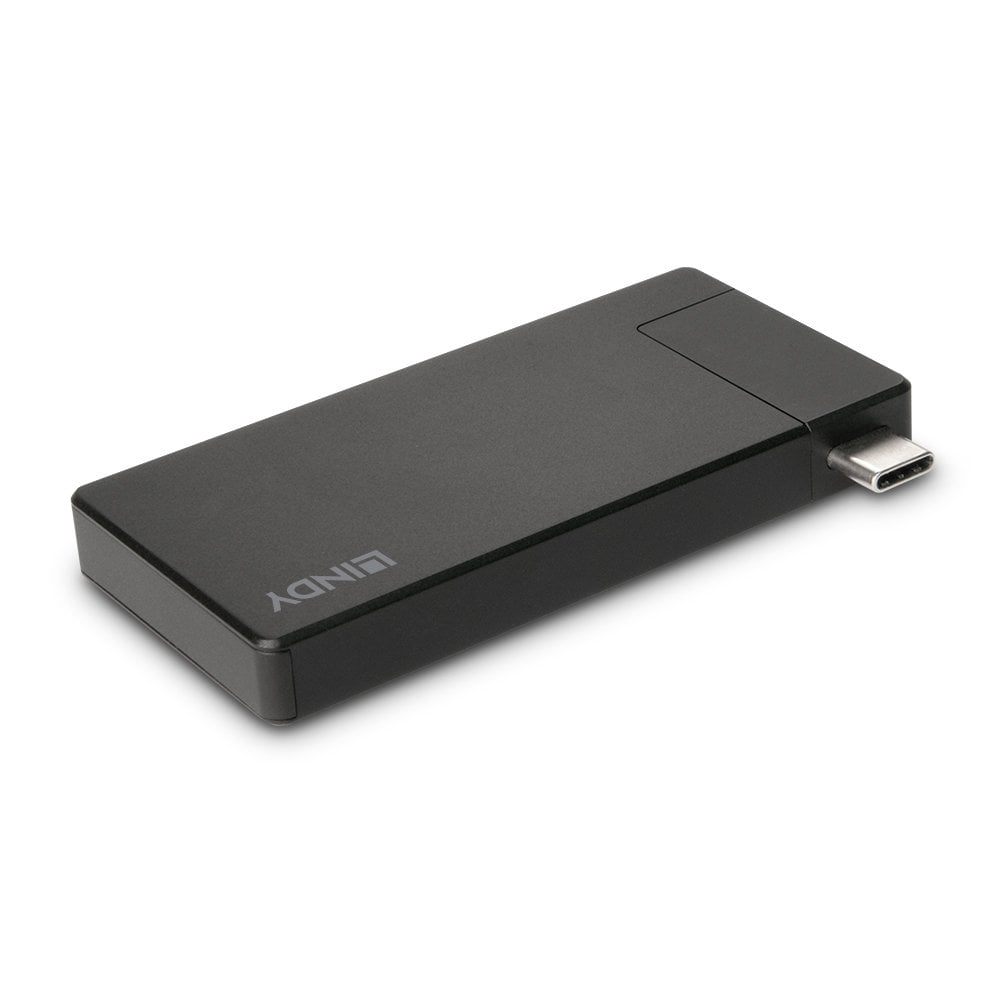

Lindy DST-Micro Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black

€21,63 ar pvn

Artikuls: ST06582709

Preces kods: 43336

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
LV	7 - 12 dienās	7	€21,63 ar pvn
LV	2 - 4 dienās	29	€41,25 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4

Īpašības	USB
Īpašības	USB Type-C
Krāsa	Melna

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	60 W
HDCP	Yes
HDCP version	2.2
USB Type-C DisplayPort Alternate Mode	Yes
Product colour	Black
Maximum digital resolution	3840 x 2160 pixels
Plug and Play	Yes
Housing material	Aluminium
Power source type	USB
Output voltage	20 V
Output current	3 A
Operating temperature (T-T)	-20 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability certificates	CE, REACH, RoHS
Width	75 mm
Depth	38 mm
Height	8.5 mm
Weight	42 g
Quantity per pack	1 pc(s)
Package width	174 mm
Package depth	194 mm
Package weight	60 g
Manual	Yes
Description
Description	Lindy DST-Micro. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Product colour: Black, Maximum digital resolution: 3840 x 2160 pixels, Housing material: Aluminium. Power source type: USB, Output voltage: 20 V, Output current: 3 A. Sustainability certificates: CE, REACH, RoHS. Width: 75 mm, Depth: 38 mm, Height: 8.5 mm

Description
	Colour Black \| Dimensions 75x38.5x8.5mm \| Weight 0.042 kg

plug and play

Yes

hdcp

Yes

weight

42 g

gross weight

0.06

height

8.5 mm

width

75 mm

depth

38 mm

country of origin

product colour

Black

operating temperature (t-t)

-20 - 40 °C

storage temperature (t-t)

-40 - 80 °C

operating relative humidity (h-h)

5 - 90%

storage relative humidity (h-h)

5 - 90%

package width

174 mm

package depth

194 mm

package weight

60 g

quantity per pack

1 pc(s)

compliance certificates

CE, REACH, RoHS

manual

Yes

housing material

Aluminium

connectivity technology

Wired

output voltage

20 V

host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

output current

3 A

power source type

USB

usb power delivery (usb pd)

Yes

usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity

hdmi ports quantity

maximum digital resolution

3840 x 2160 pixels

hdcp version

2.2

net weight

0.04

usb power delivery revision

3.0

usb power delivery up to

60 W

usb type-c displayport alternate mode

Yes

packaging height

19.40

packaging lenght

17.40

packaging width

0.00

warranty

tech data sheets

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f2/67/97/62/629767f2d0ebe20d37a65ec1/43336_TDS_v1.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/3f/46/6e/63/636e463f7841617ce6dc513e/43336_TDS_v2.pdf

ce doc

CE_DoC_DE_43336.pdf

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6d/55/97/62/6297556da7fecca6d5a65eb1/CE_DoC_DE_43336.pdf

manuals

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/7a/8b/69/66/66698b7a5c04c3fb5e40424c/LINDY_43336_MAN_0624.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/ef/72/60/65/656072ef521eef9667192347/LINDY_43336_MAN_0322.pdf

Description

Specifications

AV Interface: USB Type C to HDMI®
Supported Bandwidth: HDMI® 2.0 with 18Gbps
Maximum Input Resolution: 3840x2160@60Hz
Maximum Output Resolution: 3840x2160@60Hz
Chipset: ANX7518
Compatibility: USB Type C/Thunderbolt equipped computers with DisplayPort Alternate Mode support. Windows, macOS, Linux, Android, ChromeOS.
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP 1.4/2.2/2.3
Supported Audio: -
Separate Audio Ports: -
Special Features: DisplayPort Alternate Mode

Connectors

Inputs: 1 x USB Type C (Male)
Outputs: 1 x HDMI® (Female), 1 x USB Type A (Female)
Power: Bus-powered

Physical Properties

Dimensions WxDxH: 75x38.5x8.5mm (2.95x1.52x0.33in)
(Fixed) Cable Length: -
Housing Material: Aluminium
Net Weight: 0.042kg (0.09lb)
Operating Temperature: -20°C - 40°C (-4°F - 104°F)
Storage Temperature: -40°C - 80°C (-40°F - 176°F)
Humidity: 5 - 90% RH (non-condensing)
Power Requirements: -
Colour: Black

Miscellaneous

Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.06kg (0.12lb
Warranty (Years): 2
Product Compliance: CE, FCC, REACH & RoHS, CP65

Package Contents

USB-C Laptop Micro Docking Station
Lindy Manual

Purchasing Information

No.: 43336
EAN: 4002888433365

CE Doc: CE_DoC_DE_43336.pdf
Tech Data Sheets: 43336_TDS_v2.pdf
Manuals: LINDY_43336_MAN_0322.pdf
