    Iepriekšējais produktsLindy 1m IEC C14 to IEC C5 ...
    Nākamais produktsLindy 1m LC/ST fibre optic ...
    Ražotājs: LINDY

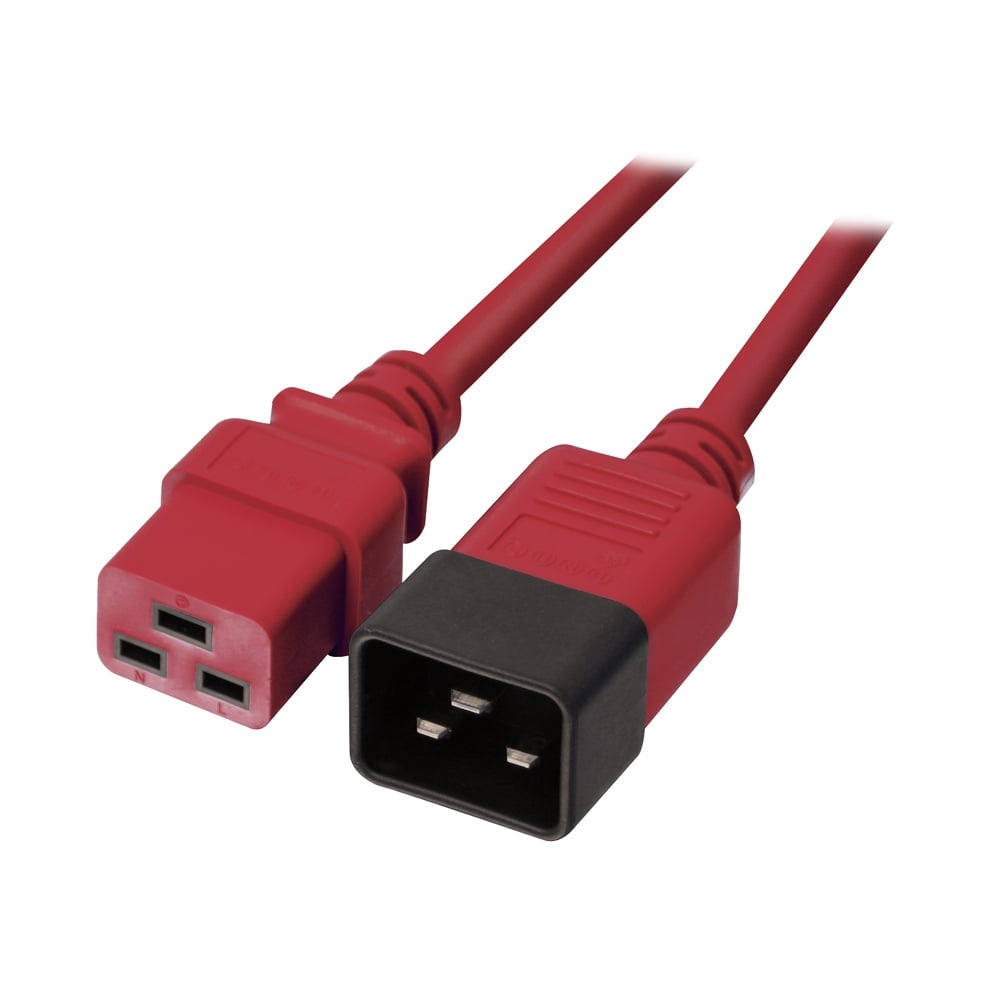

    Lindy 1m IEC C19 to C20 Extension, red


    €17,67 ar pvn

    Artikuls: ST04881815
    Preces kods: 30123
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Vada garums (m.) 1 m
    Krāsa Sarkana
    Vada garums (m.) 1.1 - 1.7 m
    Product colourRed
    Connector 1 genderMale
    Connector 2 genderFemale
    Cable length1 m
    Connector 1C19 coupler
    Connector 2C20 coupler
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    Conductor cross section1.5 mm²
    Plug and PlayYes
    Number of cable cores3
    Core size1.5 mm²
    Input voltage250 V
    Input current16 A
    Operating temperature (T-T)-10 - 70 °C
    Storage temperature (T-T)-25 - 70 °C
    Quantity per pack1 pc(s)
    Harmonized System (HS) code84733080
    Description
    Lindy 1m IEC C19 to C20 Extension, red. Cable length: 1 m, Connector 1: C19 coupler, Connector 2: C20 coupler. Input voltage: 250 V, Input current: 16 A
    Description
    Length 1 m | Connectors IEC C19/IEC C20 | Colour Red
    plug and playYes
    gross weight0.21
    cable length1 m
    input voltage250 V
    country of originCN
    product colourRed
    operating temperature (t-t)-10 - 70 °C
    storage temperature (t-t)-25 - 70 °C
    connector 1C19 coupler
    connector 2C20 coupler
    connector 1 genderMale
    connector 2 genderFemale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    input current16 A
    connector 1 form factorStraight
    connector 2 form factorStraight
    conductor cross section1.5 mm²
    net weight0.20
    number of cable cores3
    core size1.5 mm²
    packaging height19.40
    packaging lenght17.40
    packaging width3.40
    warranty10
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/1f/26/47/66/6647261ffaeed4c1dad92825/CE_30039, 30120 – 30125, 30314, 30320, 30321, 30331, 30332, 30333, 30361, 30363, 30364, 30470 – 3047.pdf
    variations30124,30125
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c0/cc/c0/65/65c0ccc0aab9dc9353741f4e/CE_30120-25.pdf
    Description

    Connectors

    • Connector A: IEC C19
    • Connector B: IEC C20
    • Housing Material:
      • A: PVC & PBT
      • B: PVC
    • Pin Construction:
      • A: Brass
      • B: Phosphor Bronze
    • Pin Plating: Nickel
    • Dimensions (approx.) WxDxH:
      • A: 34x79x25.7mm (1.34x3.11x1.01in)
      • B: 31.3x79x24mm (1.23x3.11x0.94in)

    Cable Construction

    • Length: 1m (3.28ft)
    • Colour: Red
    • Conductor Material: Copper
    • Cable Material: H05VV-F 3G 1.5mm²
    • Number of Wires: 3
    • Wire Gauge: 1.5mm²
    • Jacket Diameter: 8mm (0.31in)
    • Jacket Material: PVC

    Specifications

    • Rated Voltage and Current: 16A/250V
    • Operating Temperature: -10°C - 60°C (14°F - 140°F)
    • Storage Temperature: -20°C - 70°C (-4°F - 158°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: CE, RoHS, REACH, California Proposition 65

    Purchasing Information

    • No.: 30123
    • EAN: 4002888301237

    This product is also available in other lengths

    • 30123 - 1m (3.28ft)
    • 30124 - 2m (6.56ft)
    • 30125 - 3m (9.84ft)



    CE Doc: CE_30120-25.pdf

    Specifikācija
    Vada garums (m.) 1 m
    Krāsa Sarkana
    Vada garums (m.) 1.1 - 1.7 m
    Product colourRed
    Connector 1 genderMale
    Connector 2 genderFemale
    Cable length1 m
    Connector 1C19 coupler
    Connector 2C20 coupler
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    Conductor cross section1.5 mm²
    Plug and PlayYes
    Number of cable cores3
    Core size1.5 mm²
    Input voltage250 V
    Input current16 A
    Operating temperature (T-T)-10 - 70 °C
    Storage temperature (T-T)-25 - 70 °C
    Quantity per pack1 pc(s)
    Harmonized System (HS) code84733080
    Description
    Lindy 1m IEC C19 to C20 Extension, red. Cable length: 1 m, Connector 1: C19 coupler, Connector 2: C20 coupler. Input voltage: 250 V, Input current: 16 A
    Description
    Length 1 m | Connectors IEC C19/IEC C20 | Colour Red
    plug and playYes
    gross weight0.21
    cable length1 m
    input voltage250 V
    country of originCN
    product colourRed
    operating temperature (t-t)-10 - 70 °C
    storage temperature (t-t)-25 - 70 °C
    connector 1C19 coupler
    connector 2C20 coupler
    connector 1 genderMale
    connector 2 genderFemale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    input current16 A
    connector 1 form factorStraight
    connector 2 form factorStraight
    conductor cross section1.5 mm²
    net weight0.20
    number of cable cores3
    core size1.5 mm²
    packaging height19.40
    packaging lenght17.40
    packaging width3.40
    warranty10
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/1f/26/47/66/6647261ffaeed4c1dad92825/CE_30039, 30120 – 30125, 30314, 30320, 30321, 30331, 30332, 30333, 30361, 30363, 30364, 30470 – 3047.pdf
    variations30124,30125
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c0/cc/c0/65/65c0ccc0aab9dc9353741f4e/CE_30120-25.pdf
    Description

    Connectors

    • Connector A: IEC C19
    • Connector B: IEC C20
    • Housing Material:
      • A: PVC & PBT
      • B: PVC
    • Pin Construction:
      • A: Brass
      • B: Phosphor Bronze
    • Pin Plating: Nickel
    • Dimensions (approx.) WxDxH:
      • A: 34x79x25.7mm (1.34x3.11x1.01in)
      • B: 31.3x79x24mm (1.23x3.11x0.94in)

    Cable Construction

    • Length: 1m (3.28ft)
    • Colour: Red
    • Conductor Material: Copper
    • Cable Material: H05VV-F 3G 1.5mm²
    • Number of Wires: 3
    • Wire Gauge: 1.5mm²
    • Jacket Diameter: 8mm (0.31in)
    • Jacket Material: PVC

    Specifications

    • Rated Voltage and Current: 16A/250V
    • Operating Temperature: -10°C - 60°C (14°F - 140°F)
    • Storage Temperature: -20°C - 70°C (-4°F - 158°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: CE, RoHS, REACH, California Proposition 65

    Purchasing Information

    • No.: 30123
    • EAN: 4002888301237

    This product is also available in other lengths

    • 30123 - 1m (3.28ft)
    • 30124 - 2m (6.56ft)
    • 30125 - 3m (9.84ft)



    CE Doc: CE_30120-25.pdf
