Ražotājs: LINDY

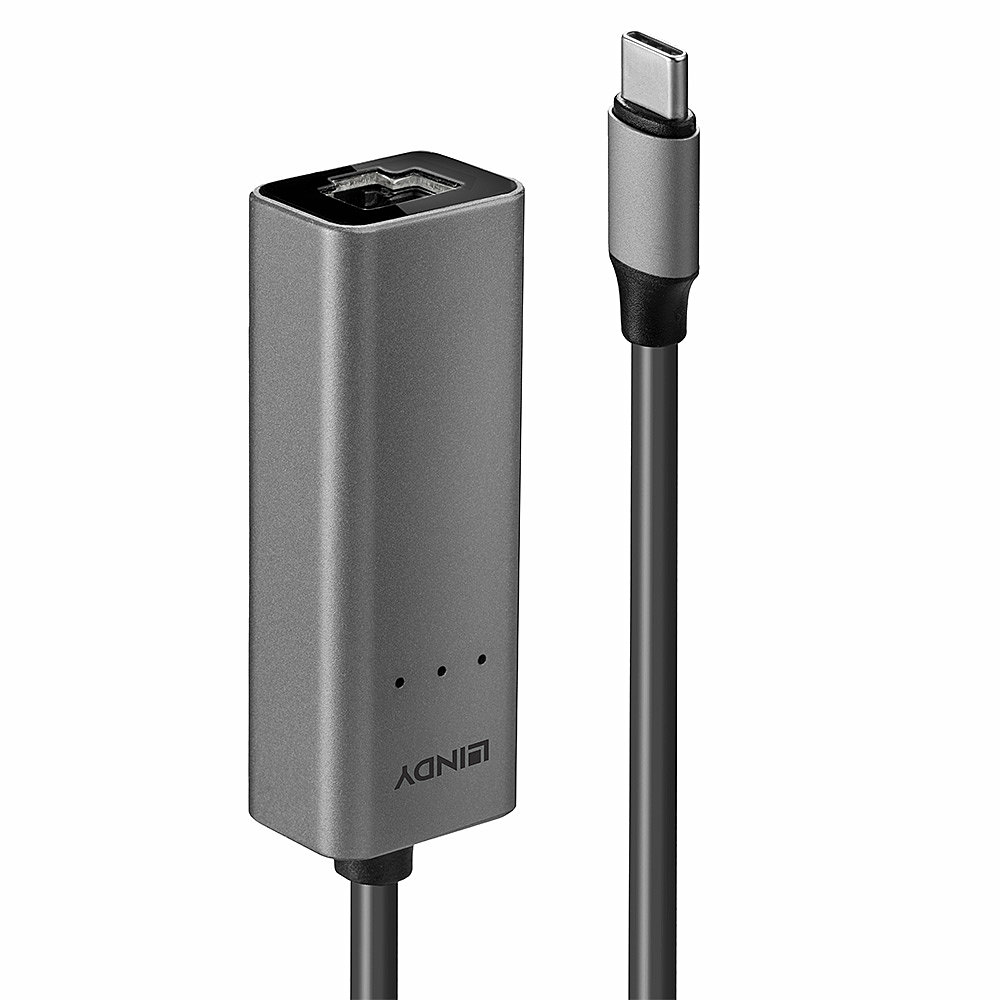

Lindy USB 3.1 Type C to 2.5G Ethernet Converter

€46,02 ar pvn

Artikuls: ST05608814

Preces kods: 43314

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
PL	8 - 15 dienās	6	€46,02 ar pvn
LV	7 - 12 dienās	165	€63,13 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4

Krāsa	Sudraba
Īpašības	USB Type-C
Īpašības	USB
Īpašības	RJ-45
Krāsa	Pelēka

Connectivity technology	Wired
Host interface	USB Type-C
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
USB connector form factor	Straight
USB version	3.2 Gen 1 (3.1 Gen 1)
Maximum data transfer rate	2500 Mbit/s
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Internal	No
Product colour	Silver
Chipset	Realtek RTL8156B
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Width	60 mm
Depth	22 mm
Height	17 mm
Weight	34 g
Harmonized System (HS) code	85176990
Description
Description	Lindy USB 3.1 Type C to 2.5G Ethernet Converter. Connectivity technology: Wired, Host interface: USB Type-C, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Silver

Description
	Colour Silver

chipset

Realtek RTL8156B

weight

34 g

gross weight

0.04

maximum data transfer rate

2500 Mbit/s

height

17 mm

width

60 mm

depth

22 mm

interface

Ethernet

country of origin

product colour

Silver

operating temperature (t-t)

0 - 70 °C

storage temperature (t-t)

-20 - 70 °C

operating relative humidity (h-h)

5 - 95%

harmonized system (hs) code

85176990

internal

ethernet interface type

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

ethernet lan data rates

10,100,1000,2500 Mbit/s

connectivity technology

Wired

ethernet lan (rj-45) ports

usb version

3.2 Gen 1 (3.1 Gen 1)

host interface

USB Type-C

ethernet lan

Yes

usb connector form factor

Straight

net weight

0.03

packaging height

14.40

packaging lenght

13.30

packaging width

1.50

warranty

tech data sheets

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f3/67/97/62/629767f3d0ebe20d37a65edc/43314_TDS_v1.pdf

variation of

43313

Description

Specifications

Interface: USB to RJ45
Interface Standard: USB 3.2 / 3.1 Gen 1 / 3.0, 2.5G LAN
Supported Bandwidth: 5 Gbps (USB), 10/100/1000Mbps/2.5Gbps
Chipset: RTL8156B
Compatibility: USB Type C equipped computers, Windows, Mac (including Apple M based processors) & Linux OS
Power Delivery: -
Special Features: Supports Wake on LAN (WoL)

Connectors

Inputs: 1 x USB Type C (Male)
Outputs: 1 x RJ45 (Female)
Power:
- Standby Power< 80mA (when Ethernet cable is not connected)
- Normal Operating Power:
  - < 80mA 10Mbps
  - < 130mA 100Mbps
  - < 300mA 1Gbps
  - < 460mA 2.5Gbps

Physical Properties

Dimensions WxDxH: 60x22x17mm (2.36x0.87x0.67in)
(Fixed) Cable Length: 270mm (10.63in)
Housing Material: Aluminium
Net Weight: 0.034kg (0.07lb)
Operating Temperature: 0° to 70° C (32°F – 158°F)
Storage Temperature: -20° to 70° C (-4°F – 158°F)
Humidity: 5 - 95% RH (non-condensing)
Power Requirements: <450mA @5V
Colour: Silver

Miscellaneous

Packaging Type: Polybag
Packaging Dimensions: 133x144mm (5.24x5.67in)
Gross Weight: 0.38kg (0.08lb)
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS & REACH, POP, CP65

Package content

USB 3.2 Type C to 2.5G Ethernet Converter

Purchasing Information

No.: 43314
EAN: 4002888433143

Tech Data Sheets: 43314_TDS_v1.pdf
