Ražotājs: MINIX

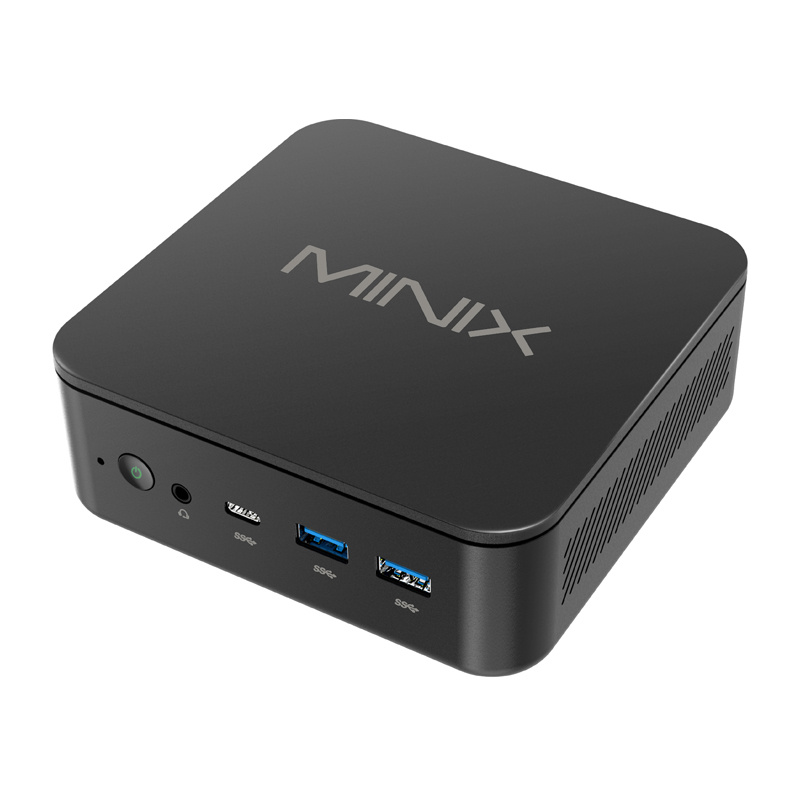

Mini PC Minix NR660 ryzen 5 6600h 16+512

€460,90 ar pvn

Artikuls: ST10274454

Preces kods: NR660

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
		4 - 8 dienās	23	€460,90 ar pvn

Daudzums:

Specifikācijas

Specifikācija

ManufacturerNameModelColorMaterialCPUGPUMemoryMemory slotsSSDExpandable driveWI-FI and BluetoothConnectivityFront buttonFront audio jackFront USB Type-A portFront USB Type-C portFront resetRear RJ45Rear USB Type-ARear HDMIRear USB Type-CRear DisplayPortRear DC socketOperating systemSupported languagesCertificationsWIFI CertificationOperating temperatureStorage temperatureRelative humidityDevice dimensionsPackaging dimensionsWeight of the deviceWeight with packaging

Description
Description	Minix NR660 mini PC ryzen 5 6600h 16+512 MINIX NR660 is a compact desktop PC designed for demanding professionals and home users. Equipped with a six-core AMD Ryzen™ 5 6600H processor with twelve threads and integrated Radeon™ 660M graphics, it provides smooth performance even for intensive multitasking and multimedia processing. It comes with 16GB of DDR5 RAM clocked at 4800 MHz and a fast 512GB NVMe PCIe 3.0 SSD. The device runs Windows 11 Pro and meets CE, FCC, RoHS and PSE certification requirements, making it a good choice for global use. Ready for expansion - memory and data storage The MINIX NR660 offers flexible expansion options - two SO-DIMM slots allow for up to 64GB of RAM, and two M.2 SSD slots (PCIe 3.0 and PCIe 4.0) allow for the installation of drives with a total capacity of up to 8TB. This makes the device easily customizable for future needs, whether used for graphics editing, data analysis or daily office work. Exceptional image quality - support for up to 8K The Mini PC supports simultaneous display on three monitors with a maximum resolution of 4K at 60 Hz, thanks to HDMI 2.1, DisplayPort 1.4 and USB-C 4.0 ports. When connected via DP 1.4 or USB-C, it is possible to transmit video in 8K at 30 Hz. This configuration makes the device ideal for graphics work, video editing or multimedia applications. Fast and stable network connectivity The MINIX NR660 features two 2.5G RJ-45 Ethernet ports, providing high throughput and low latency, ideal for local networks or real-time data transmission. Support for Wi-Fi 6E (2.4GHz, 5GHz and 6GHz bands) and Bluetooth 5.2 further enhances the flexibility of wireless connections, ensuring fast internet access and reliable communication with peripherals. Thoughtful port layout and modern design The all-plastic case conceals a rich set of connectors: a total of up to six USB ports (including USB-A 3.2 Gen 2, USB-A 2.0 and USB-C 4.0), HDMI and DP ports, a 3.5mm audio jack, and power and reset buttons. The device weighs just 483 g and has compact dimensions of 130 × 127 × 46.9 mm, making it easy to install anywhere, whether in a home office or commercial application. Quiet operation and efficient cooling Thanks to the use of copper tubing, high-performance thermal paste and active fan cooling, the mini PC maintains optimal operating temperatures while keeping noise levels low - a maximum of 32 dB. Thoughtful design ensures effective heat dissipation, which translates into stability and long component life even during intensive use. Included 1x Mini PC Minix NGC NR660 1x HDMI cable 1x Power cable 1x Adapter 1x VESA mount 1x User manual
MINIX
NGC PRD
NR660
Black
Plastic
AMD Ryzen™ 5 6600H (6 cores, 12 threads, 12 MB cache, clocked up to 5.1 GHz)
AMD Radeon™ 660M integrated
16 GB DDR5 clocked at 4800 MHz
2 × SO-DIMM DDR5 (support up to 64 GB, additional memory not included)
512 GB M.2 2280 PCIe 3.0 ×4 (pre-installed)
Additional M.2 2280 PCIe 4.0 ×4 slot for a second SSD
WI-FI 6E 2.4Ghz; 5GHz; 6GHz; RZ616 MT7922A22M, BT5.2
RZ616 MT7922A22M - tri-band Wi-Fi 6E (2.4GHz / 5GHz / 6GHz), Bluetooth 5.2
1×Power button with white LED light
1×3.5mm combo jack (audio input/output)
2×USB-A 3.2 Gen2
1×USB-C 4.0 (full functionality, 4K@60Hz, 40 Gbps, 100 W input / 15 W output)
1×Reset button
2×RJ-45 Ethernet 2.5G
1×USB-A 2.0; 1×USB-A 3.2 Gen2
2×HDMI 2.1 TMDS (4K@60Hz)
1×Thunderbolt 4 (8K@60Hz) (DP, PD, data)
1×DisplayPort 1.4 (4K@60Hz)
1×AC input 100~240V, output 19V 5A (max. 95W), DC connector 2.5/5.5mm (RTC support, EU/US/UK adapters included)
Windows 11 Pro
Multi-language support
FCC CE UKCA ROHS WEEE PSE
Model: MT7922A22M; Contains; FCC ID: RAS-MT7922A22M; Includes; IC: 7542A-MT7922A22M; CMIIT ID: 2021AJ12359(M); NCC ID: CCAI21Y10050T2; IMDA Standards: DB02941; ICC ID: R-C-MD6-MT7922A22M; TELEC RF: 020-210086; TELEK TEL: D210041020
0-50°C, at a relative humidity of 5-80% RH
-20-70°C
10-95% RH at 40°C (non-condensing)
130 × 127 × 46.9 mm
182 × 172 × 112 mm
483 g
1463 g
