Ražotājs: MSI

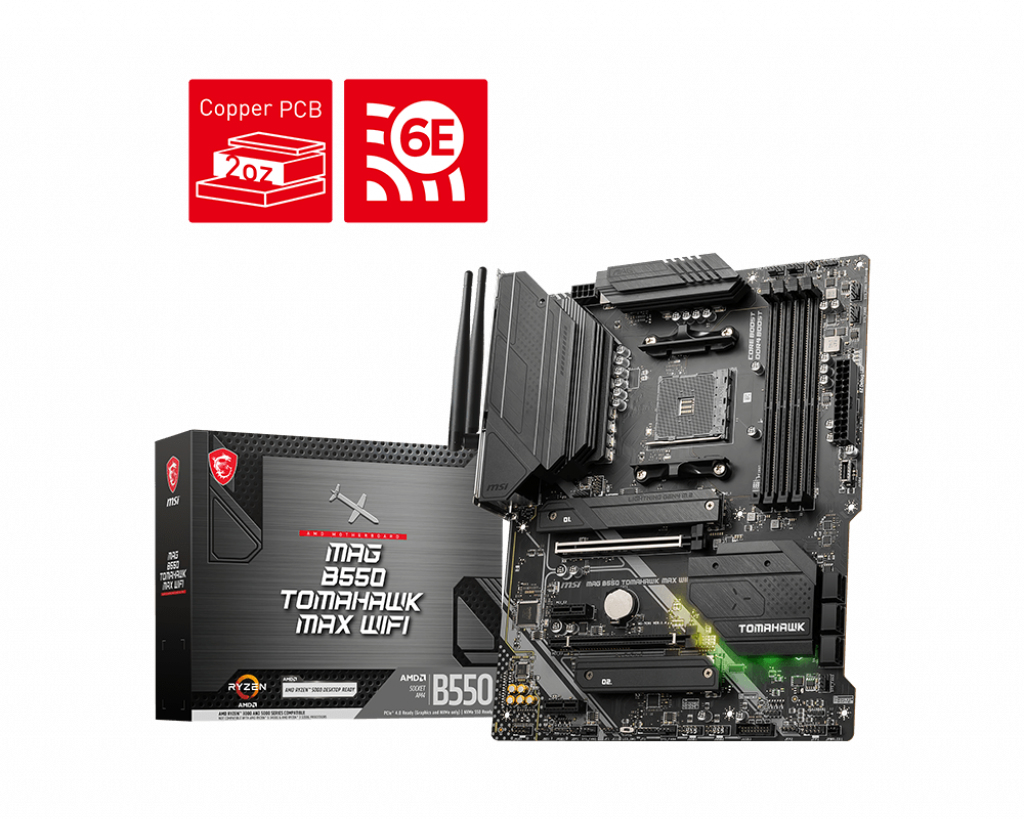

MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX

€157,98 ar pvn

Artikuls: ST06747124

Preces kods: 7C94-043R

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	200	€157,98 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2

CPU ligzda	Socket AM4
Plates izmērs (Form Factor)	ATX
Video interfeiss	DisplayPort
Atmiņas tips	DDR4
Video interfeiss	HDMI

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen 5 5th Gen, 3rd Generation AMD Ryzen™ 7, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4300,4400,4533,4600,4800,4866,5000,5100 MHz
Supported memory clock speed (max)	5100 MHz
RAID support	Yes
RAID levels	0, 1, 10
Parallel processing technology support	Crossfire
HDCP	Yes
DirectX version	12.0
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Number of SATA III connectors	6
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
Power fan connector	Yes
Chassis intrusion connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
TPM connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
S/PDIF out port	Yes
Digital audio optical out	5
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125B
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
Clear CMOS jumper	Yes
Width	244 mm
Depth	305 mm
Drivers included	Yes
Description
Description	MSI MAG B550 TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen 5 5th Gen, 3rd Generation AMD Ryzen™ 7,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. RAID levels: 0, 1, 10. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Specifikācija

1
Specifikācija 2

CPU ligzda	Socket AM4
Plates izmērs (Form Factor)	ATX
Video interfeiss	DisplayPort
Atmiņas tips	DDR4
Video interfeiss	HDMI

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen 5 5th Gen, 3rd Generation AMD Ryzen™ 7, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4300,4400,4533,4600,4800,4866,5000,5100 MHz
Supported memory clock speed (max)	5100 MHz
RAID support	Yes
RAID levels	0, 1, 10
Parallel processing technology support	Crossfire
HDCP	Yes
DirectX version	12.0
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Number of SATA III connectors	6
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
Power fan connector	Yes
Chassis intrusion connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
TPM connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
S/PDIF out port	Yes
Digital audio optical out	5
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125B
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
Clear CMOS jumper	Yes
Width	244 mm
Depth	305 mm
Drivers included	Yes
Description
Description	MSI MAG B550 TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen 5 5th Gen, 3rd Generation AMD Ryzen™ 7,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. RAID levels: 0, 1, 10. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
