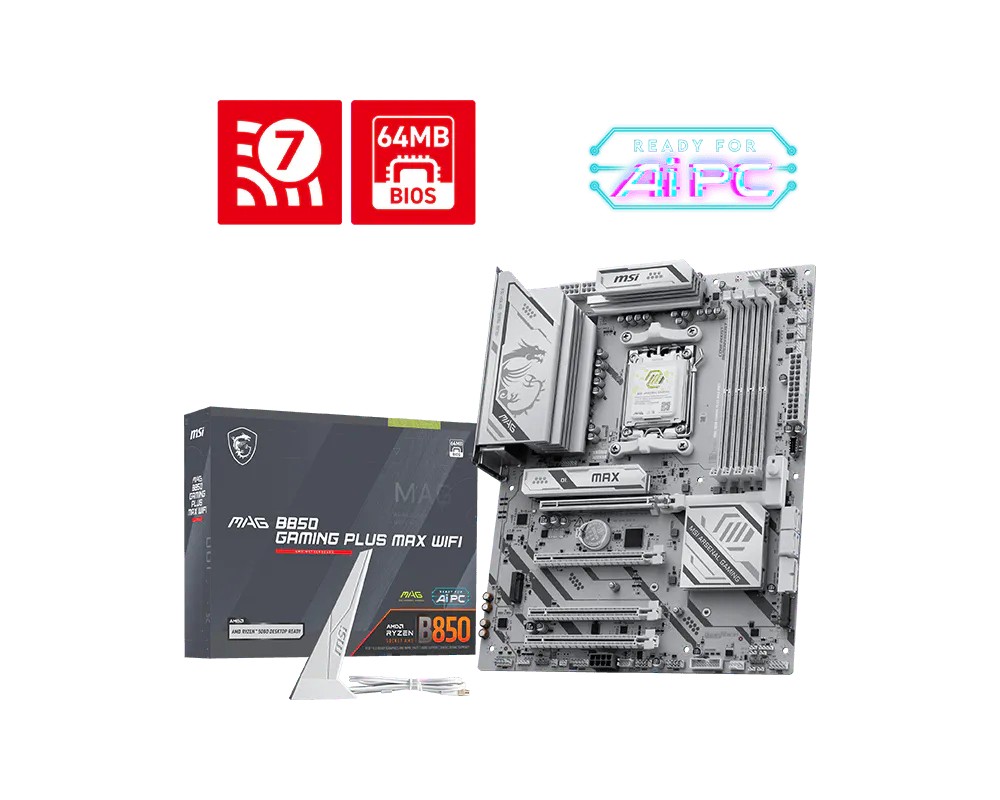

| Model | MAG B850 GAMING PLUS MAX WIFI |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 9 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD B850 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8200 MHz |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 6400 MHz |
| Max memory size | 256 (GigaBajt) |
| Expansion slots | 2 x PCIe 3.0 x 1 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 3 x M.2 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | 4x PCI-E x16 slot - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
3x M.2 - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
- 4x SATA 6G
M2_1 slot - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M2_2 slot - Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 3.0 x4 (For Ryzen 8500/ 8300 Series processors)
- RAID Supports RAID 0 and RAID 1 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
|
| Graphics | - 1x DisplayPort
- Support DisplayPort 1.2 with HBR2, maximum resolution of 4K 60Hz
|
| Sound card | - Realtek ALC897
- 7.1-Channel High Definition Audio
|
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Bluetooth |
| Network interface | - Realtek 8126 5G LAN
- Wi-Fi 7 Solution
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth 5.4**, MLO, 4KQAM
|
| USB ports at back panel | 8 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 3 |
| FireWire (IEEE 1394) | No |
| COM connector / port | Yes |
| LPT connector / port | No |
| External connectors | 1 x Line Out |
| External connectors | 1 x Line In |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 2 x USB 3.2 Gen 2 Type-C |
| External connectors | 4 x USB 2.0 |
| External connectors | 2 x SMA |
| External connectors | 1 x DisplayPort |
| Onboard connectors | 1 x Tuning Controller connector |
| Onboard connectors | 2 x Base Clock control buttons |
| Onboard connectors | 1 x EZ Conn-header |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 1 x Serial port header |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 2 x System panel header |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-C |
| Onboard connectors | 4 x EZ Debug LED |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 8-pin PCIe |
| Onboard connectors | 1 x EZ Memory Detection LED |
| Onboard connectors | 4 x 4pin Chassis fan |
| Onboard connectors | 4 x USB 3.2 Gen 1 Type-A |
| Form factor | ATX |
| Dimensions | 243.84 mm x 304.8 mm |
| Accessories included | - Skrócona instrukcja instalacji
- Informacja o zgodności z przepisami Unii Europejskiej
- Kabel SATA do podłączenia dysków lub napędów
- Narzędzie do zdejmowania klipsa EZ M.2 Clip II
- Klips do łatwego montażu dysku M.2 bez śrubki
- Naklejki do oznaczania kabli
- Łatwa w montażu antena Wi-Fi
- Kabel rozdzielający EZ Conn (1 na 2)
|
| Supported operating systems | Windows 11 |
| Designation | CE+WEEE |
| Width | 350 |
| Height | 275 |
| Depth | 75 |
| Weight | 1790 |
| Description |
MAG B850 GAMING PLUS MAX WIFI MAG B850 GAMING PLUS MAX WIFI została zaprojektowana dla graczy jako stabilna, trwała i przyjazna dla majsterkowania (DIY) podstawa do budowy komputera. Wyposażona w najnowsze Wi-Fi 7, LAN 5G, USB 10 Gb/s, obsługę PCIe 5.0, dodatkowe zasilanie PCIe (Supplemental PCIe Power) oraz ekskluzywne funkcje EZ DIY, jest gotowa na pole bitwy z procesorami AMD Ryzen serii 9000. - Obsługuje procesory desktopowe AMD Ryzen serii 9000 / 8000 / 7000
- Obsługa pamięci DDR5, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: system zasilania 12+2+1 Duet Rail, podwójne 8-pinowe złącza zasilania CPU, Core Boost, Memory Boost, 6-warstwowa płyta PCB z pogrubionej miedzi 2 oz oraz materiałów klasy serwerowej
- Frozr Guard: powiększony radiator, podkładki termiczne MOSFET o przewodności 7 W/mK, dodatkowe podkładki termiczne na dławikach oraz EZ M.2 Shield Frozr II dla wysokiej wydajności i ciągłej pracy systemu
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release oraz EZ Antenna ułatwiające montaż podzespołów
- Błyskawiczne wrażenia w grach: slot PCIe 5.0, Lightning Gen 5 x4 M.2, przedni port USB Type-C
- LAN 5G z Wi-Fi 7: nowoczesne rozwiązanie dla zastosowań profesjonalnych i multimedialnych, zapewniające bezpieczną, stabilną i bardzo szybką sieć oraz transmisję danych
- Audio Boost: dźwięk jakości studyjnej dla najbardziej immersyjnych wrażeń w grach
|
