| power over ethernet (poe) | Yes |
| manufacturer | D-LINK |
| product group | Netzwerk-Switches |
| product type | Gigabit Ethernet Switch |
| colour | black |
| weight | 1.408 kg |
| height of packaging (single piece) | 80 mm |
| width of packaging (single piece) | 300 mm |
| depth of packaging (single piece) | 340 mm |
| package weight (single piece) | 2.07 kg |
| gross weight | 2.07 |
| current catalog edition | 24.1 |
| height | 44 mm |
| width | 280 mm |
| depth | 180 mm |
| operating temperature min. | 0 °C |
| operating temperature max. | 50 °C |
| quantity of ports | 8 |
| lan (mbps) | 10/100/1000 |
| full duplex | Yes |
| mains connection | Kaltgeräte-Anschluss |
| mounting form | Desktop |
| switch type | Managed |
| network standard | Gigabit Ethernet |
| gigabit ethernet ports rj-45 | 8 |
| quantity of poe ports | 8 |
| mounting angle | im Lieferumfang enthalten |
| max. poe output power per port | 30 W |
| management | Layer2 |
| free slots for sfps | 2 |
| cable management | Yes |
| stackable | Yes |
| max. poe output power (total) | 65 W |
| switch layer | L2 |
| quality of service (qos) support | Yes |
| basic switching rj-45 ethernet ports quantity | 8 |
| basic switching rj-45 ethernet ports type | Gigabit Ethernet (10/100/1000) |
| sfp module slots quantity | 2 |
| networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af |
| 10g support | Yes |
| flow control support | Yes |
| mac address table | 16000 entries |
| switching capacity | 20 Gbit/s |
| packet buffer memory | 6 MB |
| access control list (acl) | Yes |
| mac address filtering | Yes |
| multicast support | Yes |
| rack mounting | Yes |
| product colour | Black |
| led indicators | Yes |
| power over ethernet plus (poe+) ports quantity | 8 |
| operating temperature (t-t) | -5 - 50 °C |
| storage temperature (t-t) | -20 - 70 °C |
| operating relative humidity (h-h) | 0 - 95% |
| storage relative humidity (h-h) | 0 - 95% |
| package width | 288 mm |
| package depth | 331 mm |
| package height | 72 mm |
| package weight | 2.17 kg |
| certification | CE Class A |
| harmonized system (hs) code | 85176990 |
| ac input voltage | 100 - 240 V |
| pallet gross width | 120 cm |
| pallet gross length | 110 cm |
| jumbo frames support | Yes |
| shipping (inner) case height | 31.7 cm |
| shipping (inner) case width | 34.6 cm |
| shipping (inner) case length | 38.2 cm |
| shipping (inner) case net weight | 10.8 kg |
| products per shipping (inner) case | 5 pc(s) |
| pallet gross weight (air) | 436.1 kg |
| master (outer) cases per pallet (air) | 36 pc(s) |
| products per pallet (air) | 180 pc(s) |
| pallet height (air) | 140.3 cm |
| pallet gross weight (sea) | 644.9 kg |
| master (outer) cases per pallet (sea) | 54 pc(s) |
| products per pallet (sea) | 270 pc(s) |
| pallet height (sea) | 2.04 m |
| shipping (inner) case gross weight | 11.6 kg |
| safety | cUL, LVD |
| igmp snooping | Yes |
| power led | Yes |
| packet transfer speed | 14.9 Mp/s |
| spanning tree protocol | Yes |
| vlan support | Yes |
| dhcp features | DHCP server, DHCP client |
| static port security | Yes |
| ssh/ssl support | Yes |
| mib support | 1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB, Power-Ethernet MIB, LLDP MIB, D-Link ZoneDefense MIB1 |
| head-of-line (hol) blocking | Yes |
| management protocols | SNMP, RMON |
| data link protocols | IP |
| Description |

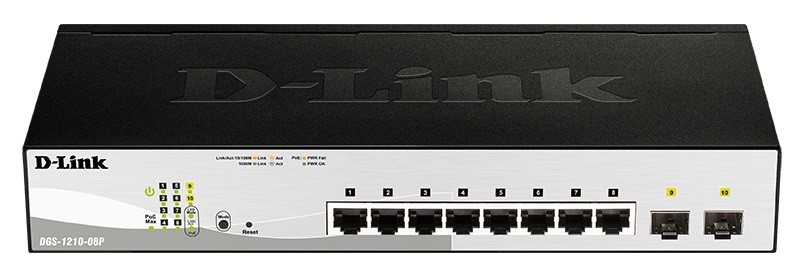

D-Link DGS-1210-08P. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8. Pilns duplekss. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 20 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af. Power over Ethernet (PoE). Statņa montāža
|
|
