Ražotājs: QNAP

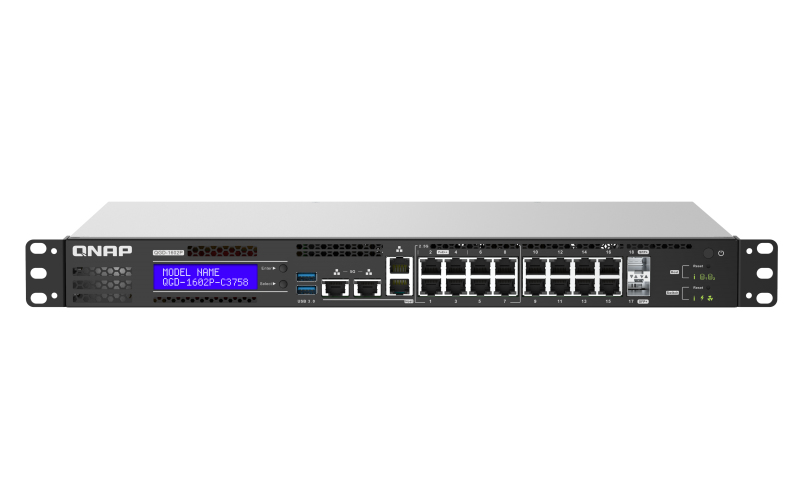

QNAP QGD-1602P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey

€1618,02 ar pvn

Artikuls: ST04726052

Preces kods: QGD-1602P-C3558-8G

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	4	€1618,02 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
2.5G Ethernet (copper) ports quantity	8
SFP+ module slots quantity	2
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-SR, 1000Base-X
MAC address table	32000 entries
Switching capacity	96 Gbit/s
Throughput	48 Gbit/s
Jumbo frames support	Yes
Jumbo frames	9000
DHCP features	DHCP client, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH, SSL/TLS
Loop protection	Yes
Multicast MAC address table	8000 entries
Rack mounting	Yes
Form factor	1U
Product colour	Black, Grey
Reset button	Yes
LED indicators	Activity, Alarm, Link, PoE, Speed
Number of fans	3 fan(s)
Electromagnetic compatibility	CLASS A, UL62368
Certification	CE, FCC, VCCI, BSMI RCM, CCC
Built-in processor	Yes
Processor manufacturer	Intel
Processor model	Atom C3558
Processor frequency	2200 MHz
Internal memory	8000 MB
Flash memory	4000 MB
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	280 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	220 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Width	435.2 mm
Depth	327.7 mm
Height	44.2 mm
Weight	4.37 kg
Cables included	AC, LAN (RJ-45)
Quick start guide	Yes
Rack mount kit	Yes
Package weight	5.52 kg
Harmonized System (HS) code	85176990
Port trunking	Yes
Expansion slots	2x PCIe Gen3 (x4 slot, x2 speed)
I/O ports	2x USB 3.2 Gen 1, 2 x 5GbE, 2 x 1GbE
Description
Description	QNAP QGD-1602P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 32000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
