Ražotājs: APC

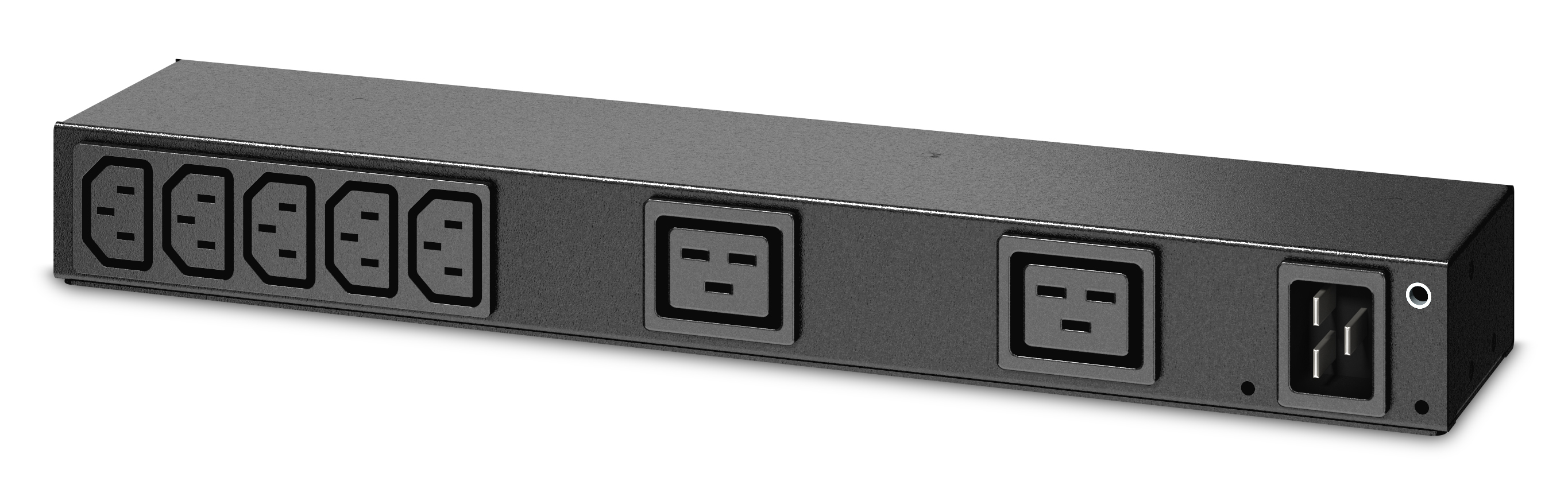

APC AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black

€141,03 ar pvn

Artikuls: ST01420008

Preces kods: AP6120A

Ražotāja mājaslapa

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	LV	2 - 5 dienās	4	€141,03 ar pvn

Daudzums:

Specifikācija

Ligzda (IEC320)	Jā

Dimensions	Maksymalna wysokość: 44.00 mm Maksymalna szerokość: 388.00 mm Maksymalna głębokość: 93.00 mm
Weight	1.56 (kilogram)
Certificates	cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE
Technical specifications	Na wyjściu Napięcie wyjściowe: 100V , 120V , 200V , 208V , 230V , 240V Maksymalny całkowity pobór prądu: 20 Gniazda wyjściowe: (2) IEC 320 C19 , (7) IEC 320 C13 Na wejściu Nominalne napięcie wejściowe: 100V , 120V , 200V , 208V , 230V , 240V Częstotliwość na wejściu: 50/60 Hz Typ gniazda wejściowego IEC-320 C20 Maksymalny prąd na wejściu: 16A
Designation	CE+WEEE
Color	Black
Width	225
Height	445
Depth	95
Weight	2000

Description	APC RACK PDU, BASIC, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19
CountryofOrigin	CHINA
TariffHeading	84733080
PictureLocation	https://www2.f9baltic.com/productimages/big/AP6120A.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/AP6120A.jpg
Weight	1.880000
Height	85.000000
Length	435.000000
Width	216.000000
BoxSize	5
PalletSize	0

PDU types	Basic
Rack capacity	0U/1U
Type	Single-phase
Mounting	Horizontal/Vertical
Product colour	Black
AC outlets quantity	7 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Certification	UL/C-UL, VDE, CE
Nominal input voltage	100-240 V
Maximum current	20 A
AC input frequency	50 - 60 Hz
Nominal output voltage	100-240 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum power	3680 W
Dimensions (WxDxH)	4.36 x 9.29 x 38.81 mm
Weight	1.56 kg
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Sustainability certificates	RoHS
Description
Description	APC AP6120A. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 7 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Certification: UL/C-UL, VDE, CE. Nominal input voltage: 100-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Dimensions (WxDxH): 4.36 x 9.29 x 38.81 mm, Weight: 1.56 kg
