Ražotājs: UNI-T

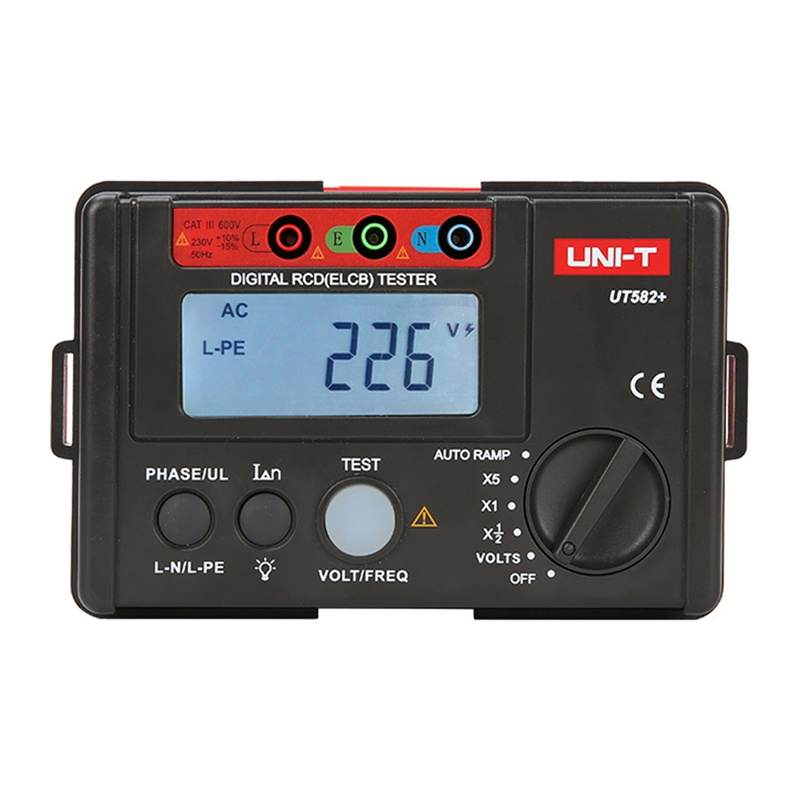

Review of the Uni-T RCD UT582+

€113,45 ar pvn

Artikuls: ST10474254

Preces kods: UT582+

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
	6 - 12 dienās	45	€113,45 ar pvn
PL	8 - 15 dienās	45	€126,86 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Specifikācija 1
Specifikācija 2

ManufacturerModelTypeOperating voltageVoltage rangeFrequencyTest currentsTrigger timeTime accuracyMaximum readingFunctionsPower supplyDisplayDimensionsWeightCertifications

Description
Description	Uni-T RCD Tester UT582+ The Uni-T UT582+ tester is a device designed to test the operation of residual current devices (RCDs) in single-phase installations. It allows you to verify whether the protective devices respond correctly, which is essential during electrical system inspections and maintenance work. Accurate RCD testing The UT582+ model allows for the measurement of trip time and trip current for various rated values, enabling the assessment of the proper operation of the protective devices. The AUTO RAMP function facilitates automatic verification of the trip threshold, and the device also offers voltage measurement up to 600V. Features for convenience and safety The device is equipped with a backlit display, a Data Hold function, and audible signals indicating errors and operating status. Fuse protection and connection indicators enhance safety, while automatic shutdown helps save energy. Included RCD Tester Test leads Carrying case Wrist strap User manual Specifications
Uni-T
UT582+
RCD Tester
195V ~ 253V
30V ~ 600V ±(3%+3)
45Hz ~ 65Hz
10mA / 20mA / 30mA / 100mA / 300mA / 500mA
40 ms ~ 2000 ms
±(2%+2)
999
AUTO RAMP, Data Hold, LCD backlight, audible alarm, connection check, auto power off, low battery indicator
6x 1.5V battery (LR6)
71 x 34 mm
160 x 100 x 71 mm
400 g
CE, UKCA

Description

Uni-T RCD Tester UT582+ The Uni-T UT582+ tester is a device designed to test the operation of residual current devices (RCDs) in single-phase installations. It allows you to verify whether the protective devices respond correctly, which is essential during electrical system inspections and maintenance work. Accurate RCD testing The UT582+ model allows for the measurement of trip time and trip current for various rated values, enabling the assessment of the proper operation of the protective devices. The AUTO RAMP function facilitates automatic verification of the trip threshold, and the device also offers voltage measurement up to 600V. Features for convenience and safety The device is equipped with a backlit display, a Data Hold function, and audible signals indicating errors and operating status. Fuse protection and connection indicators enhance safety, while automatic shutdown helps save energy. Included RCD Tester Test leads Carrying case Wrist strap User manual Specifications Manufacturer Uni-T Model UT582+ Type RCD Tester Operating voltage 195V ~ 253V Voltage range 30V ~ 600V ±(3%+3) Frequency 45Hz ~ 65Hz Test currents 10mA / 20mA / 30mA / 100mA / 300mA / 500mA Trigger time 40 ms ~ 2000 ms Time accuracy ±(2%+2) Maximum reading 999 Functions AUTO RAMP, Data Hold, LCD backlight, audible alarm, connection check, auto power off, low battery indicator Power supply 6x 1.5V battery (LR6) Display 71 x 34 mm Dimensions 160 x 100 x 71 mm Weight 400 g Certifications CE, UKCA

Specifikācija

Specifikācija 1
Specifikācija 2

ManufacturerModelTypeOperating voltageVoltage rangeFrequencyTest currentsTrigger timeTime accuracyMaximum readingFunctionsPower supplyDisplayDimensionsWeightCertifications

Description
Description	Uni-T RCD Tester UT582+ The Uni-T UT582+ tester is a device designed to test the operation of residual current devices (RCDs) in single-phase installations. It allows you to verify whether the protective devices respond correctly, which is essential during electrical system inspections and maintenance work. Accurate RCD testing The UT582+ model allows for the measurement of trip time and trip current for various rated values, enabling the assessment of the proper operation of the protective devices. The AUTO RAMP function facilitates automatic verification of the trip threshold, and the device also offers voltage measurement up to 600V. Features for convenience and safety The device is equipped with a backlit display, a Data Hold function, and audible signals indicating errors and operating status. Fuse protection and connection indicators enhance safety, while automatic shutdown helps save energy. Included RCD Tester Test leads Carrying case Wrist strap User manual Specifications
Uni-T
UT582+
RCD Tester
195V ~ 253V
30V ~ 600V ±(3%+3)
45Hz ~ 65Hz
10mA / 20mA / 30mA / 100mA / 300mA / 500mA
40 ms ~ 2000 ms
±(2%+2)
999
AUTO RAMP, Data Hold, LCD backlight, audible alarm, connection check, auto power off, low battery indicator
6x 1.5V battery (LR6)
71 x 34 mm
160 x 100 x 71 mm
400 g
CE, UKCA

Description
