| manufacturer | ROLINE |
| product group | I/O Card |
| product type | PCI-Express Adapter |
| colour | multicolored |
| weight | 43.2 g |
| height of packaging (single piece) | 50 mm |
| width of packaging (single piece) | 100 mm |
| depth of packaging (single piece) | 150 mm |
| package weight (single piece) | 0.2 kg |
| gross weight | 0.2 |
| current catalog edition | 24.1 |
| current catalog page | 8.02 |
| scope of delivery | Adapter, low profile bracket, manual |
| bus system | PCI Express |
| operating system | Windows 10 / 11 / Server 2022 / Server 2025 / Linux |
| mounting height | Full profile |
| installation guide / manual | yes |
| data transfer rate | 2,5 Gigabit Ethernet |
| Description |

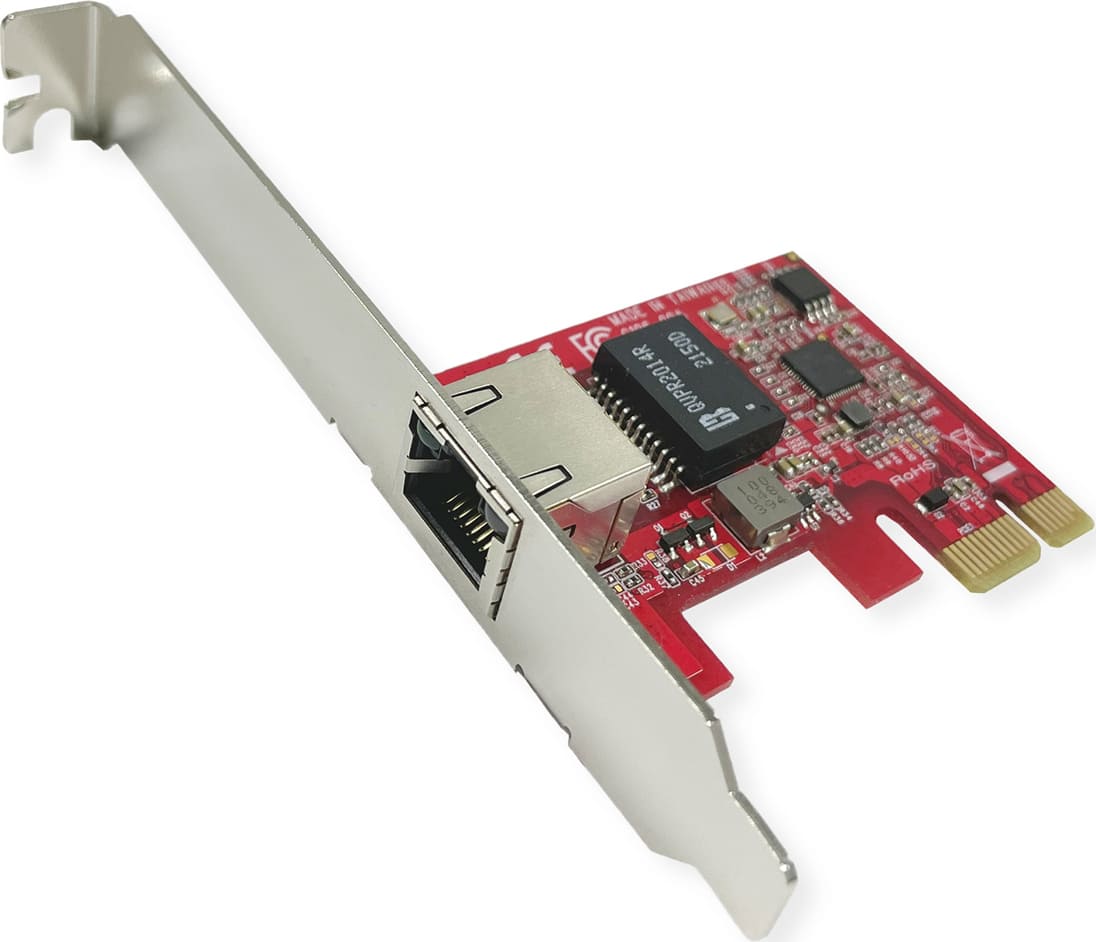

Expand your PC with a connection option to a 2.5 Gigabit Ethernet network!- Fully compliant with 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications
- Compliant with PCI Express Gen 2 version 3.1
- 2.5G Ethernet Controller
- Low Profile PCI Form Factor
- Regular size PCIe bracket on board and an additional Low Profile bracket included
- RJ-45 Port offers high speed transmission over CAT 5 UTP cable
- 2 LEDs indicate various network activities (2500 and LNK/ACT)
- IEEE 802.3u auto-negotiation
- Carrier extension support (half duplex)
- Half duplex operation at 10BASE-Te and 100BASE-TX
- Automatic polarity correction
- Network proxy/ARP offload
- PXE Support
- Error Correcting Memory (ECC) in packet buffers
- UDP and TCP Transmit Segmentation Offload (TSO)
- SCTP receive and transmit integrity offload
- Queues: 4 Tx and 4 Rx queues
- Jumbo Frame sizes 9K bytes
- Supports Wake-on-LAN
|
|
