    • Roline Cat. 8.1 (Class I) Keystone, RJ-45, shielded, slim, tool-free, silver
    Ražotājs: ROLINE

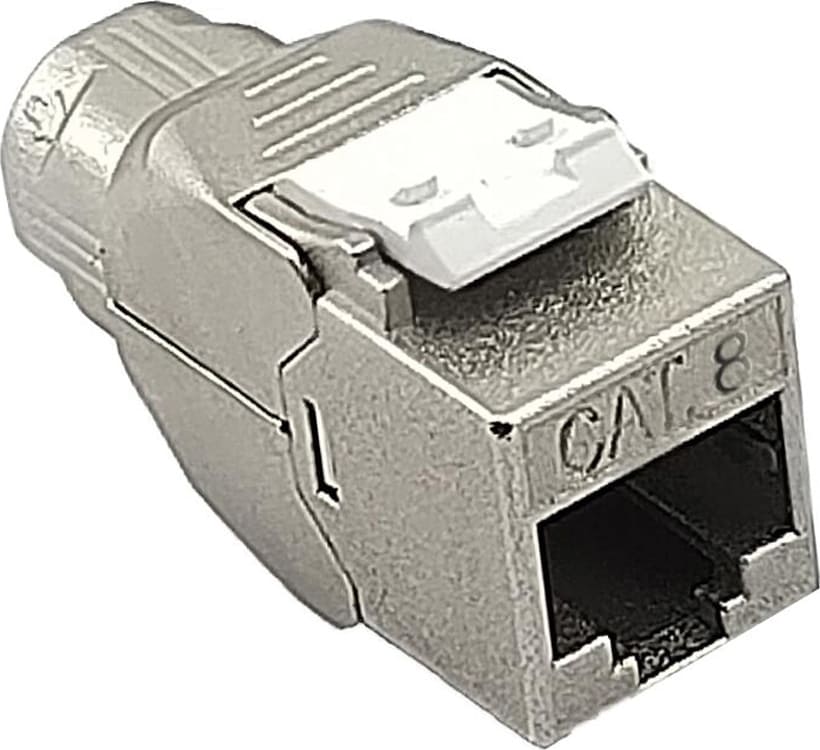

    Roline Cat. 8.1 (Class I) Keystone, RJ-45, shielded, slim, tool-free, silver


    €9,99 ar pvn

    Artikuls: ST10457634
    Preces kods: 26.11.0382
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    manufacturerROLINE
    product groupConnection technology TP
    product typeRJ45 Keystone Jack
    coloursilver
    weight18
    height of packaging (single piece)20
    width of packaging (single piece)20
    depth of packaging (single piece)20
    package weight (single piece)0.01
    gross weight0.01
    transfer qualityCat8.1 / Class I
    scope of deliveryKeystone
    height18.8
    width14.6
    depth36.2
    operating temperature max.70
    storage temperature min.-40
    storage temperature max.85
    dimensions (hxwxd)18.8 x 14.6 x 36.2 mm
    quantity of ports1
    shield typeScreened
    connection directionStraight
    material (casing)Zinc alloy
    assignmentEIA/TIA 568A & 568B
    Description

    This ROLINE Cat. 8.1 (Class I) Slim Shielded RJ-45 Keystone supports data transfer rates of up to 40 Gbps with a bandwidth of 2000 MHz and can easily be installed tool-free.

    • This ROLINE Cat. 8.1 (Class I) Keystone supports data transfer rates up to 10/25/40 Gbps with a bandwidth of 2000 MHz
    • Tool-free: Connect the cable to the keystone without special tools – place the cable ends simply into the guides (with color coding), close and compress the module – the connection is ready for use
    • The Keystone module can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.0360) or light gray (26.11.0359).
    • Suitable for cables wih outer diameter of 6.0 mm - 8.5 mm
    • For solid and stranded cables with 22 AWG - 26 AWG
    • Compliant with PoE per IEEE 802.3af, PoE+ per IEEE 802.3at and PoE++ per IEEE 802.3bt
    • Wire coded scheme: EIA/TIA 568

    Specifikācija
    manufacturerROLINE
    product groupConnection technology TP
    product typeRJ45 Keystone Jack
    coloursilver
    weight18
    height of packaging (single piece)20
    width of packaging (single piece)20
    depth of packaging (single piece)20
    package weight (single piece)0.01
    gross weight0.01
    transfer qualityCat8.1 / Class I
    scope of deliveryKeystone
    height18.8
    width14.6
    depth36.2
    operating temperature max.70
    storage temperature min.-40
    storage temperature max.85
    dimensions (hxwxd)18.8 x 14.6 x 36.2 mm
    quantity of ports1
    shield typeScreened
    connection directionStraight
    material (casing)Zinc alloy
    assignmentEIA/TIA 568A & 568B
    Description

    This ROLINE Cat. 8.1 (Class I) Slim Shielded RJ-45 Keystone supports data transfer rates of up to 40 Gbps with a bandwidth of 2000 MHz and can easily be installed tool-free.

    • This ROLINE Cat. 8.1 (Class I) Keystone supports data transfer rates up to 10/25/40 Gbps with a bandwidth of 2000 MHz
    • Tool-free: Connect the cable to the keystone without special tools – place the cable ends simply into the guides (with color coding), close and compress the module – the connection is ready for use
    • The Keystone module can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.0360) or light gray (26.11.0359).
    • Suitable for cables wih outer diameter of 6.0 mm - 8.5 mm
    • For solid and stranded cables with 22 AWG - 26 AWG
    • Compliant with PoE per IEEE 802.3af, PoE+ per IEEE 802.3at and PoE++ per IEEE 802.3bt
    • Wire coded scheme: EIA/TIA 568
