    • Roline Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver
    Ražotājs: ROLINE

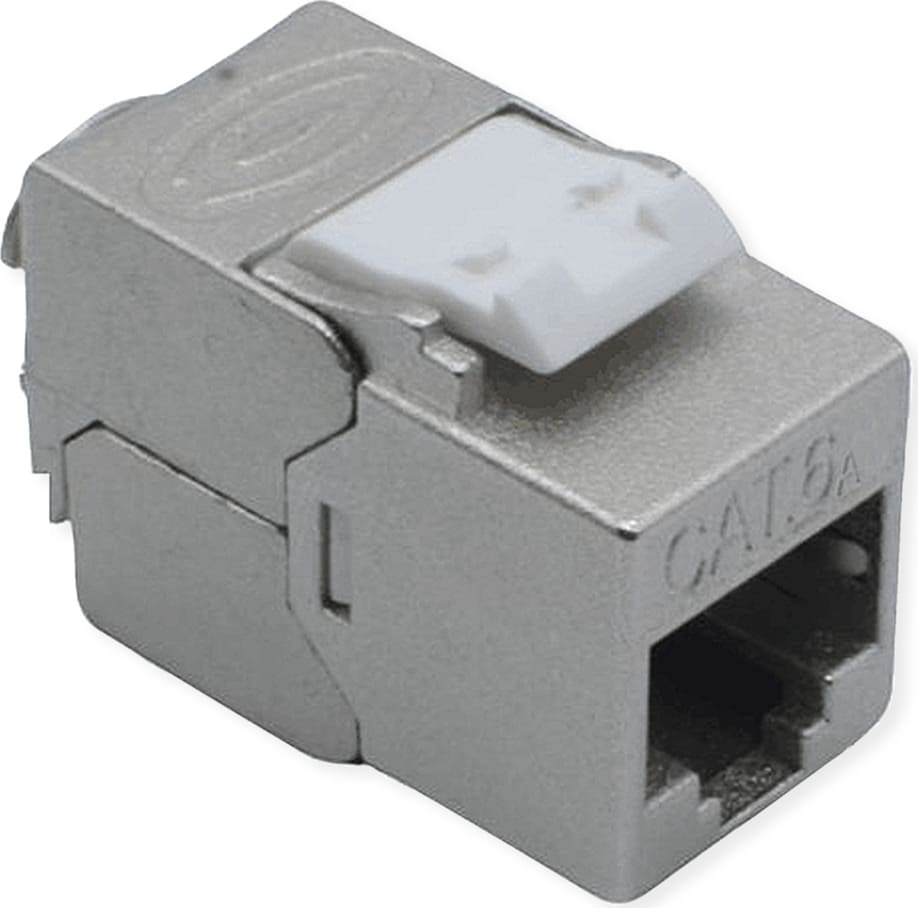

    Roline Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver


    €9,68 ar pvn

    Artikuls: ST10307022
    Preces kods: 21.17.0328
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    manufacturerROLINE
    product groupConnection technology TP
    product typeRJ45 Keystone Jack
    coloursilver
    weight16
    height of packaging (single piece)10
    width of packaging (single piece)20
    depth of packaging (single piece)20
    package weight (single piece)0.005
    gross weight0.005
    technical particularityGHMT certified
    transfer qualityCat6A / Class EA
    scope of deliveryKeystone
    height18.96
    width14.68
    depth31.89
    operating temperature min.-10
    operating temperature max.60
    storage temperature min.-40
    storage temperature max.70
    dimensions (hxwxd)18.96 x 14.68 x 31.89 mm (+/- 0.2 mm)
    quantity of ports1
    shield typeScreened
    connection directionStraight
    assignmentEIA/TIA 568A & 568B
    component-level certifiedyes
    Description

    The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified

    • Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
    • Cat.6A Keystone Jack (Module)
    • Fully shielded Housing (zinc alloy)
    • 360 degree fully shielded
    • Slim type
    • 180 degree cable entry
    • Supports PoE per IEEE 802.3af, PoE+ per IEEE 802.3at and POE++ per IEEE 802.3bt
    • For cables with AWG 22-26
    • For cables with OD: 5.0-8.0 mm
    • Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
    • Dimensions (H x W x D): 18.96 x 14.68 x 31.89 mm (+/- 0.2 mm)

    GHMT certified

    Specifikācija
    manufacturerROLINE
    product groupConnection technology TP
    product typeRJ45 Keystone Jack
    coloursilver
    weight16
    height of packaging (single piece)10
    width of packaging (single piece)20
    depth of packaging (single piece)20
    package weight (single piece)0.005
    gross weight0.005
    technical particularityGHMT certified
    transfer qualityCat6A / Class EA
    scope of deliveryKeystone
    height18.96
    width14.68
    depth31.89
    operating temperature min.-10
    operating temperature max.60
    storage temperature min.-40
    storage temperature max.70
    dimensions (hxwxd)18.96 x 14.68 x 31.89 mm (+/- 0.2 mm)
    quantity of ports1
    shield typeScreened
    connection directionStraight
    assignmentEIA/TIA 568A & 568B
    component-level certifiedyes
    Description

    The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified

    • Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
    • Cat.6A Keystone Jack (Module)
    • Fully shielded Housing (zinc alloy)
    • 360 degree fully shielded
    • Slim type
    • 180 degree cable entry
    • Supports PoE per IEEE 802.3af, PoE+ per IEEE 802.3at and POE++ per IEEE 802.3bt
    • For cables with AWG 22-26
    • For cables with OD: 5.0-8.0 mm
    • Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
    • Dimensions (H x W x D): 18.96 x 14.68 x 31.89 mm (+/- 0.2 mm)

    GHMT certified
