    • Schroff EuropacPRO Rear Hood for Stainless Steel EMC Gasket, 3 U, 84 HP
    Ražotājs: SCHROFF

    Schroff EuropacPRO Rear Hood for Stainless Steel EMC Gasket, 3 U, 84 HP


    €56,23 ar pvn

    Artikuls: ST10457785
    Preces kods: 34561752
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    manufacturerSCHROFF
    product groupSCHROFF 19" cabinets & expansion parts
    product typeEuropac PRO
    height of packaging (single piece)60
    width of packaging (single piece)130
    depth of packaging (single piece)470
    package weight (single piece)0.312
    gross weight0.312
    height units3
    width units84
    Description

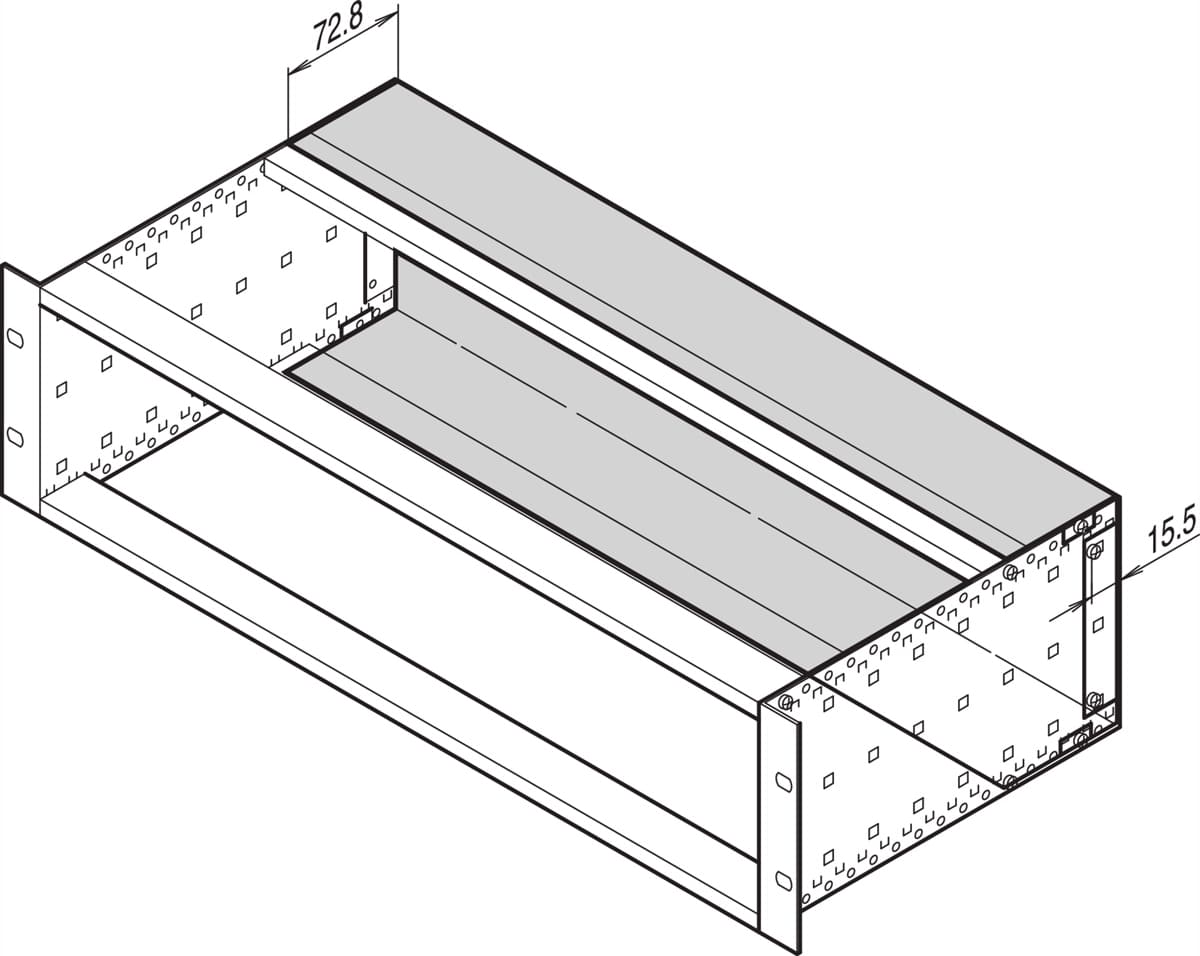

    EuropacPRO, rear cover, 3 U, 84 HP, for stainless steel EMC seal,

    REAR HOOD 3U 84HP

    The rear cover is used as a shielded rear termination. The rear cover requires 60 mm of space. Therefore, when using the rear cover, the side panel depth must be 60 mm greater than the board depth. Example: A side panel (with rear cover) of 235 mm (175 mm + 60 mm) is used for a panel depth of 160 mm - The contact between the rear cover and the horizontal rails is made by the stainless steel seal for the cover plate. This means that no additional EMC seals are required

    Specifikācija
    manufacturerSCHROFF
    product groupSCHROFF 19" cabinets & expansion parts
    product typeEuropac PRO
    height of packaging (single piece)60
    width of packaging (single piece)130
    depth of packaging (single piece)470
    package weight (single piece)0.312
    gross weight0.312
    height units3
    width units84
    Description

    EuropacPRO, rear cover, 3 U, 84 HP, for stainless steel EMC seal,

    REAR HOOD 3U 84HP

    The rear cover is used as a shielded rear termination. The rear cover requires 60 mm of space. Therefore, when using the rear cover, the side panel depth must be 60 mm greater than the board depth. Example: A side panel (with rear cover) of 235 mm (175 mm + 60 mm) is used for a panel depth of 160 mm - The contact between the rear cover and the horizontal rails is made by the stainless steel seal for the cover plate. This means that no additional EMC seals are required
