Ražotājs: SHELLY

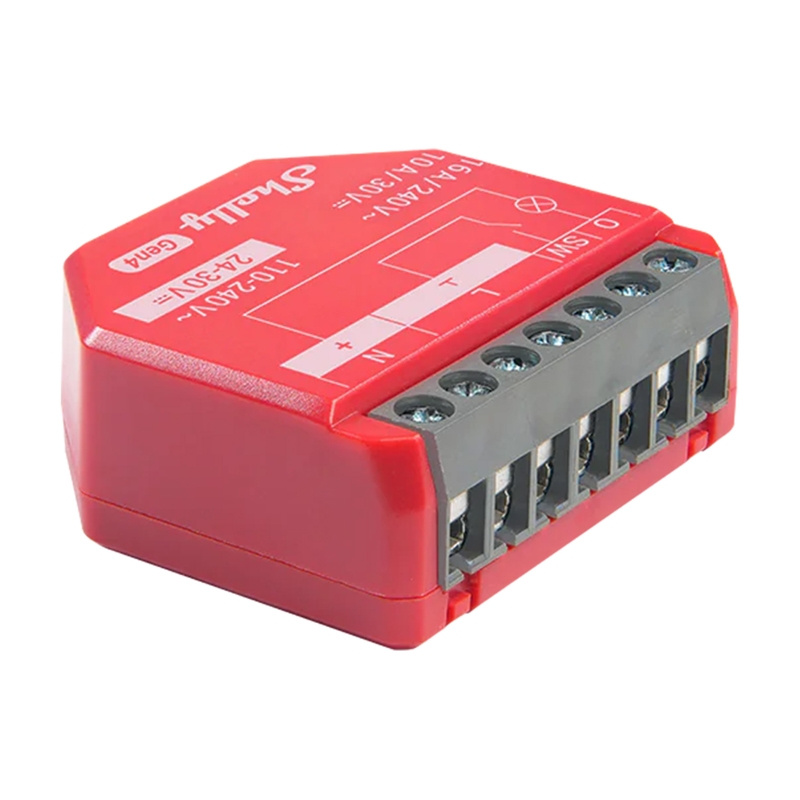

Shelly Podtynkowy 1PM Gen4 przekanik max 16A 1 kana funkcja pomiaru WLAN Matter Zigbee Bluetooth

€30,43 ar pvn

Artikuls: ST09586289

Preces kods: 1PMGen4

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
	3 - 6 dienās	637	€30,43 ar pvn
PL	8 - 15 dienās	62	€35,84 ar pvn

Daudzums:

Specifikācijas

Specifikācija

ManufacturerModel

Physical parameters

DimensionsWeightMaximum terminal tightening torqueCable cross sectionWire stripping lengthMountingHousing materialHousing colorClamp color

Environmental conditions

Operating temperatureOperating humidityMaximum altitude

Electrical parameters

Power supplyPower consumptionNeutral wire requiredExternal protection

Sensors and measurements

Voltmeter (AC)Ammeter (AC)Internal temperature sensor

Wi-Fi

ProtocolRF bandRF powerRange

Bluetooth

ProtocolRF bandRF powerRange

Zigbee

ProtocolZigbee repeaterRF bandwidthRF powerRange

Microcontroller unit

CPUFlash memory

Software functionality

SchedulesWebhooks (URL shares)ScriptsMQTT

Description
Description	Shelly 1 PM Gen4 Controller Zigbee/Matter The Shelly 1PM Gen4 is a compact built-in switch with power metering that combines several wireless communication standards - Zigbee, Wi-Fi, Bluetooth and Matter. The device allows you to remotely control connected power consumers, and with accurate power measurement it allows you to analyze energy consumption in real time. Thanks to its small dimensions, it can be successfully installed in flush-mounted boxes, behind sockets or light switches. Full control in your hands The controller can be operated locally via Wi-Fi or remotely via the Shelly app, a web browser or integration with home automation systems. The built-in web interface allows you not only to remotely turn devices on and off, but also to configure settings and read power consumption data. Remote access works anywhere the device has an Internet connection - no central hub is required. Shelly 1PM Gen4 offers extensive integration with external systems - it supports MQTT, HTTPS, Web Hooks, KNXnet/IP and scripts written in ShellyScript, among others. You can create schedules (up to 20 tasks) and scenes to automate devices based on time, days of the week or weather conditions. Multi-standard communication The Shelly 1PM Gen4 supports 4 major communication standards - Wi-Fi (802.11 b/g/n), Bluetooth 5.0, Zigbee (802.15.4) and Matter. This makes it seamlessly integrate with popular platforms such as Alexa, Google Assistant, Samsung SmartThings and Home Assistant. The controller can also act as a Zigbee and Wi-Fi signal repeater, strengthening the coverage of these networks in IoT installations. Measuring energy consumption and protecting the installation The device features a built-in wattmeter and ammeter, allowing real-time monitoring of the power consumption of connected devices. In addition, the data record can be analyzed in the app. Measuring energy consumption makes it easier to optimize power consumption in the home or office. An integrated internal temperature sensor takes care of safety by protecting the device from overheating. General
Shelly
1PMGen4
37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inches
27 g / 0.95 oz
0.4 Nm / 3.5 lbin
0.2 to 2.5 mm² / 24 to 14 AWG (wire, wire, sleeve)
6 to 7 mm / 0.24 to 0.28 in.
Wall console
Plastic
Red
Gray
-20 °C to 40 °C / -5 °F to 105 °F
30% to 70% RH
2000 m / 6562 ft
110-240 V~ ; 24-30 V⎓
< 1 W
Yes
Overcurrent circuit breaker according to EN60898-1 (characteristic B or C, rated current max. 16 A, breaking capacity min. 6 kA, energy limitation class 3)
Yes
Yes
Yes
802.11 b/g/n
2412 - 2472 MHz
< 20 dBm
Up to 30 m indoors / 50 m outdoors (depending on conditions)
5.0
2402 - 2480 MHz
< 4 dBm
Up to 10 m indoors / 30 m outdoors (depending on conditions)
802.15.4
Yes
2400 - 2483.5 MHz
< 20 dBm
Up to 100 m indoors / 300 m outdoors (depending on conditions)
ESP-Shelly-C68F
8 MB
20
20 with 5 URLs per webhook
Yes
Yes

Specifikācija

ManufacturerModel

Physical parameters

DimensionsWeightMaximum terminal tightening torqueCable cross sectionWire stripping lengthMountingHousing materialHousing colorClamp color

Environmental conditions

Operating temperatureOperating humidityMaximum altitude

Electrical parameters

Power supplyPower consumptionNeutral wire requiredExternal protection

Sensors and measurements

Voltmeter (AC)Ammeter (AC)Internal temperature sensor

Wi-Fi

ProtocolRF bandRF powerRange

Bluetooth

ProtocolRF bandRF powerRange

Zigbee

ProtocolZigbee repeaterRF bandwidthRF powerRange

Microcontroller unit

CPUFlash memory

Software functionality

SchedulesWebhooks (URL shares)ScriptsMQTT

Description
Description	Shelly 1 PM Gen4 Controller Zigbee/Matter The Shelly 1PM Gen4 is a compact built-in switch with power metering that combines several wireless communication standards - Zigbee, Wi-Fi, Bluetooth and Matter. The device allows you to remotely control connected power consumers, and with accurate power measurement it allows you to analyze energy consumption in real time. Thanks to its small dimensions, it can be successfully installed in flush-mounted boxes, behind sockets or light switches. Full control in your hands The controller can be operated locally via Wi-Fi or remotely via the Shelly app, a web browser or integration with home automation systems. The built-in web interface allows you not only to remotely turn devices on and off, but also to configure settings and read power consumption data. Remote access works anywhere the device has an Internet connection - no central hub is required. Shelly 1PM Gen4 offers extensive integration with external systems - it supports MQTT, HTTPS, Web Hooks, KNXnet/IP and scripts written in ShellyScript, among others. You can create schedules (up to 20 tasks) and scenes to automate devices based on time, days of the week or weather conditions. Multi-standard communication The Shelly 1PM Gen4 supports 4 major communication standards - Wi-Fi (802.11 b/g/n), Bluetooth 5.0, Zigbee (802.15.4) and Matter. This makes it seamlessly integrate with popular platforms such as Alexa, Google Assistant, Samsung SmartThings and Home Assistant. The controller can also act as a Zigbee and Wi-Fi signal repeater, strengthening the coverage of these networks in IoT installations. Measuring energy consumption and protecting the installation The device features a built-in wattmeter and ammeter, allowing real-time monitoring of the power consumption of connected devices. In addition, the data record can be analyzed in the app. Measuring energy consumption makes it easier to optimize power consumption in the home or office. An integrated internal temperature sensor takes care of safety by protecting the device from overheating. General
Shelly
1PMGen4
37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inches
27 g / 0.95 oz
0.4 Nm / 3.5 lbin
0.2 to 2.5 mm² / 24 to 14 AWG (wire, wire, sleeve)
6 to 7 mm / 0.24 to 0.28 in.
Wall console
Plastic
Red
Gray
-20 °C to 40 °C / -5 °F to 105 °F
30% to 70% RH
2000 m / 6562 ft
110-240 V~ ; 24-30 V⎓
< 1 W
Yes
Overcurrent circuit breaker according to EN60898-1 (characteristic B or C, rated current max. 16 A, breaking capacity min. 6 kA, energy limitation class 3)
Yes
Yes
Yes
802.11 b/g/n
2412 - 2472 MHz
< 20 dBm
Up to 30 m indoors / 50 m outdoors (depending on conditions)
5.0
2402 - 2480 MHz
< 4 dBm
Up to 10 m indoors / 30 m outdoors (depending on conditions)
802.15.4
Yes
2400 - 2483.5 MHz
< 20 dBm
Up to 100 m indoors / 300 m outdoors (depending on conditions)
ESP-Shelly-C68F
8 MB
20
20 with 5 URLs per webhook
Yes
Yes
