Ražotājs: SHELLY

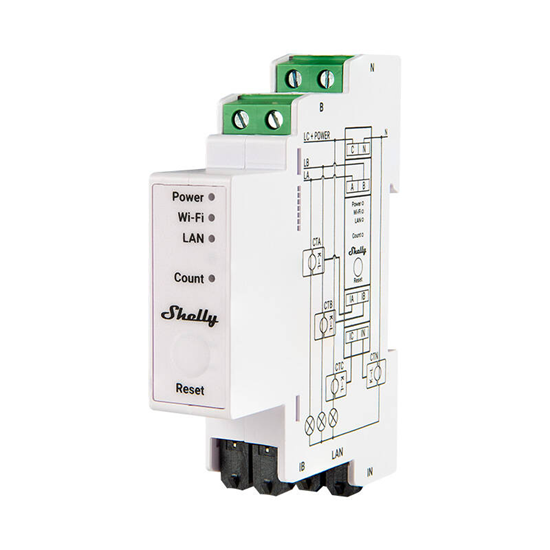

Shelly 2-phase Energy Meter Shelly PRO 3EM 120A Wi-Fi

€128,68 ar pvn

Artikuls: ST09382243

Preces kods: Pro3EM

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
LV	2 - 5 dienās	342	€128,68 ar pvn
	3 - 6 dienās	342	€131,02 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Manufacturer Model AC Power Supply Voltage Power Consumption Internal Temperature Sensor Voltmeters (RMS for each phase) Voltmeter Accuracy Ampermeters (RMS via current transformers for each phase and Neutral) Compatible Current Transformer (CT) Ampermeter Accuracy Active and Apparent Power and Energy Meters Channel Calibration at Minimum Load No-Load Threshold Measurement Data Storage Wi-Fi Protocol Wi-Fi Range Bluetooth Protocol Bluetooth Range CPU Flash Memory Dimensions Weight Mounting Housing Material Ambient Temperature Humidity Maximum Altitude

Description
Description	Shelly PRO 3EM 120A WiFi Dual-Channel Electric Energy Meter The Shelly Pro 3EM 120A is a professional three-phase electric energy meter that can be installed on a DIN rail. The device reports accumulated energy with 1% accuracy as well as real-time voltage, current, and power for each phase. It stores data for the last 60 days with a resolution of one minute for each phase, enabling precise analysis. It can operate independently on a local LAN and/or Wi-Fi network or be controlled via a home automation cloud service using MQTT, HTTP, and WebSocket protocols. Furthermore, it offers advanced scripting capabilities and extended monitoring options.
Shelly
SPEM-003CEBEU120
100 - 260 V, 50/60 Hz
< 3 W
Yes
100 - 260 V
±1%
0 - 120 A
CT 120A
±1% (2 - 120 A), ±2% (1 - 2 A), ±5% (0 - 1 A)
Active and apparent power, active and apparent energy, power factor, active fundamental energy, and reactive fundamental energy
500 W per channel
30 VA per channel
At least 60 days with 1-minute data resolution
802.11 b/g/n
Up to 30 m indoors and 50 m outdoors
4.2
Up to 10 m indoors and 30 m outdoors
ESP32-D0WDQ6
16 MB
94 x 19 x 69 ±0.5 mm
62 ±1 g
DIN rail
Plastic
-20°C to +40°C
30% to 70% RH
2000 m

Specifikācija

Description
Description	Shelly PRO 3EM 120A WiFi Dual-Channel Electric Energy Meter The Shelly Pro 3EM 120A is a professional three-phase electric energy meter that can be installed on a DIN rail. The device reports accumulated energy with 1% accuracy as well as real-time voltage, current, and power for each phase. It stores data for the last 60 days with a resolution of one minute for each phase, enabling precise analysis. It can operate independently on a local LAN and/or Wi-Fi network or be controlled via a home automation cloud service using MQTT, HTTP, and WebSocket protocols. Furthermore, it offers advanced scripting capabilities and extended monitoring options.
Shelly
SPEM-003CEBEU120
100 - 260 V, 50/60 Hz
< 3 W
Yes
100 - 260 V
±1%
0 - 120 A
CT 120A
±1% (2 - 120 A), ±2% (1 - 2 A), ±5% (0 - 1 A)
Active and apparent power, active and apparent energy, power factor, active fundamental energy, and reactive fundamental energy
500 W per channel
30 VA per channel
At least 60 days with 1-minute data resolution
802.11 b/g/n
Up to 30 m indoors and 50 m outdoors
4.2
Up to 10 m indoors and 30 m outdoors
ESP32-D0WDQ6
16 MB
94 x 19 x 69 ±0.5 mm
62 ±1 g
DIN rail
Plastic
-20°C to +40°C
30% to 70% RH
2000 m
