    • Shelly Dimmer Gen3 WiFi Light Controller
    Ražotājs: SHELLY

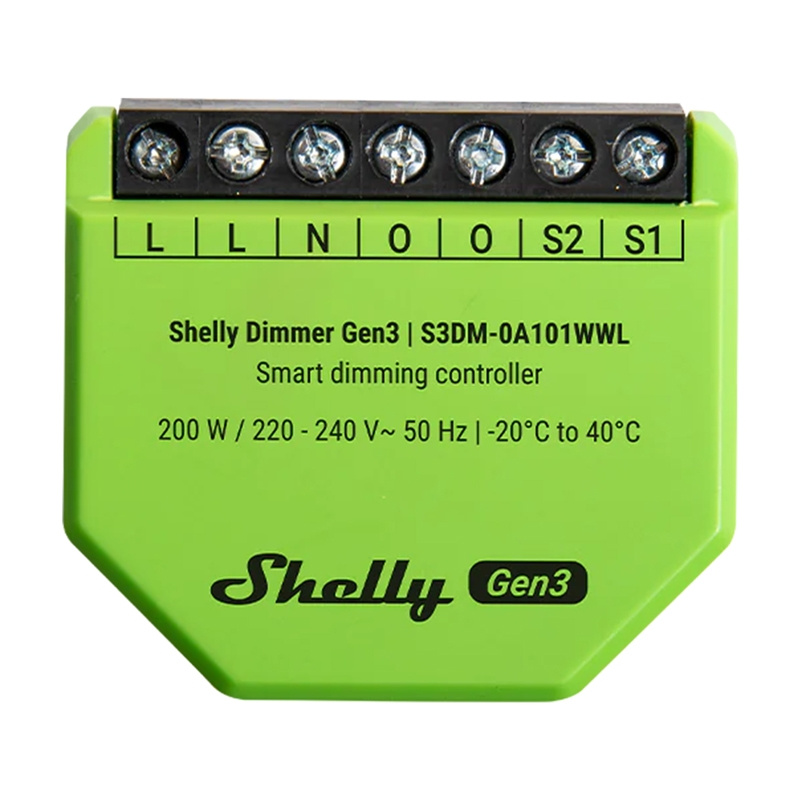

    Shelly Dimmer Gen3 WiFi Light Controller


    €46,84 ar pvn

    Artikuls: ST09589809
    Preces kods: DimmerGen3
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena

    Specifikācija
    ManufacturerModel

    Physical parameters

    DimensionsWeightMaximum terminal tightening torqueCable cross sectionLength of stripped wireMountingHousing materialCase colorColor of connectors

    Environmental conditions

    Operating temperatureOperating humidityMaximum altitude.

    Electrical parameters

    Power supplyPower consumptionNo neutral wireMinimum load without neutral wire and without BypassDimming typeExternal protectionShort-circuit protection

    Output circuit parameters

    Maximum output power

    Sensors and measurements

    Voltage range (AC)Accuracy of voltage measurementCurrent range (AC)Accuracy of current measurementInternal temperature sensor

    Wi-Fi

    ProtocolRF bandRF powerRange

    Bluetooth

    ProtocolRF bandMaximum RF powerRange

    Microprocessor unit

    CPUClock frequencyFlash memory

    Firmware features

    SchedulesWebhooks (URL shares)ScriptsMQTTAdvanced schedulingKVS (Key-Value Store)
    Description

    Shelly Dimmer Gen3 WiFi Light Controller

    The Shelly Dimmer Gen3 is a compact, single-circuit light dimmer that allows precise control of lighting brightness from a smartphone, tablet, computer or home automation system. It works over a Wi-Fi local network without the need for an additional hub, and also supports remote control via the cloud. It can work with or without a neutral wire. The device also offers Wi-Fi signal amplification, interoperability with Bluetooth and BLE Gateway, and a range of automation options, including schedules, scripts and integration with systems like Home Assistant, Google Home, Alexa or SmartThings.

    Working with and without a neutral wire

    The Shelly Dimmer Gen3 allows installation in both systems with and without a neutral wire, which is key when retrofitting existing installations. For operation without a neutral wire, a Bypass module is required if the load is less than 20 watts - such a solution prevents the lamp from accidentally glowing after it is turned off.

    Accurate measurements and protection

    When the neutral wire is connected, the device allows the measurement of voltage (180-240 V), current (0-3 A) and energy consumption. These measurements are made with an accuracy of ±5%. In addition, the device is equipped with an internal temperature sensor and short-circuit and overload protection. Note: these functions work properly only when connected with a neutral conductor.

    Convenient control and precise dimming

    The product supports trailing edge mode, which provides smooth dimming of a wide range of light sources - from LEDs (up to 150 W) to halogen bulbs (up to 200 W) and electronic transformers. Automatic dimmer calibration guarantees a uniform dimming effect regardless of the type of light source. Built-in functions such as minimum and maximum brightness setting, transition time adjustment and night mode allow full control over lighting - both manually and through schedules.

    Automation and advanced schedules

    Shelly Dimmer Gen3 supports up to 20 schedules and 20 webhooks (with 5 URLs for each). It allows you to create advanced scenarios using scripts and local actions. You can schedule brightness changes, transition times and set automatic light on/off. With support for MQTT, KVS and virtual components, deep integration with advanced building automation systems is possible.

    General

    Shelly
    DimmerGen3
    38 x 42.5 x 16.5 mm / 1.50 x 1.67 × 0.65 inches
    24.3 g / 0.86 oz
    0.4 Nm / 3.5 lbin
    0.2 to 2.5 mm² / 24 to 14 AWG (solid, multi-strand, sleeves)
    5 to 6 mm / 0.20 to 0.24 in.
    Wall box
    Plastic
    Green, print: black
    Black
    -20°C to 40°C / -5°F to 105°F
    30% to 70% RH
    2000 m / 6562 ft
    220-240 V~, 50 Hz
    < 1,5 W
    Yes
    20 W
    Trailing edge
    16 A, characteristic B or C, 6 kA breaking capacity, energy limitation class 3
    Yes
    200 W
    180-240 V
    ±5% (when used with neutral conductor)
    0-3 A
    ±5 % (when used with neutral conductor)
    Yes
    802.11 b/g/n
    2412-2472 MHz
    < 20 dBm
    Up to 30 m indoors / 50 m outdoors (depending on conditions)
    4.2
    2402-2480 MHz
    < 4 dBm
    Up to 10 m indoors / 30 m outdoors (depending on conditions)
    ESP32 C3 / STM32 G051
    ESP32 C3 - 40 MHz
    8 MB
    20
    20 with 5 URLs per webhook
    Yes
    Yes
    Yes
    Yes
