Ražotājs: SHELLY

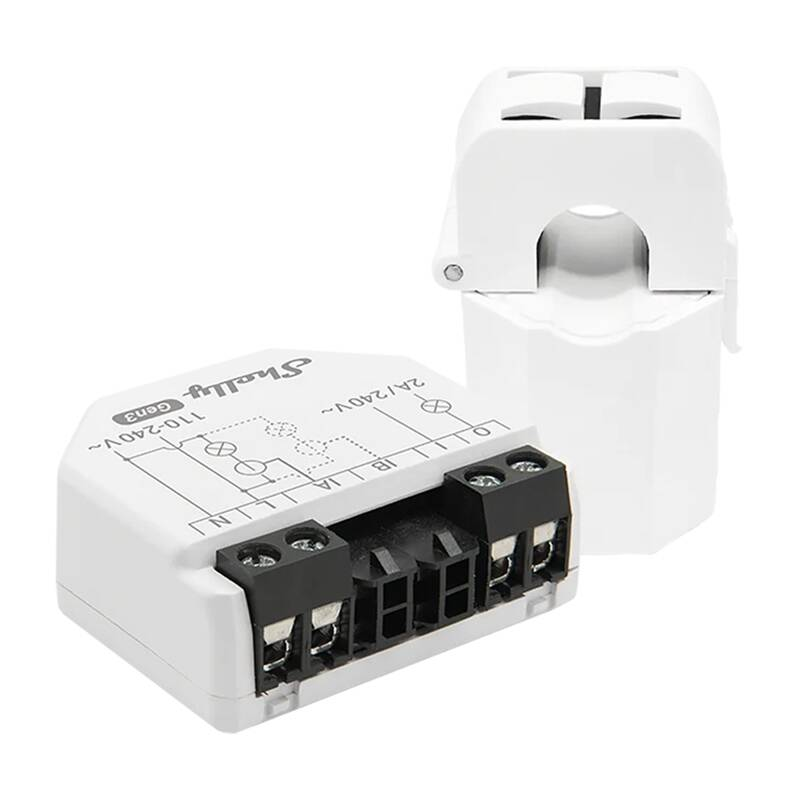

Shelly EM gen3 energy measurement controller

€82,51 ar pvn

Artikuls: ST09583884

Preces kods: EMgen3

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
		3 - 6 dienās	51	€82,51 ar pvn

Daudzums:

Specifikācijas

Specifikācija

ManufacturerModelDimensionsWeightMaximum tightening torque of screw terminalsWire cross sectionWire stripping lengthMountingHousing materialCase colorColor of connectorsAmbient temperatureAmbient humidityMaximum altitudeVoltagePower consumptionExternal protectionMaximum voltageMaximum currentVoltage rangeVoltage accuracyCurrent rangeAccuracy of currentCompatible current transformersMeasurement functionsCross-channel calibration - minimum loadNo-load thresholdData storageData exportInternal temperature sensorWiFi protocolWi-Fi RF bandwidthMaximum RF Wi-Fi powerWi-Fi rangeBluetooth protocolBluetooth RF bandMaximum Bluetooth RF powerBluetooth rangeProcessorFlash memorySchedulesWebhooks (URL shares)ScriptsMQTTEncryptionAuthenticationDedicated application

Description
Description	Shelly EM gen3 energy measurement controller The Shelly EM Gen3 is not only an accurate energy monitor, but also a powerful tool for managing high power consumption devices for cost optimization. With advanced features, easy installation and innovative technology, this controller is the perfect solution for both single-phase homes and more demanding buildings. With the Shelly app, you can monitor your home's energy today - gain control, save money and drive efficiency! Monitor and optimize energy consumption The Shelly EM Gen3 controller is an advanced tool for smart energy management in your home. By precisely monitoring the power consumption of connected devices, it allows you to identify consumption patterns and optimize the operation of equipment. The device can be easily installed in standard electrical boxes, behind outlets or light switches, making it an ideal solution even for places with limited space. With Shelly EM Gen3, you can significantly reduce your electricity bills while ensuring performance and energy efficiency. Wi-Fi and Bluetooth connectivity - full control without an additional HUB The controller supports Wi-Fi and Bluetooth connections, allowing you to quickly and easily integrate it into your home network without the need for additional devices. You can also use it as a Bluetooth gateway, which increases flexibility in managing other devices. Advanced control features The Shelly EM Gen3 offers the ability to connect up to two current transformers without the need for additional wiring. With a built-in voltage-free contact, you can control high-power consumption devices such as heaters, heat pumps and hot tubs. What's more, the smart scenes function allows integration with other Shelly devices, which opens the door to creating personalized energy-saving scenarios. Local data storage and analysis The controller records data locally in one-minute increments, storing it for up to 10 days without a connection to the cloud. Once synchronized with the cloud, the user can access historical data from the last 365 days. Such functionality allows for detailed analysis of energy consumption over a long period and easy tracking of expenses. Full support for scripting and future Matter technology Shelly EM Gen3 fully supports scripting, allowing local control and customization of functions. The device is designed with the future in mind - with double the memory compared to the Plus series and Shelly's advanced chip, it allows you to upgrade to Matter and seamlessly integrate with other devices. In the Shelly Smart Control app, you can create virtual devices, integrating third-party products into a cohesive management system. Included energy measurement controller current transformer user manual
Shelly
EM gen3
37 x 42 x 16 mm
EM Gen3: 23 g; CT 50A: 50 g
0.4 Nm
0.2 to 2.5 mm² (solid, multi-stranded, sleeve lugs)
6 to 7 mm
Wall console, electrical cabinet
Plastic
White, dark gray
Black
-20 °C to 40 °C
30% to 70% RH
2000 m
110 - 240 V~ 50/60 Hz
< 1.2 W
2 A, trip characteristic B or C, breaking capacity 6 kA, energy limit class 3
240 V~
2 A/240 V~
110-240 V~ 50/60 Hz
±2%
0 - 80 A
±2% (2 - 50 A); ±2% (1 - 2 A); ±5% (0 - 1 A)
CT 50A (included), CT 80A
Active and apparent power, active and apparent energy, power factor, basic active and reactive energy
500 W
30 VA per channel
At least 10 days with a resolution of 1 minute
CSV for PQ values, JSON via RPC
Yes
802.11 b/g/n
2412 - 2472 MHz
< 20 dBm
Up to 30 m indoors and 50 m outdoors (depending on conditions)
4.2
2402 - 2480 MHz
< 4 dBm
Up to 10 m indoors and 30 m outdoors (depending on conditions)
ESP-Shelly-C38F
8 MB
Yes
20 with 5 URLs per webhook
Yes
Yes
Yes (transport level)
Yes (application and transport level)
Shelly Smart Control
