    Ražotājs: SHELLY

    Shelly Universal WiFi controller Shelly Plus UNI


    €22,43 ar pvn

    Artikuls: ST08359839
    Preces kods: PlusUNI
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Manufacturer Model Power supply Power consumption Resistance of digital inputs Trigger voltage of digital inputs Maximum switching voltage Maximum switching current Voltmeter Trigger voltage counter pulse input Maximum pulse frequency of the counter Supported external sensors Wi-Fi protocol Wi-Fi range Bluetooth protocol Bluetooth range CPU Flash memory Schedules Webhooks (URL shares) Scripts MQTT CoAP Dimensions Weight Ambient temperature Humidity
    Description

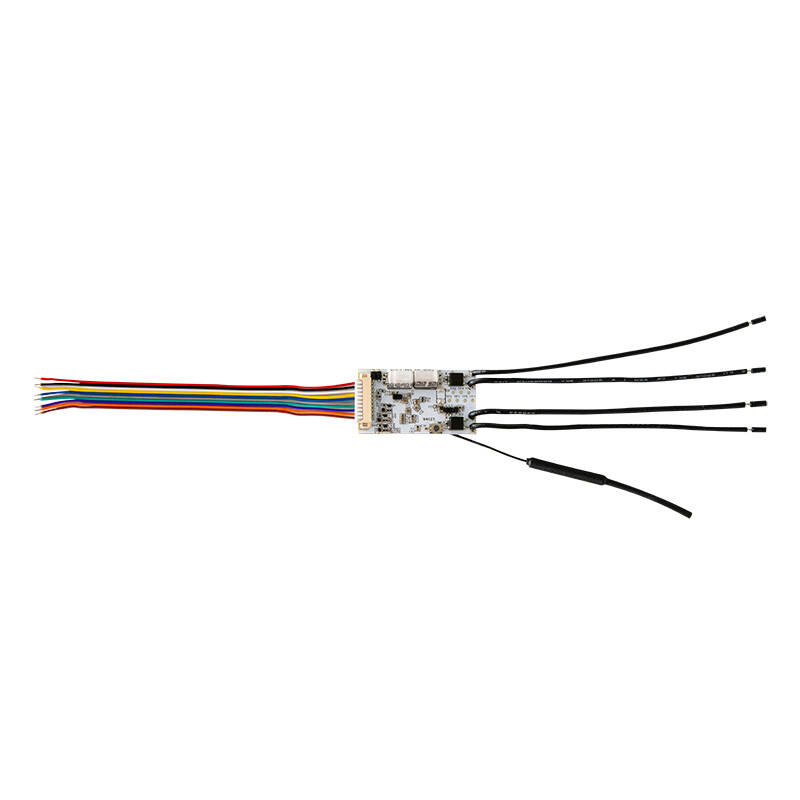

    Shelly Plus UNI universal WiFi controller

    With Shelly Plus Uni you will gain full control over your electrical devices, no matter where you are. With the controller you can remotely control lighting, heating or ventilation using your smartphone, tablet, computer or home automation system. It is equipped with two solid-state relays with potential-free contacts, a pulse counter, analog inputs and two digital inputs. It can operate autonomously on a local Wi-Fi network or be controlled via cloud-based home automation services. It also has a built-in web interface that allows you to monitor and control the device, as well as customize its settings.

    Control from a distance

    Whether you're at work, on vacation or simply in another part of the house, you can check and freely control devices connected to the Shelly Plus UNI - all you need is Internet access! This universal module is also compatible with popular platforms such as Google, Samsung SmartThings and Alexa. So you can easily integrate it into your existing systems and enjoy an even wider range of possibilities.

    Shelly
    Plus UNI
    8-24 VAC; 9-28 VDC; 5 VDC (stabilized, via +5 VDC and GND)
    < 1 W
    50 kΩ
    1.5 V (active low level)
    30 V
    300 mA
    0-15 VDC / 0-30 VDC (dual band)
    1.5 V (active low level)
    1 kHz
    One DHT22 or up to five DS18B20s
    802.11 b/g/n
    Up to 30 m indoors and up to 50 m outdoors
    4.2
    Up to 10 m inside and up to 30 m outside
    ESP32
    4 MB
    20
    20 with 5 URLs per webhook
    Yes
    Yes
    No
    40 x 21 x 7 mm
    8,5 g
    -20°C to 40°C
    30% to 70% RH
