Ražotājs: SHUTTLE

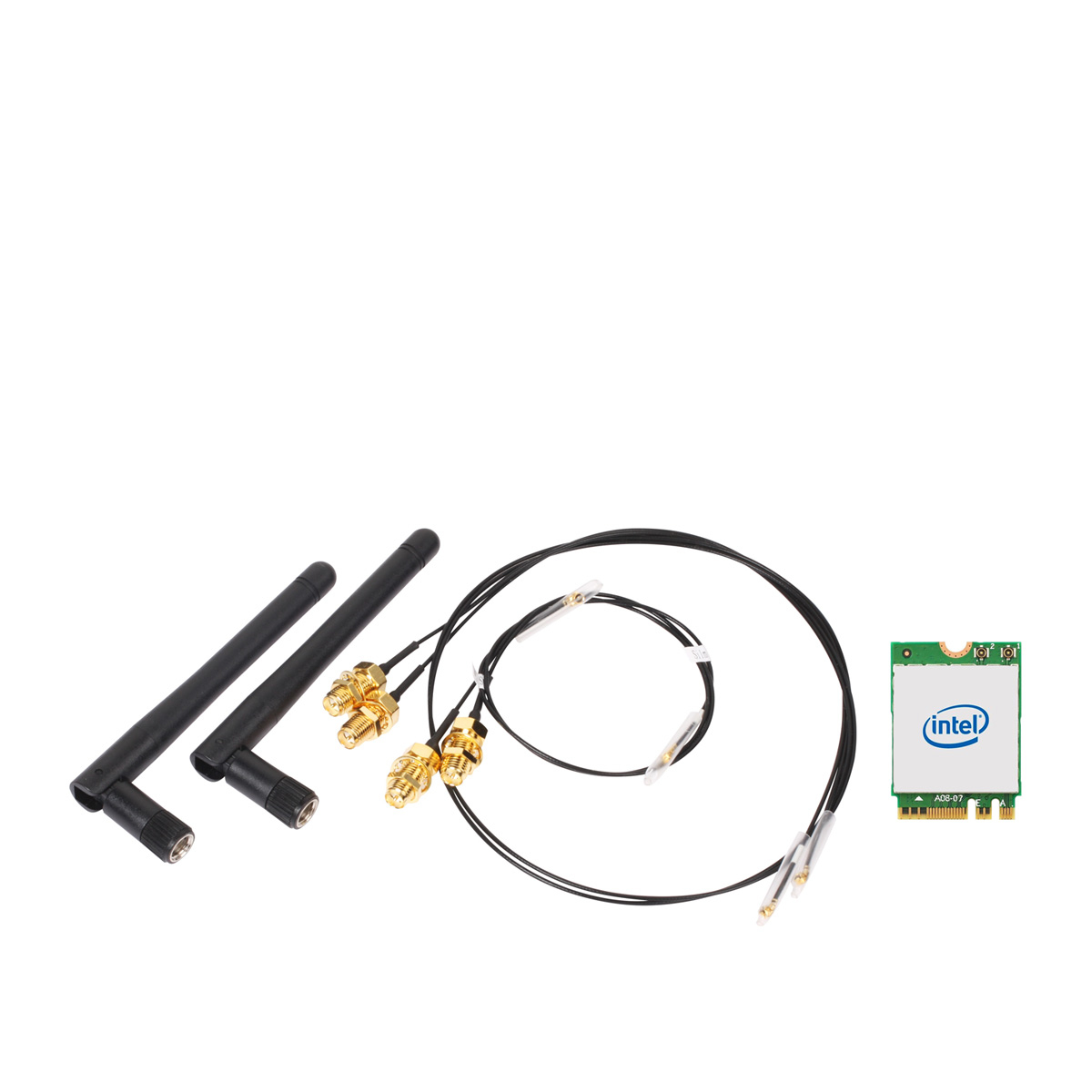

Shuttle WLN-M1 - Intel WLAN-ax/Bluetooth Combo Kit with M.2 card, cables and external antennas

€60,54 ar pvn

Artikuls: ST06615939

Preces kods: WLN-M1

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	39	€60,54 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
Maximum data transfer rate	2400 Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Security algorithms	64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
Bluetooth	Yes
Bluetooth version	5.2
Internal	Yes
Component for	PC/Laptop
Antenna	Yes
Antenna design	External
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Country of origin	China
Compatible products	DH410(S), DH470, DH610(S), DH670, XH510G(2), XH610(V),DL10J, DL20N(6), DH02Ux, SH310R4(V2), SH370R6(V2)(Plus), SH370R8, SH510R4, SH570R6 (Plus), SH570R8, SW580R8, P20U, P22U, P51U(3), P52U(3), X50V7xx, X50V8xx, EN01J3, EN01J4,NC10Ux series,
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Operating temperature (T-T)	0 - 80 °C
Width	30 mm
Depth	22 mm
Height	2.4 mm
Antenna length	10.8 cm
Antenna diameter	1 cm
Quick installation guide	Yes
Harmonized System (HS) code	85176990
Detachable antenna(s)	Yes
Antennas quantity	2
Supported Under vPro	No
Description
Description	Shuttle WLN-M1 - Intel WLAN-ax/Bluetooth Combo Kit with M.2 card, cables and external antennas. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2400 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Specifikācija

Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
Maximum data transfer rate	2400 Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Security algorithms	64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
Bluetooth	Yes
Bluetooth version	5.2
Internal	Yes
Component for	PC/Laptop
Antenna	Yes
Antenna design	External
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Country of origin	China
Compatible products	DH410(S), DH470, DH610(S), DH670, XH510G(2), XH610(V),DL10J, DL20N(6), DH02Ux, SH310R4(V2), SH370R6(V2)(Plus), SH370R8, SH510R4, SH570R6 (Plus), SH570R8, SW580R8, P20U, P22U, P51U(3), P52U(3), X50V7xx, X50V8xx, EN01J3, EN01J4,NC10Ux series,
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Operating temperature (T-T)	0 - 80 °C
Width	30 mm
Depth	22 mm
Height	2.4 mm
Antenna length	10.8 cm
Antenna diameter	1 cm
Quick installation guide	Yes
Harmonized System (HS) code	85176990
Detachable antenna(s)	Yes
Antennas quantity	2
Supported Under vPro	No
Description
Description	Shuttle WLN-M1 - Intel WLAN-ax/Bluetooth Combo Kit with M.2 card, cables and external antennas. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2400 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
