Ražotājs: D-LINK

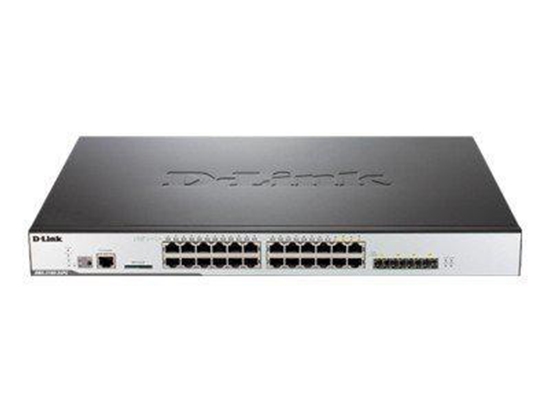

D-Link DWS-3160-24PC network switch Managed L2+ Power over Ethernet (PoE) 1U

€2291,73 ar pvn

Artikuls: ST07819087

Preces kods: DWS-3160-24PC

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	1	€2291,73 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	20
SFP/SFP+ slots quantity	4
SFP module slots quantity	4
Console port	RJ-45
ExpressCard slot	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x
10G support	No
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	3965
MAC address table	16000 entries
Switching capacity	48 Gbit/s
Supported data transfer rates	1 Gbit/s
Store-and-forward	Yes
Number of static routes	512
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	2 MB
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA2
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Multicast support	Yes
Management protocols	SNMP v1, 2c, 3
Supported network protocols	IPv6
Rack mounting	Yes
Stackable	Yes
Form factor	1U
LED indicators	Yes
Safety	UL/cUL, CB
Electromagnetic compatibility	FCC A, CE, ICES-003, C-Tick, VCCI
Noise level	39.8 dB
Mean time between failures (MTBF)	282541 h
Power consumption (typical)	467 W
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1593.5 BTU/h
Width	440 mm
Depth	310 mm
Height	44 mm
Weight	5.24 kg
Description
Description	D-Link DWS-3160-24PC. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 20, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifikācija

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	20
SFP/SFP+ slots quantity	4
SFP module slots quantity	4
Console port	RJ-45
ExpressCard slot	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x
10G support	No
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	3965
MAC address table	16000 entries
Switching capacity	48 Gbit/s
Supported data transfer rates	1 Gbit/s
Store-and-forward	Yes
Number of static routes	512
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	2 MB
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA2
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Multicast support	Yes
Management protocols	SNMP v1, 2c, 3
Supported network protocols	IPv6
Rack mounting	Yes
Stackable	Yes
Form factor	1U
LED indicators	Yes
Safety	UL/cUL, CB
Electromagnetic compatibility	FCC A, CE, ICES-003, C-Tick, VCCI
Noise level	39.8 dB
Mean time between failures (MTBF)	282541 h
Power consumption (typical)	467 W
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1593.5 BTU/h
Width	440 mm
Depth	310 mm
Height	44 mm
Weight	5.24 kg
Description
Description	D-Link DWS-3160-24PC. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 20, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
