TOA WS-200 UHF Wireless set

WS-200 rokas bezvadu mikrofona sistēma ar 4 kanālu izvēli un automātisku meklēšanu. Sistēma sastāv no rokas bezvadu mikrofona un raidītāja. Rokas mikrofons aprīkots ar dinamisku kardioīda kapsulu. Satabila skaņas pārraide, apkārtējo RF trokšņu samazināšanas mehānisms (trokšņu filtrs).

Uztvērēja darbības frekvence 719.025 - 864.850 MHz
Kanāli 4
Tips Superhetrodyne diversity
Frekvenču diapazons 100 - 15,000 Hz
T.H.D< 1 %
S/N ratio> 90 dB

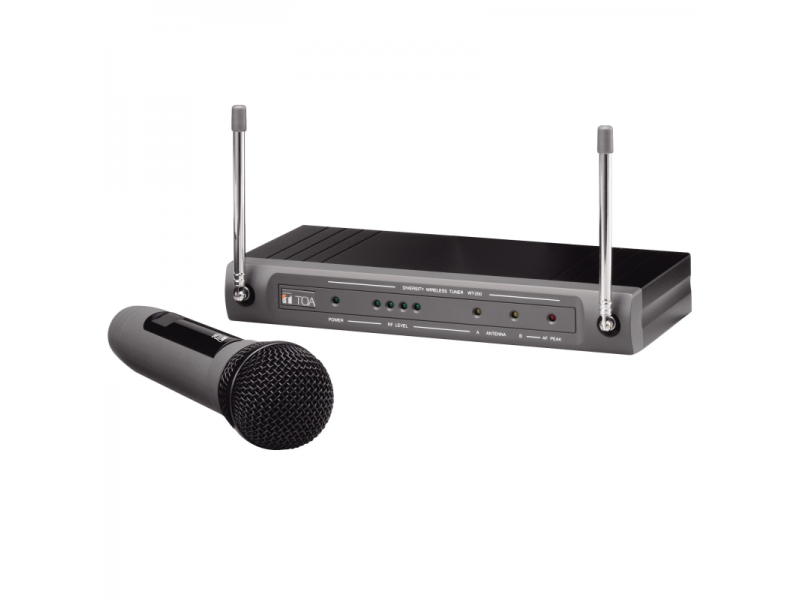

The WS-200 includes a handheld wireless microphone and a diversity tuner. The Wireless Microphone employs a dynamic microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 4 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The diversity tuner is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Carrier frequency range 719.025 - 864.850 MHz
Channels 4
Frequency response 100 - 15,000 Hz
Type superhetrodyne diversity
T.H.D< 1 %
S/N ratio> 90 dB

The WS-200 includes a handheld wireless microphone and a diversity tuner. The Wireless Microphone employs a dynamic microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 4 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The diversity tuner is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Carrier frequency range 719.025 - 864.850 MHz
Channels 4
Frequency response 100 - 15,000 Hz
Type superhetrodyne diversity
T.H.D< 1 %
S/N ratio> 90 dB
