Ražotājs: UNI-T

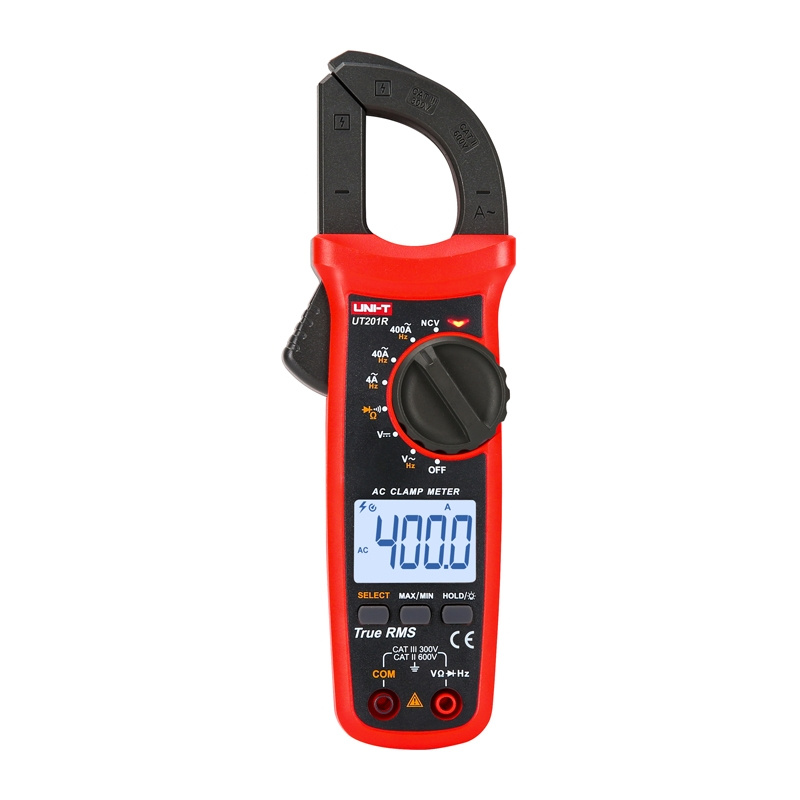

Uni-T UT201R Digital Clamp Meter

€32,22 ar pvn

Artikuls: ST10472671

Preces kods: UT201R

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
	6 - 12 dienās	80	€32,22 ar pvn
PL	8 - 15 dienās	80	€39,70 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Specifikācija 1
Specifikācija 2

ManufacturerModelTypeAC currentAC frequencyAC voltageAC voltage frequencyDC voltageResistanceMaximum readingFunctionsJaw openingPower supplySafetyDimensionsCertifications

Description
Description	Uni-T UT201R Digital Clamp Meter The Uni-T UT201R universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring AC current without having to open the circuit. Thanks to its clamp design, it allows for convenient and quick measurements in the field. Basic measurements for everyday work The UT201R model allows for measuring AC current up to 400 A and AC and DC voltage up to 600 V, making it well-suited for typical service and inspection tasks. Resistance and voltage frequency measurements further enhance its practical application when checking circuits and devices. User-friendly features The multimeter is equipped with True RMS, which provides more reliable results when measuring alternating signals. Features such as NCV, diode test, continuity test, Data Hold, Max/Min, and auto-off simplify daily work and enhance user convenience. Clear design and safe operation The large backlit screen makes it easy to read results, and the 28 mm jaw opening allows for a comfortable grip on the wire during measurement. Compliance with safety categories CAT II 600V and CAT III 300V allows the device to be used in typical electrical applications. Included Clamp meter Batteries x2 Test leads User manual Specifications
Uni-T
UT201R
Clamp meter
0.04~400A ±(2%+10)
50Hz~100Hz ±(1%+5)
600V ±(0.8%+5)
10Hz~10kHz ±(1%+5)
600V ±(0.5%+2)
40MΩ
4000
True RMS, NCV, diode test, continuity test, Data Hold, Max/Min, auto power off, LCD backlight
28 mm
2x 1.5V battery (R03)
CAT II 600V / CAT III 300V
215 x 63 x 36 mm
CE, UKCA, cETLus

Description

Uni-T UT201R Digital Clamp Meter The Uni-T UT201R universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring AC current without having to open the circuit. Thanks to its clamp design, it allows for convenient and quick measurements in the field. Basic measurements for everyday work The UT201R model allows for measuring AC current up to 400 A and AC and DC voltage up to 600 V, making it well-suited for typical service and inspection tasks. Resistance and voltage frequency measurements further enhance its practical application when checking circuits and devices. User-friendly features The multimeter is equipped with True RMS, which provides more reliable results when measuring alternating signals. Features such as NCV, diode test, continuity test, Data Hold, Max/Min, and auto-off simplify daily work and enhance user convenience. Clear design and safe operation The large backlit screen makes it easy to read results, and the 28 mm jaw opening allows for a comfortable grip on the wire during measurement. Compliance with safety categories CAT II 600V and CAT III 300V allows the device to be used in typical electrical applications. Included Clamp meter Batteries x2 Test leads User manual Specifications Manufacturer Uni-T Model UT201R Type Clamp meter AC current 0.04~400A ±(2%+10) AC frequency 50Hz~100Hz ±(1%+5) AC voltage 600V ±(0.8%+5) AC voltage frequency 10Hz~10kHz ±(1%+5) DC voltage 600V ±(0.5%+2) Resistance 40MΩ Maximum reading 4000 Functions True RMS, NCV, diode test, continuity test, Data Hold, Max/Min, auto power off, LCD backlight Jaw opening 28 mm Power supply 2x 1.5V battery (R03) Safety CAT II 600V / CAT III 300V Dimensions 215 x 63 x 36 mm Certifications CE, UKCA, cETLus

Specifikācija

Specifikācija 1
Specifikācija 2

ManufacturerModelTypeAC currentAC frequencyAC voltageAC voltage frequencyDC voltageResistanceMaximum readingFunctionsJaw openingPower supplySafetyDimensionsCertifications

Description
Description	Uni-T UT201R Digital Clamp Meter The Uni-T UT201R universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring AC current without having to open the circuit. Thanks to its clamp design, it allows for convenient and quick measurements in the field. Basic measurements for everyday work The UT201R model allows for measuring AC current up to 400 A and AC and DC voltage up to 600 V, making it well-suited for typical service and inspection tasks. Resistance and voltage frequency measurements further enhance its practical application when checking circuits and devices. User-friendly features The multimeter is equipped with True RMS, which provides more reliable results when measuring alternating signals. Features such as NCV, diode test, continuity test, Data Hold, Max/Min, and auto-off simplify daily work and enhance user convenience. Clear design and safe operation The large backlit screen makes it easy to read results, and the 28 mm jaw opening allows for a comfortable grip on the wire during measurement. Compliance with safety categories CAT II 600V and CAT III 300V allows the device to be used in typical electrical applications. Included Clamp meter Batteries x2 Test leads User manual Specifications
Uni-T
UT201R
Clamp meter
0.04~400A ±(2%+10)
50Hz~100Hz ±(1%+5)
600V ±(0.8%+5)
10Hz~10kHz ±(1%+5)
600V ±(0.5%+2)
40MΩ
4000
True RMS, NCV, diode test, continuity test, Data Hold, Max/Min, auto power off, LCD backlight
28 mm
2x 1.5V battery (R03)
CAT II 600V / CAT III 300V
215 x 63 x 36 mm
CE, UKCA, cETLus

Description
