    • Uni-T UT661D Pipeline Blockage Detector
    Ražotājs: UNI-T

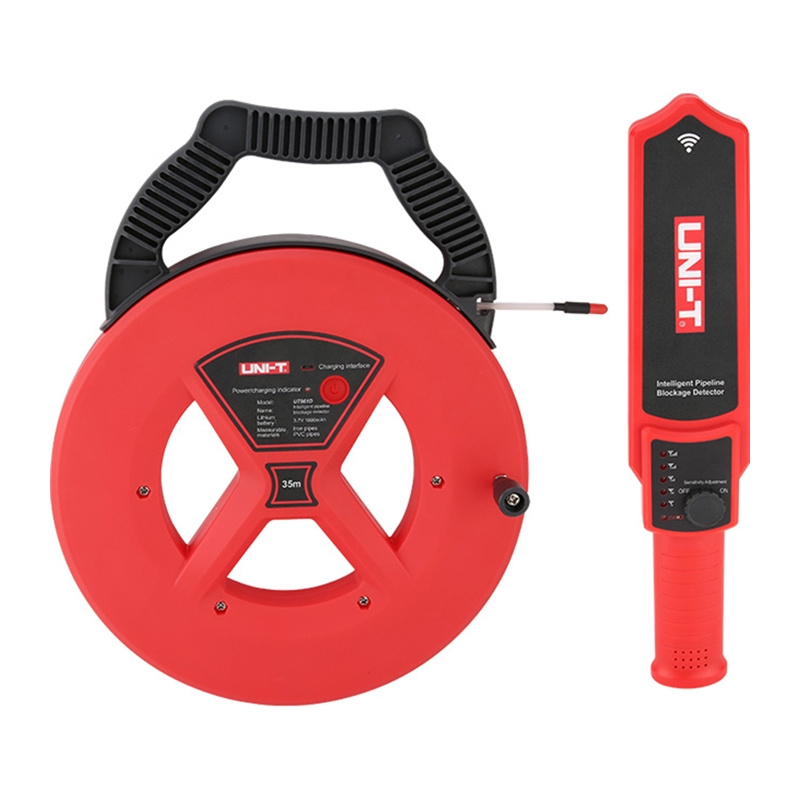

    Uni-T UT661D Pipeline Blockage Detector


    €81,14 ar pvn

    Artikuls: ST10474003
    Preces kods: UT661D
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL

    Specifikācija
    Description
    <h3>Uni-T UT661D Pipe Blockage Detector</h3> <p>The Uni-T UT661D is a pipe blockage detector that allows you to quickly locate the site of a blockage inside a pipe system without having to dismantle the entire pipe section. The device works with both plastic and metal pipes, and the 35-meter signal cable enables operation on longer sections of the system. With a maximum detection depth of up to 50 cm, this model is well-suited for daily diagnostics in hard-to-reach areas.</p> <p> </p><h3>Effective blockage detection and user-friendly operation</h3> <p>The UT661D consists of a transmitter and a receiver, allowing for more precise determination of the blockage’s location within the pipe. The device uses both audible and visual signals, facilitating faster identification of the problem area when working in various conditions. Additional advantages include a high sound output level, a low-battery indicator, and an IP67-rated probe, which enhances safety and durability during use.</p> <p> </p><h3>Ready for field use</h3> <p>The transmitter and receiver use built-in 3.7 V 1800 mAh lithium batteries, and the battery life is up to 10 hours. The device can operate at temperatures ranging from -20°C to 60°C with a humidity of 10–80% RH, which increases its practicality in various working conditions. The kit includes a charging cable and a probe kit, making the unit ready for use immediately after setup.</p> <p> </p> <h3>Included</h3> <ul class="list-disc pl-5"><li>Transmitter</li><li>Receiver</li><li>Charging cable</li><li>Probe kit</li><li>User manual</li><li>Warranty card</li></ul> <p> </p> <h3>Specifications</h3> ManufacturerUni-TModelUT661DTypePipe blockage detectorTransmitterYesReceiverYesSignal cable35 mMaximum detection depth50 cmPipe materialsPlastic and metal pipesAudible signalYesVisual signalYesLow battery indicatorYesProbe waterproof ratingIP67Transmitter current (off)<2 µATransmitter operating current230~310 mAReceiver current (off)<2 µAReceiver standby current<40 mAMaximum operating current of receiver150~450 mACharging current450~550 mASound output test at 1 cm93 dBSound output test at 0.5 m75 dBBattery life10 hoursOperating temperature-20°C~60°COperating humidity10~80% RHTransmitter batteryBuilt-in 3.7V 1800mAh lithium batteryReceiver batteryBuilt-in 3.7V 1800mAh lithium batteryColorRed and grayTransmitter weight1.42 kgReceiver weight0.26 kgTransmitter dimensions38 x 30 x 42 mmReceiver dimensions40 x 38 x 80 mmCertificationsCE, RoHS
    Description
    Uni-T UT661D Pipe Blockage Detector The Uni-T UT661D is a pipe blockage detector designed for quickly locating blockages in pipes without the need to dismantle the system. The device works with both plastic and metal pipes, and the 35-meter signal cable allows for inspection of longer sections. A maximum detection depth of up to 50 cm allows for effective blockage detection even in hard-to-reach areas. The kit consists of a transmitter and receiver that help precisely pinpoint the location of the problem, while audible and visual alerts facilitate quick identification of the blockage. Designed for use in various conditions The device is equipped with an IP67-rated probe, which increases its durability and safety when operating in demanding environments. A low-battery indicator and a loud audible signal improve user comfort during diagnostics. The transmitter and receiver use built-in 3.7 V lithium-ion batteries with a capacity of 1800 mAh, providing up to 10 hours of operation on a single charge. With an operating temperature range of -20°C to 60°C, plus the included charging cable and probe kit, the UT661D is ready for use both in the field and during daily maintenance tasks. Included Transmitter Receiver Charging cable Probe kit User manual Warranty card   Specifications Manufacturer Uni-T Model UT661D Type Pipe blockage detector Transmitter Yes Receiver Yes Signal cable 35 m Maximum detection depth 50 cm Pipe materials Plastic, metal Audible signal Yes Visual signal Yes Low battery indicator Yes Probe waterproof rating IP67 Transmitter current (off) <2 µA Transmitter operating current 230–310 mA Receiver current (off) <2 µA Receiver standby current <40 mA Maximum receiver operating current 150–450 mA Charging current 450–550 mA Sound output test at 1 cm 93 dB Sound output test at 0.5 m 75 dB Battery life 10 hours Operating temperature -20°C~60°C Operating humidity 10~80% RH Transmitter battery Built-in 3.7V 1800mAh lithium battery Receiver battery Built-in 3.7V 1800mAh lithium battery Color Red and gray Transmitter weight 1.42 kg Receiver weight 0.26 kg Transmitter dimensions 38 x 30 x 42 mm Receiver dimensions 40 x 38 x 80 mm Certifications CE, RoHS

    Specifikācija
    Description
    <h3>Uni-T UT661D Pipe Blockage Detector</h3> <p>The Uni-T UT661D is a pipe blockage detector that allows you to quickly locate the site of a blockage inside a pipe system without having to dismantle the entire pipe section. The device works with both plastic and metal pipes, and the 35-meter signal cable enables operation on longer sections of the system. With a maximum detection depth of up to 50 cm, this model is well-suited for daily diagnostics in hard-to-reach areas.</p> <p> </p><h3>Effective blockage detection and user-friendly operation</h3> <p>The UT661D consists of a transmitter and a receiver, allowing for more precise determination of the blockage’s location within the pipe. The device uses both audible and visual signals, facilitating faster identification of the problem area when working in various conditions. Additional advantages include a high sound output level, a low-battery indicator, and an IP67-rated probe, which enhances safety and durability during use.</p> <p> </p><h3>Ready for field use</h3> <p>The transmitter and receiver use built-in 3.7 V 1800 mAh lithium batteries, and the battery life is up to 10 hours. The device can operate at temperatures ranging from -20°C to 60°C with a humidity of 10–80% RH, which increases its practicality in various working conditions. The kit includes a charging cable and a probe kit, making the unit ready for use immediately after setup.</p> <p> </p> <h3>Included</h3> <ul class="list-disc pl-5"><li>Transmitter</li><li>Receiver</li><li>Charging cable</li><li>Probe kit</li><li>User manual</li><li>Warranty card</li></ul> <p> </p> <h3>Specifications</h3> ManufacturerUni-TModelUT661DTypePipe blockage detectorTransmitterYesReceiverYesSignal cable35 mMaximum detection depth50 cmPipe materialsPlastic and metal pipesAudible signalYesVisual signalYesLow battery indicatorYesProbe waterproof ratingIP67Transmitter current (off)<2 µATransmitter operating current230~310 mAReceiver current (off)<2 µAReceiver standby current<40 mAMaximum operating current of receiver150~450 mACharging current450~550 mASound output test at 1 cm93 dBSound output test at 0.5 m75 dBBattery life10 hoursOperating temperature-20°C~60°COperating humidity10~80% RHTransmitter batteryBuilt-in 3.7V 1800mAh lithium batteryReceiver batteryBuilt-in 3.7V 1800mAh lithium batteryColorRed and grayTransmitter weight1.42 kgReceiver weight0.26 kgTransmitter dimensions38 x 30 x 42 mmReceiver dimensions40 x 38 x 80 mmCertificationsCE, RoHS
    Description
    Uni-T UT661D Pipe Blockage Detector The Uni-T UT661D is a pipe blockage detector designed for quickly locating blockages in pipes without the need to dismantle the system. The device works with both plastic and metal pipes, and the 35-meter signal cable allows for inspection of longer sections. A maximum detection depth of up to 50 cm allows for effective blockage detection even in hard-to-reach areas. The kit consists of a transmitter and receiver that help precisely pinpoint the location of the problem, while audible and visual alerts facilitate quick identification of the blockage. Designed for use in various conditions The device is equipped with an IP67-rated probe, which increases its durability and safety when operating in demanding environments. A low-battery indicator and a loud audible signal improve user comfort during diagnostics. The transmitter and receiver use built-in 3.7 V lithium-ion batteries with a capacity of 1800 mAh, providing up to 10 hours of operation on a single charge. With an operating temperature range of -20°C to 60°C, plus the included charging cable and probe kit, the UT661D is ready for use both in the field and during daily maintenance tasks. Included Transmitter Receiver Charging cable Probe kit User manual Warranty card   Specifications Manufacturer Uni-T Model UT661D Type Pipe blockage detector Transmitter Yes Receiver Yes Signal cable 35 m Maximum detection depth 50 cm Pipe materials Plastic, metal Audible signal Yes Visual signal Yes Low battery indicator Yes Probe waterproof rating IP67 Transmitter current (off) <2 µA Transmitter operating current 230–310 mA Receiver current (off) <2 µA Receiver standby current <40 mA Maximum receiver operating current 150–450 mA Charging current 450–550 mA Sound output test at 1 cm 93 dB Sound output test at 0.5 m 75 dB Battery life 10 hours Operating temperature -20°C~60°C Operating humidity 10~80% RH Transmitter battery Built-in 3.7V 1800mAh lithium battery Receiver battery Built-in 3.7V 1800mAh lithium battery Color Red and gray Transmitter weight 1.42 kg Receiver weight 0.26 kg Transmitter dimensions 38 x 30 x 42 mm Receiver dimensions 40 x 38 x 80 mm Certifications CE, RoHS
