    Ražotājs: UNI-T

    UNI-T UT682 wire locator


    €38,33 ar pvn

    Artikuls: ST09791455
    Preces kods: UT682
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL

    Specifikācija
    Description

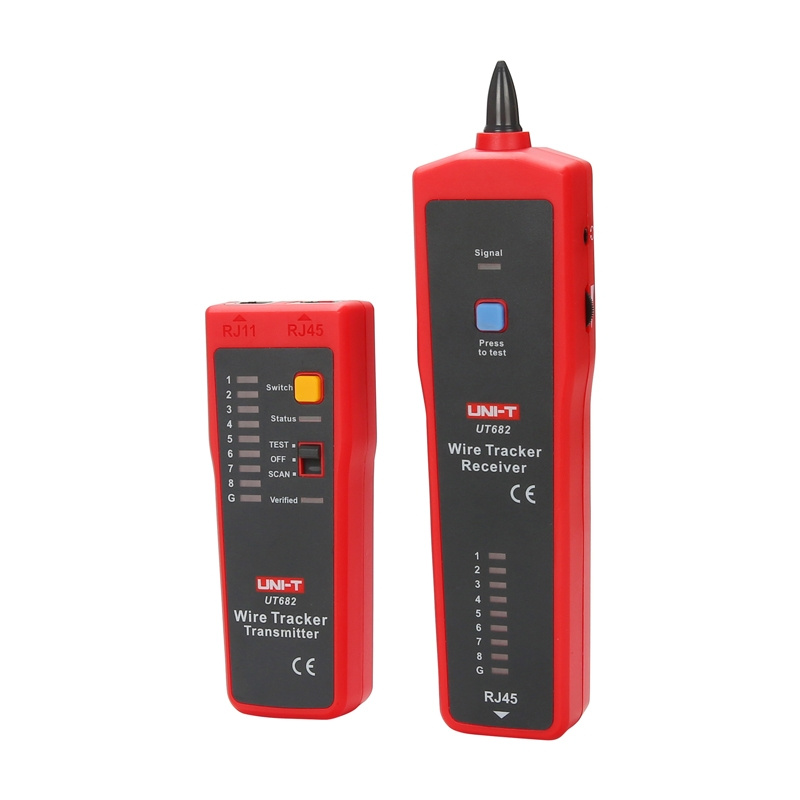

    UNI-T UT682 wire locator


    The UNI-T UT682 wire locator is a versatile diagnostic tool designed for installers and service technicians of networks, telephony and low-voltage systems. With a rich set of features and broad compatibility with different types of cables - from LAN, to coaxial, to telephone and electrical - the UT682 becomes a universal helper for locating breaks, short circuits and connection errors. It's a solution that combines precision measurement with ease of use.




    Fast cable localization and testing


    The UT682 allows efficient tracking of cables over long distances - up to 3,000 meters for telephone lines and up to 320 meters for unshielded cables. In addition, it allows testing line continuity, detecting short circuits, breaks, determining DC voltage polarity and accurately checking the connection sequence in LAN cables with a set of 9 LEDs. This is a tool that significantly speeds up work.




    Diagnostics with light and sound signals


    The UT682 is equipped with signal strength light indication and the ability to adjust the volume of the receiver, which increases the precision of work in difficult conditions. Cable tracking is also possible in active switchboards, making the device extremely useful for extensive network installations.




    Robust design and long battery life


    The UT682 transmitter and receiver are powered by classic 9V batteries, which allows them to be used immediately without recharging. Their compact form and low weight (transmitter: 125 g, receiver: 153 g) ensure convenience even when working for hours. The device comes with a practical case and a set of cables, ready for use immediately after unpacking.





    Included


    • UNI-T UT682 transmitter and receiver
    • 2 × 9V battery
    • RJ11 cable
    • RJ11 cable with crocodiles
    • RJ45 cable
    • Carrying case
    • User manual








    ManufacturerUni-TManufacturer codeUT682CertificationsCE, UKCASupported cablesLAN, telephone lines, coaxial cables, electrical cablesCable trackingTelephone lines - up to 3000 m; unshielded/shielded - up to 320 mSwitchboard trackingYes (≥100 m)Short circuit/interruption testYesPolarity indication±(5V~52V)DC voltage level testYesWire sequence measurement9 independent LEDsOperating modesFast and slow selectableSignal strength indicatorYesPower supply for transmitter and receiver9V batteryHeadphone socketYesVolume controlYesReceiver operating current
    Description
    UNI-T UT682 wire locator The UNI-T UT682 wire locator is a versatile diagnostic tool designed for installers and service technicians of networks, telephony and low-voltage systems. With a rich set of features and broad compatibility with different types of cables - from LAN, to coaxial, to telephone and electrical - the UT682 becomes a universal helper for locating breaks, short circuits and connection errors. It's a solution that combines precision measurement with ease of use. Fast cable localization and testing The UT682 allows efficient tracking of cables over long distances - up to 3,000 meters for telephone lines and up to 320 meters for unshielded cables. In addition, it allows testing line continuity, detecting short circuits, breaks, determining DC voltage polarity and accurately checking the connection sequence in LAN cables with a set of 9 LEDs. This is a tool that significantly speeds up work. Diagnostics with light and sound signals The UT682 is equipped with signal strength light indication and the ability to adjust the volume of the receiver, which increases the precision of work in difficult conditions. Cable tracking is also possible in active switchboards, making the device extremely useful for extensive network installations. Robust design and long battery life The UT682 transmitter and receiver are powered by classic 9V batteries, which allows them to be used immediately without recharging. Their compact form and low weight (transmitter: 125 g, receiver: 153 g) ensure convenience even when working for hours. The device comes with a practical case and a set of cables, ready for use immediately after unpacking. Included UNI-T UT682 transmitter and receiver 2 × 9V battery RJ11 cable RJ11 cable with crocodiles RJ45 cable Carrying case User manual   Manufacturer Uni-T Manufacturer code UT682 Certifications CE, UKCA Supported cables LAN, telephone lines, coaxial cables, electrical cables Cable tracking Telephone lines - up to 3000 m; unshielded/shielded - up to 320 m Switchboard tracking Yes (≥100 m) Short circuit/interruption test Yes Polarity indication ±(5V~52V) DC voltage level test Yes Wire sequence measurement 9 independent LEDs Operating modes Fast and slow selectable Signal strength indicator Yes Power supply for transmitter and receiver 9V battery Headphone socket Yes Volume control Yes Receiver operating current Receiver standby current ~10 mA Voltage protection 52V DC Operating temperature range 0-40°C Operating humidity 20-75% RH Operating altitude ≤2000 m Net weight transmitter - 125 g, receiver - 153 g Dimensions Transmitter - 125 × 48 × 28 mm, receiver - 195 × 48 × 30 mm Color red-gray

    Specifikācija
    Description

    UNI-T UT682 wire locator


    The UNI-T UT682 wire locator is a versatile diagnostic tool designed for installers and service technicians of networks, telephony and low-voltage systems. With a rich set of features and broad compatibility with different types of cables - from LAN, to coaxial, to telephone and electrical - the UT682 becomes a universal helper for locating breaks, short circuits and connection errors. It's a solution that combines precision measurement with ease of use.




    Fast cable localization and testing


    The UT682 allows efficient tracking of cables over long distances - up to 3,000 meters for telephone lines and up to 320 meters for unshielded cables. In addition, it allows testing line continuity, detecting short circuits, breaks, determining DC voltage polarity and accurately checking the connection sequence in LAN cables with a set of 9 LEDs. This is a tool that significantly speeds up work.




    Diagnostics with light and sound signals


    The UT682 is equipped with signal strength light indication and the ability to adjust the volume of the receiver, which increases the precision of work in difficult conditions. Cable tracking is also possible in active switchboards, making the device extremely useful for extensive network installations.




    Robust design and long battery life


    The UT682 transmitter and receiver are powered by classic 9V batteries, which allows them to be used immediately without recharging. Their compact form and low weight (transmitter: 125 g, receiver: 153 g) ensure convenience even when working for hours. The device comes with a practical case and a set of cables, ready for use immediately after unpacking.





    Included


    • UNI-T UT682 transmitter and receiver
    • 2 × 9V battery
    • RJ11 cable
    • RJ11 cable with crocodiles
    • RJ45 cable
    • Carrying case
    • User manual








    ManufacturerUni-TManufacturer codeUT682CertificationsCE, UKCASupported cablesLAN, telephone lines, coaxial cables, electrical cablesCable trackingTelephone lines - up to 3000 m; unshielded/shielded - up to 320 mSwitchboard trackingYes (≥100 m)Short circuit/interruption testYesPolarity indication±(5V~52V)DC voltage level testYesWire sequence measurement9 independent LEDsOperating modesFast and slow selectableSignal strength indicatorYesPower supply for transmitter and receiver9V batteryHeadphone socketYesVolume controlYesReceiver operating current
    Description
    UNI-T UT682 wire locator The UNI-T UT682 wire locator is a versatile diagnostic tool designed for installers and service technicians of networks, telephony and low-voltage systems. With a rich set of features and broad compatibility with different types of cables - from LAN, to coaxial, to telephone and electrical - the UT682 becomes a universal helper for locating breaks, short circuits and connection errors. It's a solution that combines precision measurement with ease of use. Fast cable localization and testing The UT682 allows efficient tracking of cables over long distances - up to 3,000 meters for telephone lines and up to 320 meters for unshielded cables. In addition, it allows testing line continuity, detecting short circuits, breaks, determining DC voltage polarity and accurately checking the connection sequence in LAN cables with a set of 9 LEDs. This is a tool that significantly speeds up work. Diagnostics with light and sound signals The UT682 is equipped with signal strength light indication and the ability to adjust the volume of the receiver, which increases the precision of work in difficult conditions. Cable tracking is also possible in active switchboards, making the device extremely useful for extensive network installations. Robust design and long battery life The UT682 transmitter and receiver are powered by classic 9V batteries, which allows them to be used immediately without recharging. Their compact form and low weight (transmitter: 125 g, receiver: 153 g) ensure convenience even when working for hours. The device comes with a practical case and a set of cables, ready for use immediately after unpacking. Included UNI-T UT682 transmitter and receiver 2 × 9V battery RJ11 cable RJ11 cable with crocodiles RJ45 cable Carrying case User manual   Manufacturer Uni-T Manufacturer code UT682 Certifications CE, UKCA Supported cables LAN, telephone lines, coaxial cables, electrical cables Cable tracking Telephone lines - up to 3000 m; unshielded/shielded - up to 320 m Switchboard tracking Yes (≥100 m) Short circuit/interruption test Yes Polarity indication ±(5V~52V) DC voltage level test Yes Wire sequence measurement 9 independent LEDs Operating modes Fast and slow selectable Signal strength indicator Yes Power supply for transmitter and receiver 9V battery Headphone socket Yes Volume control Yes Receiver operating current Receiver standby current ~10 mA Voltage protection 52V DC Operating temperature range 0-40°C Operating humidity 20-75% RH Operating altitude ≤2000 m Net weight transmitter - 125 g, receiver - 153 g Dimensions Transmitter - 125 × 48 × 28 mm, receiver - 195 × 48 × 30 mm Color red-gray
