    • Uni-T UT691-01 Visual Fault Locator
    Ražotājs: UNI-T

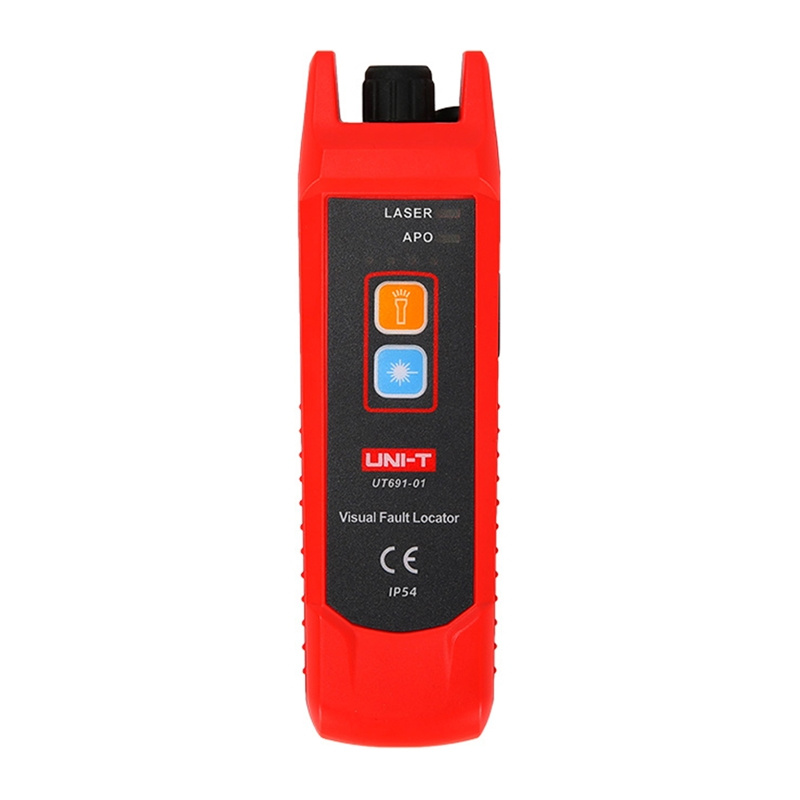

    Uni-T UT691-01 Visual Fault Locator


    €26,55 ar pvn

    Artikuls: ST10472267
    Preces kods: UT691-01
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL

    Specifikācija
    ManufacturerModelTypeLaser output powerFiber optic rangeRed light wavelengthFiber optic adapterBattery typeBattery lifeBattery status indicatorLaser modeLaser modeCharging voltage and currentAuto-offWarning symbolWarningButton durability testDrop testProtection classLED flashlightColorWeightDimensionsCertifications
    Description

    Uni-T UT691-01 Visual Fault Locator

    The Uni-T UT691-01 is a portable visual fault locator designed to detect faults in optical fibers, identify fibers along their entire length, and perform maintenance work on optical installations. The device uses visible red light with a wavelength of 650 ± 10 nm and offers two laser operating modes, facilitating quick diagnostics in the field. Its compact housing, non-slip design, and IP54 protection rating make this model well-suited for daily work in the construction and maintenance of fiber-optic networks.

    Effective fault location in shorter sections

    The UT691-01 model offers a laser output power of at least 1 mW and allows operation on fiber optic sections ranging from 2 to 3 km in length. The device is equipped with a universal 2.5 mm FC connector, which enhances ease of use for standard service applications. Continuous and pulse modes are available, making it easy to adapt the operating mode to specific tasks and measurement conditions.

    Convenient operation and readiness for use

    The locator uses a 3.7 V 1050 mAh lithium-polymer battery, which provides over 12 hours of operation. The device features a battery level indicator, an automatic shut-off function after 15 minutes, an LED flashlight, and resistance to drops from a height of 1 meter. Weighing 62 g and measuring 130 × 38 × 27 mm, the model remains convenient to carry and use on a daily basis.

    Included in the set

    • Locator
    • User manual

    Specifications

    Uni-T
    UT691-01
    Visual fault locator
    ≥1mW
    2~3km
    650 ± 10nm
    Universal 2.5mm FC connector
    3.7V 1050mAh lithium polymer battery
    12h
    4 blue LEDs
    Continuous
    Pulsed
    DC 5V, <1A
    15 min, manually adjustable
    Yes
    Yes
    5,000 times
    1 m
    IP54
    Yes
    Red and gray
    62 g
    130 mm x 38 mm x 27 mm
    CE, UKCA
    Description
    Uni-T UT691-01 Visual Fault Locator The Uni-T UT691-01 is a portable visual fault locator designed to detect faults in optical fibers, identify fibers along their entire length, and perform maintenance work on optical installations. The device uses visible red light with a wavelength of 650 ± 10 nm and offers two laser operating modes, facilitating quick diagnostics in the field. Its compact housing, non-slip design, and IP54 protection rating make this model well-suited for daily work in the construction and maintenance of fiber-optic networks. Effective fault location in shorter sections The UT691-01 model offers a laser output power of at least 1 mW and allows operation on fiber optic sections ranging from 2 to 3 km in length. The device is equipped with a universal 2.5 mm FC connector, which enhances ease of use for standard service applications. Continuous and pulse modes are available, making it easy to adapt the operating mode to specific tasks and measurement conditions. Convenient operation and readiness for use The locator uses a 3.7 V 1050 mAh lithium-polymer battery, which provides over 12 hours of operation. The device features a battery level indicator, an automatic shut-off function after 15 minutes, an LED flashlight, and resistance to drops from a height of 1 meter. Weighing 62 g and measuring 130 × 38 × 27 mm, the model remains convenient to carry and use on a daily basis. Included in the set Locator User manual   Specifications Manufacturer Uni-T Model UT691-01 Type Visual fault locator Laser output power ≥1mW Fiber optic range 2~3km Red light wavelength 650 ± 10nm Fiber optic adapter Universal 2.5mm FC connector Battery type 3.7V 1050mAh lithium polymer battery Battery life 12h Battery status indicator 4 blue LEDs Laser mode Continuous Laser mode Pulsed Charging voltage and current DC 5V, <1A Auto-off 15 min, manually adjustable Warning symbol Yes Warning Yes Button durability test 5,000 times Drop test 1 m Protection class IP54 LED flashlight Yes Color Red and gray Weight 62 g Dimensions 130 mm x 38 mm x 27 mm Certifications CE, UKCA

    Specifikācija
    ManufacturerModelTypeLaser output powerFiber optic rangeRed light wavelengthFiber optic adapterBattery typeBattery lifeBattery status indicatorLaser modeLaser modeCharging voltage and currentAuto-offWarning symbolWarningButton durability testDrop testProtection classLED flashlightColorWeightDimensionsCertifications
    Description

    Uni-T UT691-01 Visual Fault Locator

    The Uni-T UT691-01 is a portable visual fault locator designed to detect faults in optical fibers, identify fibers along their entire length, and perform maintenance work on optical installations. The device uses visible red light with a wavelength of 650 ± 10 nm and offers two laser operating modes, facilitating quick diagnostics in the field. Its compact housing, non-slip design, and IP54 protection rating make this model well-suited for daily work in the construction and maintenance of fiber-optic networks.

    Effective fault location in shorter sections

    The UT691-01 model offers a laser output power of at least 1 mW and allows operation on fiber optic sections ranging from 2 to 3 km in length. The device is equipped with a universal 2.5 mm FC connector, which enhances ease of use for standard service applications. Continuous and pulse modes are available, making it easy to adapt the operating mode to specific tasks and measurement conditions.

    Convenient operation and readiness for use

    The locator uses a 3.7 V 1050 mAh lithium-polymer battery, which provides over 12 hours of operation. The device features a battery level indicator, an automatic shut-off function after 15 minutes, an LED flashlight, and resistance to drops from a height of 1 meter. Weighing 62 g and measuring 130 × 38 × 27 mm, the model remains convenient to carry and use on a daily basis.

    Included in the set

    • Locator
    • User manual

    Specifications

    Uni-T
    UT691-01
    Visual fault locator
    ≥1mW
    2~3km
    650 ± 10nm
    Universal 2.5mm FC connector
    3.7V 1050mAh lithium polymer battery
    12h
    4 blue LEDs
    Continuous
    Pulsed
    DC 5V, <1A
    15 min, manually adjustable
    Yes
    Yes
    5,000 times
    1 m
    IP54
    Yes
    Red and gray
    62 g
    130 mm x 38 mm x 27 mm
    CE, UKCA
    Description
    Uni-T UT691-01 Visual Fault Locator The Uni-T UT691-01 is a portable visual fault locator designed to detect faults in optical fibers, identify fibers along their entire length, and perform maintenance work on optical installations. The device uses visible red light with a wavelength of 650 ± 10 nm and offers two laser operating modes, facilitating quick diagnostics in the field. Its compact housing, non-slip design, and IP54 protection rating make this model well-suited for daily work in the construction and maintenance of fiber-optic networks. Effective fault location in shorter sections The UT691-01 model offers a laser output power of at least 1 mW and allows operation on fiber optic sections ranging from 2 to 3 km in length. The device is equipped with a universal 2.5 mm FC connector, which enhances ease of use for standard service applications. Continuous and pulse modes are available, making it easy to adapt the operating mode to specific tasks and measurement conditions. Convenient operation and readiness for use The locator uses a 3.7 V 1050 mAh lithium-polymer battery, which provides over 12 hours of operation. The device features a battery level indicator, an automatic shut-off function after 15 minutes, an LED flashlight, and resistance to drops from a height of 1 meter. Weighing 62 g and measuring 130 × 38 × 27 mm, the model remains convenient to carry and use on a daily basis. Included in the set Locator User manual   Specifications Manufacturer Uni-T Model UT691-01 Type Visual fault locator Laser output power ≥1mW Fiber optic range 2~3km Red light wavelength 650 ± 10nm Fiber optic adapter Universal 2.5mm FC connector Battery type 3.7V 1050mAh lithium polymer battery Battery life 12h Battery status indicator 4 blue LEDs Laser mode Continuous Laser mode Pulsed Charging voltage and current DC 5V, <1A Auto-off 15 min, manually adjustable Warning symbol Yes Warning Yes Button durability test 5,000 times Drop test 1 m Protection class IP54 LED flashlight Yes Color Red and gray Weight 62 g Dimensions 130 mm x 38 mm x 27 mm Certifications CE, UKCA
