    • Value S/FTP Patch Cord Cat.8 (Class I), stranded, LSOH, white, 2 m
    Ražotājs: VALUE

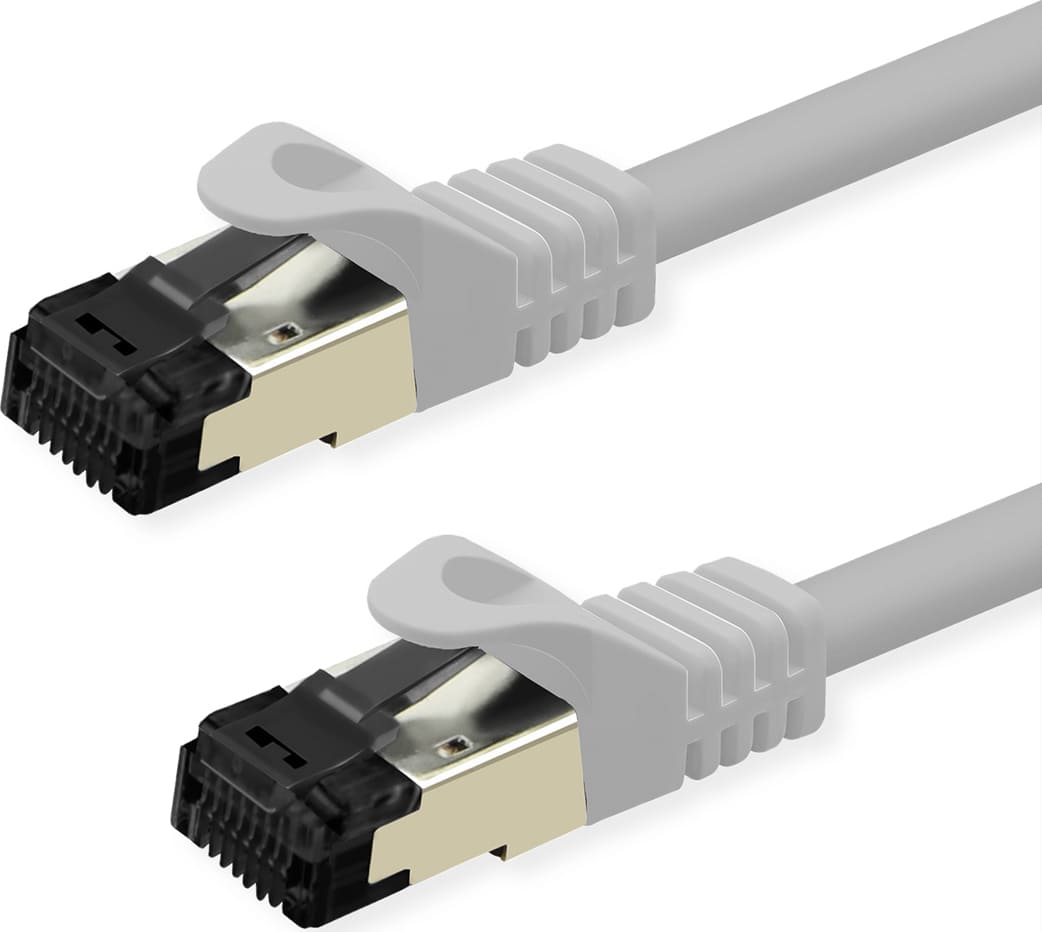

    Value S/FTP Patch Cord Cat.8 (Class I), stranded, LSOH, white, 2 m


    €6,64 ar pvn

    Artikuls: ST09928850
    Preces kods: 21.99.1872
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    power over ethernet (poe)yes
    manufacturerVALUE
    product groupTwisted Pair Cable
    product typeS/FTP patch cord (PiMF)
    colourwhite
    side 1 connector typeRJ-45
    side 1 connector genderMale
    side 2 connector typeRJ-45
    side 2 connector genderMale
    weight98
    height of packaging (single piece)20
    width of packaging (single piece)80
    depth of packaging (single piece)80
    package weight (single piece)0.08
    gross weight0.08
    transfer qualityCat8.1 / Class I
    scope of deliveryPatch cord
    material (external cable mantle)TPE-LSZH
    operating temperature min.-20
    operating temperature max.75
    cable lsohyes
    shield typeS/FTP (PiMF)
    quantity of wires8
    impedance100 Ohm
    conductor cross section (awg)AWG 26
    conductor typeStranded
    crossedno
    locking leveryes
    anti-kink sleeveMoulded-on
    external cable diameter6.2mm +/- 0.2mm
    connector type rj45Standard
    bend radius24,8 mm
    garums2
    Description

    Category 8, the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same cabling type and supports 25GBASE-T and 40GBASE-T short distance applications. Our Cat. 8 cables are halogen-free and flame-retardant (LSOH).

    • Prepared double shielded Twisted Pair cable with screened RJ45 connector on both ends
    • Suitable for PoE applications and multimedia applications were the extension is working over TP
    • Suitable for 10 GBit to IEEE 802.3an and for Power over Ethernet
    • Suitable for 25/40 GBit to IEEE 802.3bq applications (4-pair balanced twisted-pair cabling with 2 connectors over distances up to 30m)
    • High quality plugs with gold plated contacts
    • Contact settings 1:1, in accordance with the EIA/TIA 568 standard
    • Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium clad polyester foil

    For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
    21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
    21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
    21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
    21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)

    Specifikācija
    power over ethernet (poe)yes
    manufacturerVALUE
    product groupTwisted Pair Cable
    product typeS/FTP patch cord (PiMF)
    colourwhite
    side 1 connector typeRJ-45
    side 1 connector genderMale
    side 2 connector typeRJ-45
    side 2 connector genderMale
    weight98
    height of packaging (single piece)20
    width of packaging (single piece)80
    depth of packaging (single piece)80
    package weight (single piece)0.08
    gross weight0.08
    transfer qualityCat8.1 / Class I
    scope of deliveryPatch cord
    material (external cable mantle)TPE-LSZH
    operating temperature min.-20
    operating temperature max.75
    cable lsohyes
    shield typeS/FTP (PiMF)
    quantity of wires8
    impedance100 Ohm
    conductor cross section (awg)AWG 26
    conductor typeStranded
    crossedno
    locking leveryes
    anti-kink sleeveMoulded-on
    external cable diameter6.2mm +/- 0.2mm
    connector type rj45Standard
    bend radius24,8 mm
    garums2
    Description

    Category 8, the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same cabling type and supports 25GBASE-T and 40GBASE-T short distance applications. Our Cat. 8 cables are halogen-free and flame-retardant (LSOH).

    • Prepared double shielded Twisted Pair cable with screened RJ45 connector on both ends
    • Suitable for PoE applications and multimedia applications were the extension is working over TP
    • Suitable for 10 GBit to IEEE 802.3an and for Power over Ethernet
    • Suitable for 25/40 GBit to IEEE 802.3bq applications (4-pair balanced twisted-pair cabling with 2 connectors over distances up to 30m)
    • High quality plugs with gold plated contacts
    • Contact settings 1:1, in accordance with the EIA/TIA 568 standard
    • Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium clad polyester foil

    For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
    21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
    21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
    21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
    21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)
