    • Easylan FO Splice Housing, Grade C 19" 1U, 24 Ports, 24x LC-Duplex, OM4
    Ražotājs: EASYLAN

    Easylan FO Splice Housing, Grade C 19" 1U, 24 Ports, 24x LC-Duplex, OM4


    €230,02 ar pvn

    Artikuls: ST09015097
    Preces kods: LSB1C334
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    manufacturerEasyLan
    product groupNetwork Passive Components
    product typePatch Panel FO
    colourgrey
    side 1 connector typeLC
    weight4776.13
    height of packaging (single piece)50
    width of packaging (single piece)590
    depth of packaging (single piece)260
    package weight (single piece)3.146
    gross weight3.146
    height43.6
    width211.5
    depth482
    operating temperature min.-25
    operating temperature max.60
    quantity of ports24
    ral colourRAL 7035 Light grey
    fibre sectionMulti mode 50/125µm OM4
    cabinet system19"-Technique
    height units1
    Description

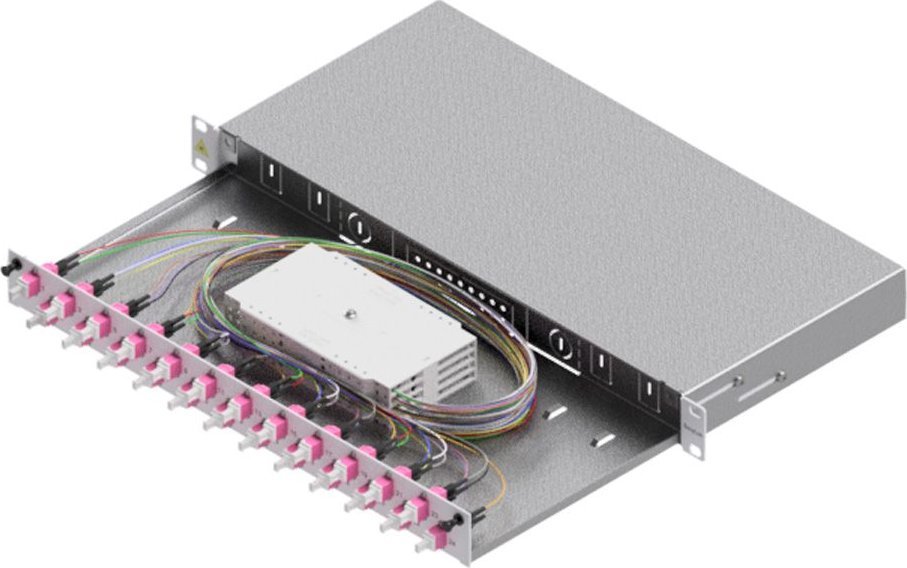

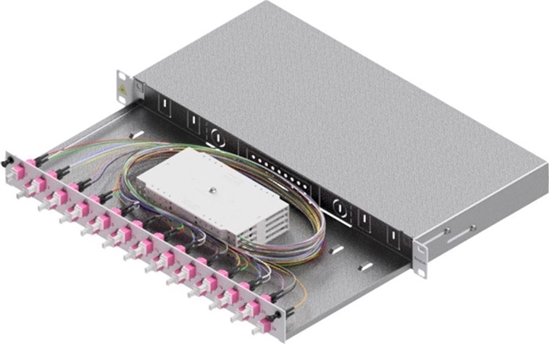

    EasyLan® FO Splice Housing, Grade C, 1U, 24 Ports, equipped with 24x LC-Duplex, type of fibers: OM4, RAL7035

    FO Splice Housing, Grade C 19" 1U:
    FO splice housing exentable with quick lock and exchangeable front panel for up to 48 fibers. For SC and LC couplings the front panel is also supplied with screw holes in order to affix couplings. The extensible depth of 200mm ensures comfortable access to the couplings. The box can also be offset by 40mm towards the rear. A breakout point is already integrated. The FO splice box extendable contains couplings grade C. Pigtails are ready for splicing, inserted and loaded.

    • Offsetable towards rear
    • Front panels and side parts powder-coated
    • Color: gray RAL 7035
    • Centered bolt for attaching up top 4 splice cassettes
    • The box can be tilted downward while open

    Specifikācija
    manufacturerEasyLan
    product groupNetwork Passive Components
    product typePatch Panel FO
    colourgrey
    side 1 connector typeLC
    weight4776.13
    height of packaging (single piece)50
    width of packaging (single piece)590
    depth of packaging (single piece)260
    package weight (single piece)3.146
    gross weight3.146
    height43.6
    width211.5
    depth482
    operating temperature min.-25
    operating temperature max.60
    quantity of ports24
    ral colourRAL 7035 Light grey
    fibre sectionMulti mode 50/125µm OM4
    cabinet system19"-Technique
    height units1
    Description

    EasyLan® FO Splice Housing, Grade C, 1U, 24 Ports, equipped with 24x LC-Duplex, type of fibers: OM4, RAL7035

    FO Splice Housing, Grade C 19" 1U:
    FO splice housing exentable with quick lock and exchangeable front panel for up to 48 fibers. For SC and LC couplings the front panel is also supplied with screw holes in order to affix couplings. The extensible depth of 200mm ensures comfortable access to the couplings. The box can also be offset by 40mm towards the rear. A breakout point is already integrated. The FO splice box extendable contains couplings grade C. Pigtails are ready for splicing, inserted and loaded.

    • Offsetable towards rear
    • Front panels and side parts powder-coated
    • Color: gray RAL 7035
    • Centered bolt for attaching up top 4 splice cassettes
    • The box can be tilted downward while open
