    Iepriekšējais produktsMainboard|GIGABYTE|Intel H6...
    Nākamais produktsMainboard|GIGABYTE|Intel H6...
    Ražotājs: GIGABYTE

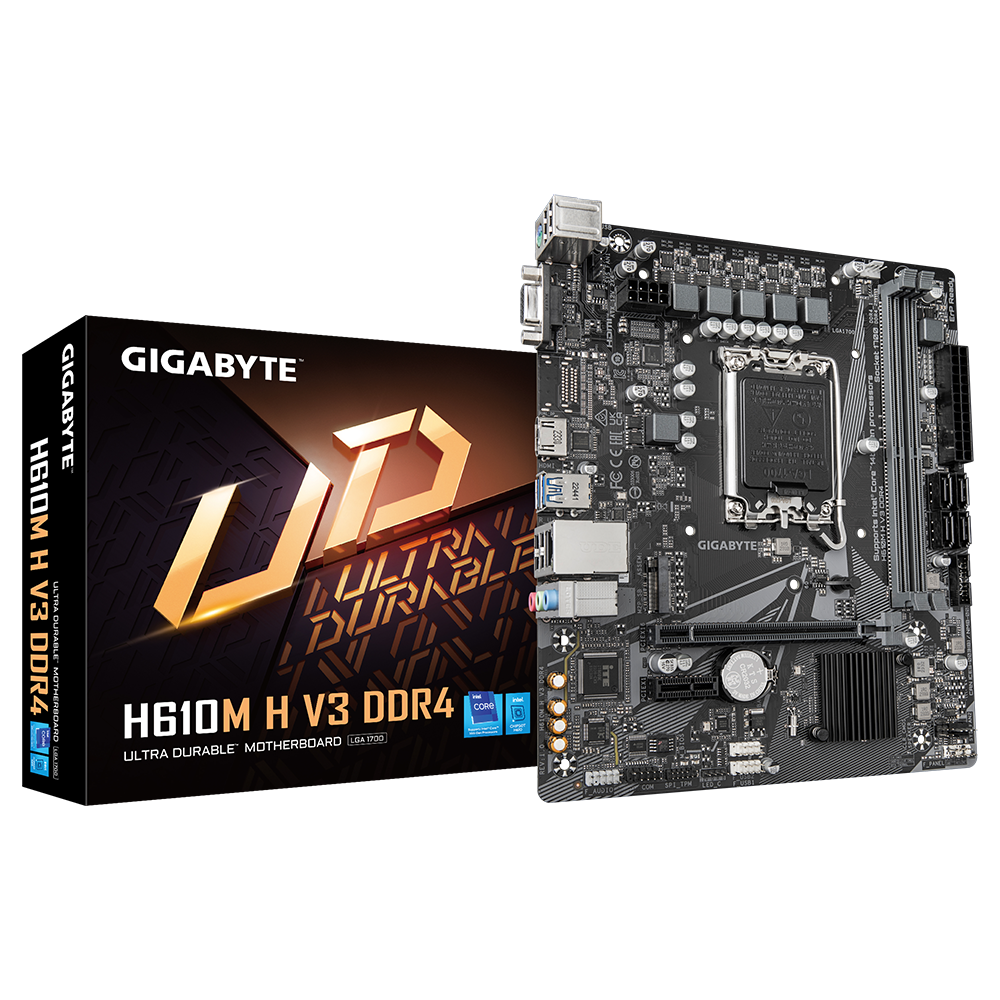

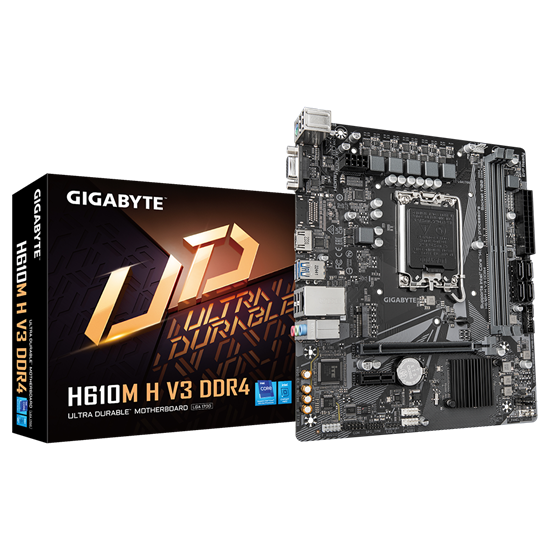

    Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610MHV3DDR4


    €74,22 ar pvn

    Artikuls: ST07961453
    Preces kods: H610M H V3 DDR4
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    PL
    LV
    LV

    Specifikācija
    Atmiņas tips DDR4
    CPU ligzda LGA 1700
    Video interfeiss D-Sub
    Plates izmērs (Form Factor) mATX
    Video interfeiss HDMI
    Video interfeiss DVI
    Model

    H610M H V3 DDR4
    CPU socketLGA1700
    Processor familyIntel Core
    Processor familyIntel Pentium
    Processor familyIntel Celeron
    Integrated CPUNo
    Chipset manufacturerIntel
    Chipset type

    Intel H610 Express Chipset
    Memory type DDR4
    Number of DDR4 slots2
    Memory bus frequency3200 MHz
    Memory bus frequency3000 MHz
    Memory bus frequency2666 MHz
    Memory bus frequency2933 MHz
    Memory bus frequency2133 MHz
    Memory bus frequency2400 MHz
    Max memory size 64 (GigaBajt)
    Expansion slots1 x PCIe 3.0 x 1
    Expansion slots1 x PCIe 4.0 x 16
    Max. number of SATA devices 4
    Max. number of ATA devices 0
    RAIDNo
    Detailed data on disk/drive interfaces

    CPU

    • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    Chipset

    • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Graphics

    Zintegrowany procesor graficzny obsługa grafiki Intel HD

    • 1 x port D-Sub obsługujący maksymalną rozdzielczość 1920x1200 przy 60 Hz
    • 1 x port HDMI obsługujący maksymalną rozdzielczość 4096x2160 przy 60 Hz

    * Obsługa wersji HDMI 2.1 i HDCP 2.3.
    ** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.
    Sound card
    • Realtek audio codec
    • Obsługa High Definition Audio
    • Ilość kanałów audio 2/4/5.1/7.1
    Network interface1 x 10/100/1000 Mbit/s
    USB ports at back panel6
    USB ports on motherboard6
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports0
    FireWire (IEEE 1394)No
    COM connector / portYes
    LPT connector / portNo
    External connectors1 x PS/2 Keyboard/MouseCombo
    External connectors1 x RJ-45
    External connectors4 x USB 2.0
    External connectors2 x USB 3.0
    External connectors1 x D-Sub
    External connectors1 x HDMI
    External connectors1 x Line In
    External connectors1 x Line Out
    External connectors1 x MIC
    Onboard connectors1 x Clear CMOS jumper
    Onboard connectors1 x TPM header
    Onboard connectors1 x System panel header
    Onboard connectors1 x Chassis intrusion header
    Onboard connectors1 x Front panel audio header
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors1 x M.2
    Onboard connectors4 x SATA III 6Gb/s
    Onboard connectors2 x USB 2.0/1.1 header
    Onboard connectors1 x USB 3.0 header
    Onboard connectors1 x Serial port header
    Onboard connectors1 x 8pin 12V power
    Onboard connectors1 x 4pin CPU fan
    Special functions
    • Wsparcie dla APP Center
    • Obsługa @ BIOS
    • EasyTune
    • Smart Backup
    • System Information Viewer
    • Obsługa Q-Flash
    BIOS
    • 1 x 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form factormicro ATX
    Dimensions

    22.3 x 19.3 cm
    Supported operating systemsWindows 10
    Supported operating systemsWindows 11
    DesignationCE+WEEE
    Width270
    Height240
    Depth50
    Weight688
    Description

    Płyta główna Intel H610 z 4+1+1 hybrydowymi fazami, cyfrowym układem VRM, konstrukcją PCIe 4.0, gniazdem M.2 Gen3 x4, rezystorem przeciwsiarkowym, Smart Fan 6

    • Obsługuje procesory Intel Core 14/13/12
    • Dwukanałowa niebuforowana pamięć DDR4 bez funkcji ECC, 2 moduły DIMM
    • Hybrydowa konstrukcja cyfrowego VRM 4+1+1
    • GbE LAN z zarządzaniem przepustowością
    • NVMe PCIe 3.0 x4 M.2
    • Wysokiej jakości kondensatory audio i osłona przeciwzakłóceniowa
    • Smart Fan 6 posiada wiele czujników temperatury, hybrydowe złącza wentylatorów z funkcją FAN STOP
    • Centrum aplikacji GIGABYTE, proste i łatwe w użyciu
    • Projekt rezystorów przeciwsiarkowych
    Description
    Intel H610 Express | micro ATX | Audio 7.1 channels | CPU Intel | Socket LGA 1700 | Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold | Supported memory types DDR4-SDRAM | 2xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | Graphics card HD Graphics | 4096 x 2304 pixels | 4xUSB 2.0 ports quantity | 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xVGA (D-Sub) ports quantity | 1xHDMI ports quantity | 1xDVI-D ports quantity
    DescriptionGIGABYTE H610M H V3 DDR4 LGA1700
    VatTypeVAT
    Weight0.708000000
    Height55.000000000
    Width235.000000000
    Length270.000000000
    Description
    GIGABYTE H610M H V3 DDR4 LGA1700 2xDDR5 4xSATA 1xM.2
    Packing quantity1.00
    Embeeded batteryNo
    WEEE taxNo
    ProducerGigabyte
    Paper/Pasteboard180
    Plastic (No PET)20
    Gross weight0.635
    Gross depth (mm)225
    Gross width (mm)180
    Gross height (mm)65
    Volume (m3)0.0026325
    Net weight0.435
    Tare weight (kg)0.2
    Palette Qty328
    Producer product nameH610M H V3 DDR4
    Supported hard disk drive interfacesM.2, SATA
    Processor familyIntel
    Supported memory typesDDR4 DIMM
    Processor socketLGA1700
    Number of SATA connectors4
    Warranty36
    Description
    Gigabyte Mainboard H610M H V3 DDR4 - Micro ATX - Socket LGA1700 - Intel H610

    Specifikācija
    Atmiņas tips DDR4
    CPU ligzda LGA 1700
    Video interfeiss D-Sub
    Plates izmērs (Form Factor) mATX
    Video interfeiss HDMI
    Video interfeiss DVI
    Model

    H610M H V3 DDR4
    CPU socketLGA1700
    Processor familyIntel Core
    Processor familyIntel Pentium
    Processor familyIntel Celeron
    Integrated CPUNo
    Chipset manufacturerIntel
    Chipset type

    Intel H610 Express Chipset
    Memory type DDR4
    Number of DDR4 slots2
    Memory bus frequency3200 MHz
    Memory bus frequency3000 MHz
    Memory bus frequency2666 MHz
    Memory bus frequency2933 MHz
    Memory bus frequency2133 MHz
    Memory bus frequency2400 MHz
    Max memory size 64 (GigaBajt)
    Expansion slots1 x PCIe 3.0 x 1
    Expansion slots1 x PCIe 4.0 x 16
    Max. number of SATA devices 4
    Max. number of ATA devices 0
    RAIDNo
    Detailed data on disk/drive interfaces

    CPU

    • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    Chipset

    • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Graphics

    Zintegrowany procesor graficzny obsługa grafiki Intel HD

    • 1 x port D-Sub obsługujący maksymalną rozdzielczość 1920x1200 przy 60 Hz
    • 1 x port HDMI obsługujący maksymalną rozdzielczość 4096x2160 przy 60 Hz

    * Obsługa wersji HDMI 2.1 i HDCP 2.3.
    ** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.
    Sound card
    • Realtek audio codec
    • Obsługa High Definition Audio
    • Ilość kanałów audio 2/4/5.1/7.1
    Network interface1 x 10/100/1000 Mbit/s
    USB ports at back panel6
    USB ports on motherboard6
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports0
    FireWire (IEEE 1394)No
    COM connector / portYes
    LPT connector / portNo
    External connectors1 x PS/2 Keyboard/MouseCombo
    External connectors1 x RJ-45
    External connectors4 x USB 2.0
    External connectors2 x USB 3.0
    External connectors1 x D-Sub
    External connectors1 x HDMI
    External connectors1 x Line In
    External connectors1 x Line Out
    External connectors1 x MIC
    Onboard connectors1 x Clear CMOS jumper
    Onboard connectors1 x TPM header
    Onboard connectors1 x System panel header
    Onboard connectors1 x Chassis intrusion header
    Onboard connectors1 x Front panel audio header
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors1 x M.2
    Onboard connectors4 x SATA III 6Gb/s
    Onboard connectors2 x USB 2.0/1.1 header
    Onboard connectors1 x USB 3.0 header
    Onboard connectors1 x Serial port header
    Onboard connectors1 x 8pin 12V power
    Onboard connectors1 x 4pin CPU fan
    Special functions
    • Wsparcie dla APP Center
    • Obsługa @ BIOS
    • EasyTune
    • Smart Backup
    • System Information Viewer
    • Obsługa Q-Flash
    BIOS
    • 1 x 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form factormicro ATX
    Dimensions

    22.3 x 19.3 cm
    Supported operating systemsWindows 10
    Supported operating systemsWindows 11
    DesignationCE+WEEE
    Width270
    Height240
    Depth50
    Weight688
    Description

    Płyta główna Intel H610 z 4+1+1 hybrydowymi fazami, cyfrowym układem VRM, konstrukcją PCIe 4.0, gniazdem M.2 Gen3 x4, rezystorem przeciwsiarkowym, Smart Fan 6

    • Obsługuje procesory Intel Core 14/13/12
    • Dwukanałowa niebuforowana pamięć DDR4 bez funkcji ECC, 2 moduły DIMM
    • Hybrydowa konstrukcja cyfrowego VRM 4+1+1
    • GbE LAN z zarządzaniem przepustowością
    • NVMe PCIe 3.0 x4 M.2
    • Wysokiej jakości kondensatory audio i osłona przeciwzakłóceniowa
    • Smart Fan 6 posiada wiele czujników temperatury, hybrydowe złącza wentylatorów z funkcją FAN STOP
    • Centrum aplikacji GIGABYTE, proste i łatwe w użyciu
    • Projekt rezystorów przeciwsiarkowych
    Description
    Intel H610 Express | micro ATX | Audio 7.1 channels | CPU Intel | Socket LGA 1700 | Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold | Supported memory types DDR4-SDRAM | 2xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | Graphics card HD Graphics | 4096 x 2304 pixels | 4xUSB 2.0 ports quantity | 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xVGA (D-Sub) ports quantity | 1xHDMI ports quantity | 1xDVI-D ports quantity
    DescriptionGIGABYTE H610M H V3 DDR4 LGA1700
    VatTypeVAT
    Weight0.708000000
    Height55.000000000
    Width235.000000000
    Length270.000000000
    Description
    GIGABYTE H610M H V3 DDR4 LGA1700 2xDDR5 4xSATA 1xM.2
    Packing quantity1.00
    Embeeded batteryNo
    WEEE taxNo
    ProducerGigabyte
    Paper/Pasteboard180
    Plastic (No PET)20
    Gross weight0.635
    Gross depth (mm)225
    Gross width (mm)180
    Gross height (mm)65
    Volume (m3)0.0026325
    Net weight0.435
    Tare weight (kg)0.2
    Palette Qty328
    Producer product nameH610M H V3 DDR4
    Supported hard disk drive interfacesM.2, SATA
    Processor familyIntel
    Supported memory typesDDR4 DIMM
    Processor socketLGA1700
    Number of SATA connectors4
    Warranty36
    Description
    Gigabyte Mainboard H610M H V3 DDR4 - Micro ATX - Socket LGA1700 - Intel H610
