    Iepriekšējais produktsGigabyte P450B power supply...
    Nākamais produktsGigabyte P550B power supply...
    Ražotājs: GIGABYTE

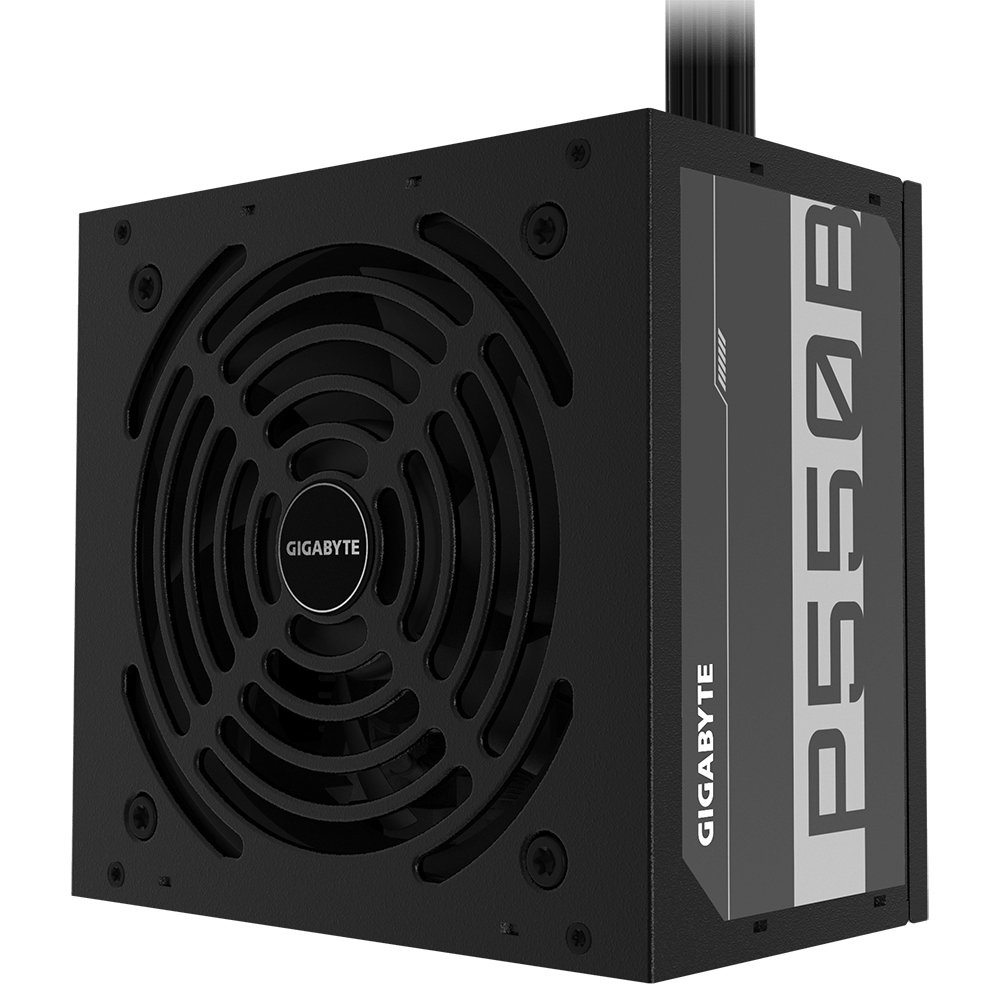

    Gigabyte P550B


    €58,71 ar pvn

    Artikuls: ST04418149
    Preces kods: GP-P550B
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LT
    LV
    LT

    Specifikācija
    Plates izmērs (Form Factor) ATX
    Barošanas bloks 500W - 550W
    Krāsa Melna
    Total power550 W
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Input current8 - 4 A
    Power factor0.9
    Power Factor Correction (PFC) typeActive
    Combined power (+3.3V)108 W
    Combined power (+12V)522 W
    Combined power (+5V)108 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)15 W
    Max output current (+3.3V)18 A
    Max output current (+12V)43.5 A
    Max output current (+5V)15 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)3 A
    Hold time16 ms
    Efficiency85%
    Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
    Motherboard power connector20+4 pin ATX
    Peripheral (Molex) power connectors (4-pin)3
    Motherboard power cable length55 cm
    Number of SATA power connectors6
    SATA power cable length500 mm
    Peripheral (Molex) power cable length500 mm
    PCI Express power connectors (6+2 pin)2
    PCI Express power cable length55 cm
    CPU power connector (4+4 pin)Yes
    CPU power cable length60 cm
    ATX power connector (20+4 pin)Yes
    Floppy drive power connector1
    Floppy disk drive connectorYes
    PCI Express connectorYes
    PurposePC
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS Bronze
    ATX version2.31
    Bearing technologyHDB
    Mean time between failures (MTBF)100000 h
    Product colourBlack
    Cooling typeActive
    Fan diameter12 cm
    Number of fans1 fan(s)
    Fan locationTop
    On/off switchYes
    Width150 mm
    Depth140 mm
    Height86 mm
    Harmonized System (HS) code84733020
    Description
    Gigabyte P550B. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    Description
    Jauda: 550W, Energoefektivitāte: 80 Plus Bronze, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 4, PCI-E: 2 x 6 + 2 Pin, Garantija: 2 gadi
    DescriptionGIGABYTE GP-P550B 550W ATX12V PSU
    VatTypeVAT
    Weight2.050000000
    Height120.000000000
    Width210.000000000
    Length260.000000000
    Description
    GIGABYTE GP-P550B 550W ATX12V 80 PLUS Bronze certified Active PFC Power Supply
    Gross depth (mm)121
    Gross height (mm)207
    Gross weight2.021
    Gross width (mm)255
    Net weight1.621
    Packing quantity10
    Paper/Pasteboard320.00
    Plastic (No PET)80.00
    Tare weight (kg)0.40
    Volume (m3)0.006386985
    Embeeded batteryNo
    WEEE taxNo
    Nominal power550
    Producer product nameGP-P550B
    Certification80 PLUS Bronze certified
    Gross depth master carton530
    Gross width master carton625
    Gross height master carton260
    Net weight master carton20.21
    Tare weight master carton1.464
    Palette Qty200
    Warranty36
    ProducerGigabyte
    Description
    P550BPower Supply - 80 PLUS Bronze certified - 120mm Silent Hydraulic Bearing (HYB) Fan - Reliable flat cable - Single +12V rail - OVP/OPP/SCP/UVP/OCP/OTP protectionConnectors: - ATX/MB 20+4 Pin x 1 - CPU/EPS 4+4 Pin x 1 - PCI-e 6+2 Pin x 2 - SATA x 6 - 4 Pin Peripheral x 3 + 4-Pin floppy x 1

    Specifikācija
    Plates izmērs (Form Factor) ATX
    Barošanas bloks 500W - 550W
    Krāsa Melna
    Total power550 W
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Input current8 - 4 A
    Power factor0.9
    Power Factor Correction (PFC) typeActive
    Combined power (+3.3V)108 W
    Combined power (+12V)522 W
    Combined power (+5V)108 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)15 W
    Max output current (+3.3V)18 A
    Max output current (+12V)43.5 A
    Max output current (+5V)15 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)3 A
    Hold time16 ms
    Efficiency85%
    Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
    Motherboard power connector20+4 pin ATX
    Peripheral (Molex) power connectors (4-pin)3
    Motherboard power cable length55 cm
    Number of SATA power connectors6
    SATA power cable length500 mm
    Peripheral (Molex) power cable length500 mm
    PCI Express power connectors (6+2 pin)2
    PCI Express power cable length55 cm
    CPU power connector (4+4 pin)Yes
    CPU power cable length60 cm
    ATX power connector (20+4 pin)Yes
    Floppy drive power connector1
    Floppy disk drive connectorYes
    PCI Express connectorYes
    PurposePC
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS Bronze
    ATX version2.31
    Bearing technologyHDB
    Mean time between failures (MTBF)100000 h
    Product colourBlack
    Cooling typeActive
    Fan diameter12 cm
    Number of fans1 fan(s)
    Fan locationTop
    On/off switchYes
    Width150 mm
    Depth140 mm
    Height86 mm
    Harmonized System (HS) code84733020
    Description
    Gigabyte P550B. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    Description
    Jauda: 550W, Energoefektivitāte: 80 Plus Bronze, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 4, PCI-E: 2 x 6 + 2 Pin, Garantija: 2 gadi
    DescriptionGIGABYTE GP-P550B 550W ATX12V PSU
    VatTypeVAT
    Weight2.050000000
    Height120.000000000
    Width210.000000000
    Length260.000000000
    Description
    GIGABYTE GP-P550B 550W ATX12V 80 PLUS Bronze certified Active PFC Power Supply
    Gross depth (mm)121
    Gross height (mm)207
    Gross weight2.021
    Gross width (mm)255
    Net weight1.621
    Packing quantity10
    Paper/Pasteboard320.00
    Plastic (No PET)80.00
    Tare weight (kg)0.40
    Volume (m3)0.006386985
    Embeeded batteryNo
    WEEE taxNo
    Nominal power550
    Producer product nameGP-P550B
    Certification80 PLUS Bronze certified
    Gross depth master carton530
    Gross width master carton625
    Gross height master carton260
    Net weight master carton20.21
    Tare weight master carton1.464
    Palette Qty200
    Warranty36
    ProducerGigabyte
    Description
    P550BPower Supply - 80 PLUS Bronze certified - 120mm Silent Hydraulic Bearing (HYB) Fan - Reliable flat cable - Single +12V rail - OVP/OPP/SCP/UVP/OCP/OTP protectionConnectors: - ATX/MB 20+4 Pin x 1 - CPU/EPS 4+4 Pin x 1 - PCI-e 6+2 Pin x 2 - SATA x 6 - 4 Pin Peripheral x 3 + 4-Pin floppy x 1
