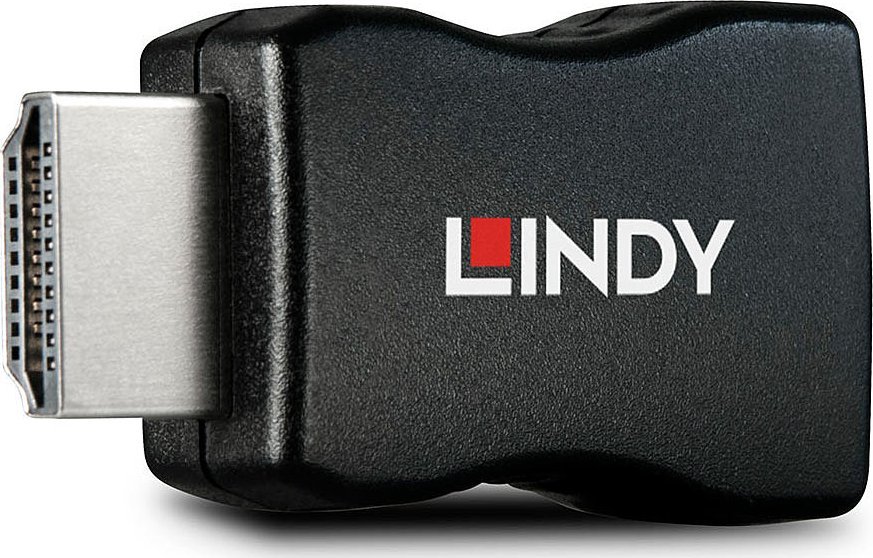

Lindy HDMI 10.2G EDID Emulator

Specifications

• AV Interface: HDMI®
• Interface Standard: 1.4
• Supported Bandwidth: 10.2Gbps
• Maximum Resolution: 3840x2160@30Hz 4:4:4 8Bit
• Video EDID:
  • 640 x 480p 60/72/75Hz
  • 720 x 400p 60Hz/70Hz
  • 720 x 480i 60Hz
  • 720 x 576p 50Hz
  • 720 x 576i 50Hz
  • 800 x 600p 56/60/72/75Hz
  • 832 x 624p 75Hz
  • 1024 x 768p 60/70/75Hz
  • 1280 x 800p 60Hz
  • 1280 x 720p 50/60Hz
  • 1152 x 864p 75Hz
  • 1152 x 870p 75Hz
  • 1280 x 1024p 60/75Hz
  • 1280 x 960p 60Hz
  • 1440 x 900p 60Hz
  • 1600 x 1200p 60Hz
  • 1680 x 1050p 60Hz
  • 1920 x 1080i/p 50/60Hz
  • 3840 x 2160p 30Hz
• Audio EDID: LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz
• HDCP Support: 1.4
• Special Features: CEC

Connectors

• Input: HDMI® Type A Male
• Output: HDMI® Type A Female
• Power: Via HDMI® Source Interface

Physical Properties

• Dimensions (approx.) WxDxH: 24x43x12.3mm (0.94x1.69x0.48in)
• Housing Material: ABS
• Net Weight: 0.008kg (0.02lb)
• Operating Temperature: 0°C - 60°C (32°F - 140°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 0 - 80% RH (non-condensing)
• Power Requirements: -
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 136x138mm (5.35x5.43in)
• Gross Weight: 0.013kg (0.03lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH, TAA

Package Contents

• EDID Emulator
• Lindy Manual

Purchasing Information

• No.: 32104
• EAN: 4002888321044

CE Doc: CE_DoC_DE_32104.pdf
Tech Data Sheets: 32104_TDS_v1.pdf
Manuals: LINDY_32104_32120-2_Man_0420.pdf
