    Ražotājs: LINDY

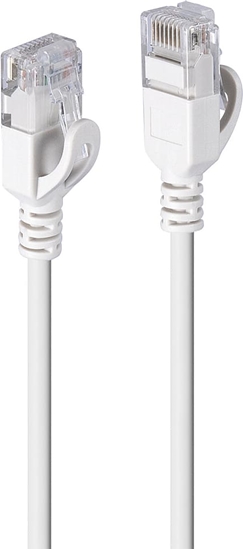

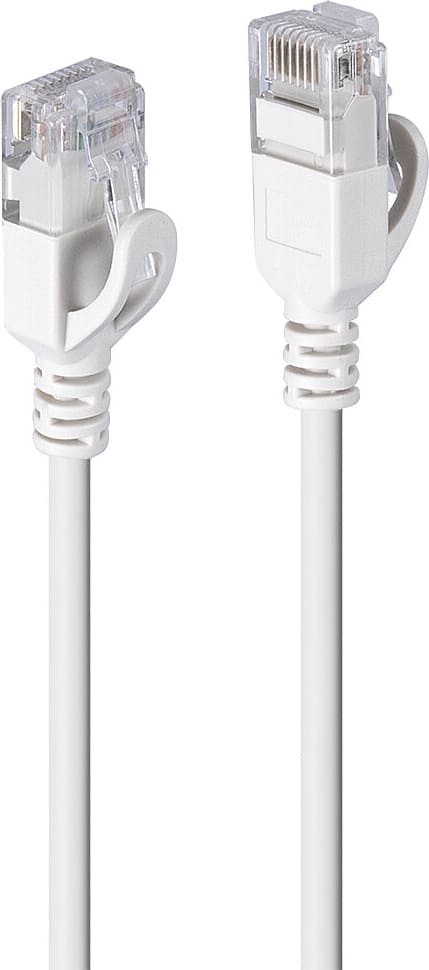

    Lindy 5m Cat.6A U/FTP LSZH Ultra Slim Network Cable, Grey


    €14,10 ar pvn

    Artikuls: ST07978328
    Preces kods: 47596
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Īpašības RJ-45
    Krāsa Pelēka
    Vada garums (m.) 1.1 - 1.7 m
    Krāsa Zelta
    cable shieldingU/FTP (STP)
    gross weight0.02
    height6 mm
    width11 mm
    depth28 mm
    cable length5 m
    frequency500 MHz
    country of originCN
    product colourGrey
    operating temperature (t-t)-10 - 60 °C
    storage temperature (t-t)-10 - 40 °C
    certificationRoHS, REACH, UL, California
    connector 1RJ-45
    connector 2RJ-45
    connector 1 genderMale
    connector 2 genderMale
    quantity per pack1 pc(s)
    package typePolybag
    cable standardCat6a
    connector contacts platingNickel
    compliance certificatesREACH, RoHS
    jacket materialPolyvinyl chloride (PVC)
    conductor materialCopper
    awg wire size30
    connector shieldingYes
    connector shield materialAluminium
    cable shapeRound
    connector 1 form factorStraight
    connector 2 form factorStraight
    sustainability complianceYes
    sustainability certificatesUL ECOLOGO
    outer diameter3.6 mm
    bend radius (min)6 cm
    nominal attenuation49.3dB/100m @ 500MHz
    net weight0.01
    packaging height14.40
    packaging lenght13.30
    packaging width1.00
    variation of47590
    Description

    Connectors

    • Connector A: RJ45 Male
    • Connector B: RJ45 Male
    • Housing Material: Polycarbonate
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: 11x28x6mm (0.43x1.10x0.24in)

    Cable Construction

    • Length: 5m (16.48ft)
    • Colour: Grey
    • Type: Cat.6A
    • Jacket Diameter: 3.6mm (0.07in)
    • Jacket Material: LSZH
    • Conductor Material: Bare Copper
    • Conductor Gauge: 30AWG
    • Shielding: Aluminium Foil

    Specifications

    • Supported Bandwidth: 500MHz
    • Nominal Attenuation: 49.3dB/100m @ 500MHz
    • Minimum Bend Radius: 60mm (2.36in)
    • Operating Temperature: -10°C - 60°C (14F - 140°F)
    • Storage Temperature: -10°C - 40°C (14F - 104°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, California Proposition 65

    Purchasing Information

    • No.: 47596
    • EAN: 4002888475969

    This product is also available in other lengths:

    • 47590 - 0.3m (0.98ft)
    • 47591 - 0.5m (1.64ft)
    • 47592 - 1m (3.28ft)
    • 47593 - 1.5m (4.92ft)
    • 47594 - 2m (6.56ft)
    • 47595 - 3m (9.84ft)
    • 47596 - 5m (16.48ft)
