    Ražotājs: LINDY

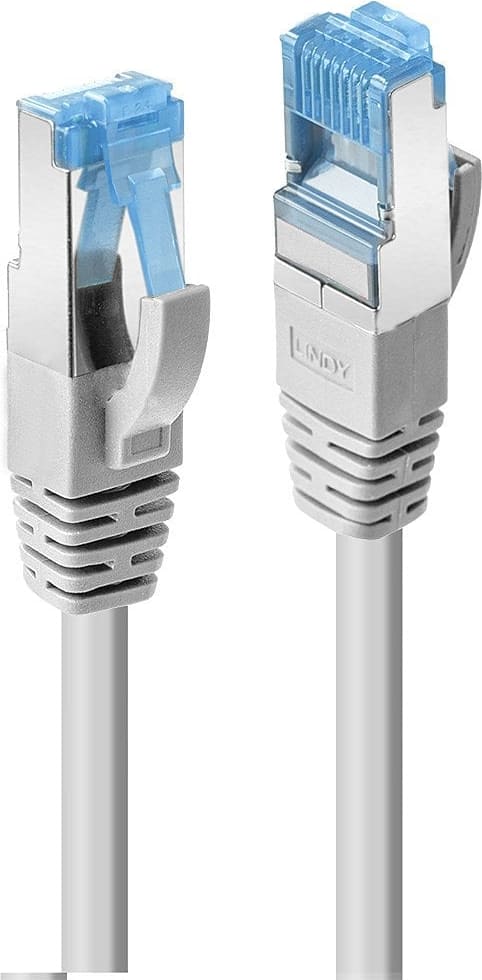

    Lindy 5m Cat.6A U/UTP LSZH Cable, Grey


    €14,68 ar pvn

    Artikuls: ST09615636
    Preces kods: 47616
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    cable shieldingS/FTP (S-STP)
    gross weight0.19
    height8.3 mm
    width11.6 mm
    depth22.8 mm
    cable length5 m
    frequency500 MHz
    country of originCN
    product colourGrey
    operating temperature (t-t)-10 - 60 °C
    storage temperature (t-t)-20 - 75 °C
    certificationRoHS, REACH, UL, California Proposition 65
    connector 1RJ-45
    connector 2RJ-45
    connector 1 genderMale
    connector 2 genderMale
    quantity per pack1 pc(s)
    package typePolybag
    cable standardCat6a
    connector contacts platingNickel/Gold
    compliance certificatesREACH, RoHS, UL
    manualYes
    jacket materialLow smoke zero halogen (LSZH)
    conductor materialCopper
    awg wire size26
    connector shieldingYes
    connector shield materialAluminium
    cable shapeRound
    cabling technology10GBase-T
    connector 1 form factorStraight
    connector 2 form factorStraight
    sustainability complianceYes
    doesn't containHalogen
    outer diameter5.8 mm
    warranty period10 year(s)
    bend radius (min)6.9 cm
    connector housing materialPolycarbonate (PC)
    net weight0.17
    packaging height25.90
    packaging lenght23.60
    packaging width2.00
    warranty10
    variation of47611
    Description

    Connectors

    • Connector A: RJ45 Male
    • Connector B: RJ45 Male
    • Housing Material: Polycarbonate
    • Connector Plating: -
    • Pin Construction: Copper Alloy
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)

    Cable Construction

    • Length: 5m (16.44ft)
    • Colour: Grey
    • Type: Cat.6A
    • Jacket Diameter: 5.8mm (0.23in)
    • Jacket Material: LSZH
    • Conductor Material: Copper
    • Conductor Gauge: 26AWG
    • Shielding: -

    Specifications

    • Supported Bandwidth: 500MHz
    • Nominal Attenuation: 49.3dB/100m @500MHz
    • Minimum Bend Radius: 69mm (2.72in)
    • Operating Temperature: -10°C - 60°C (14°F - 140°F)
    • Storage Temperature: -20°C - 75°C (-4°F - 167°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL, California Proposition 65

    Purchasing Information

    • No.: 47616
    • EAN: 4002888476164

    This product is also available in other lengths

    • 47611 - 0.3m (0.98ft)
    • 47612  - 0.5m (1.64ft)
    • 47613 - 1m (3.28ft)
    • 47614 - 2m (6.56ft)
    • 47615 - 3m (9.84ft)
    • 47616 - 5m (16.44ft)
    • 47617 - 7.5m (24.61ft)
    • 47618 - 10m (32.81ft)
    • 47619 - 15m (49.21ft)

    Specifikācija
    cable shieldingS/FTP (S-STP)
    gross weight0.19
    height8.3 mm
    width11.6 mm
    depth22.8 mm
    cable length5 m
    frequency500 MHz
    country of originCN
    product colourGrey
    operating temperature (t-t)-10 - 60 °C
    storage temperature (t-t)-20 - 75 °C
    certificationRoHS, REACH, UL, California Proposition 65
    connector 1RJ-45
    connector 2RJ-45
    connector 1 genderMale
    connector 2 genderMale
    quantity per pack1 pc(s)
    package typePolybag
    cable standardCat6a
    connector contacts platingNickel/Gold
    compliance certificatesREACH, RoHS, UL
    manualYes
    jacket materialLow smoke zero halogen (LSZH)
    conductor materialCopper
    awg wire size26
    connector shieldingYes
    connector shield materialAluminium
    cable shapeRound
    cabling technology10GBase-T
    connector 1 form factorStraight
    connector 2 form factorStraight
    sustainability complianceYes
    doesn't containHalogen
    outer diameter5.8 mm
    warranty period10 year(s)
    bend radius (min)6.9 cm
    connector housing materialPolycarbonate (PC)
    net weight0.17
    packaging height25.90
    packaging lenght23.60
    packaging width2.00
    warranty10
    variation of47611
    Description

    Connectors

    • Connector A: RJ45 Male
    • Connector B: RJ45 Male
    • Housing Material: Polycarbonate
    • Connector Plating: -
    • Pin Construction: Copper Alloy
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)

    Cable Construction

    • Length: 5m (16.44ft)
    • Colour: Grey
    • Type: Cat.6A
    • Jacket Diameter: 5.8mm (0.23in)
    • Jacket Material: LSZH
    • Conductor Material: Copper
    • Conductor Gauge: 26AWG
    • Shielding: -

    Specifications

    • Supported Bandwidth: 500MHz
    • Nominal Attenuation: 49.3dB/100m @500MHz
    • Minimum Bend Radius: 69mm (2.72in)
    • Operating Temperature: -10°C - 60°C (14°F - 140°F)
    • Storage Temperature: -20°C - 75°C (-4°F - 167°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL, California Proposition 65

    Purchasing Information

    • No.: 47616
    • EAN: 4002888476164

    This product is also available in other lengths

    • 47611 - 0.3m (0.98ft)
    • 47612  - 0.5m (1.64ft)
    • 47613 - 1m (3.28ft)
    • 47614 - 2m (6.56ft)
    • 47615 - 3m (9.84ft)
    • 47616 - 5m (16.44ft)
    • 47617 - 7.5m (24.61ft)
    • 47618 - 10m (32.81ft)
    • 47619 - 15m (49.21ft)
