    Ražotājs: ZYXEL

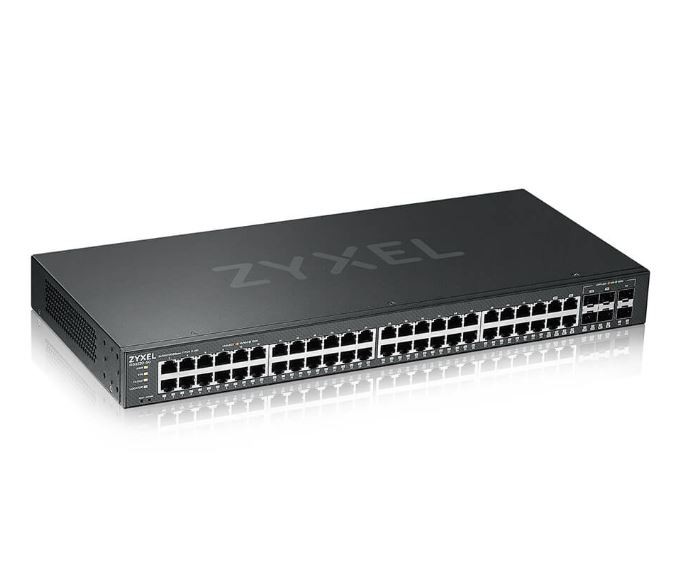

    Zyxel GS2220-50 44-Port + 4x SFP/Rj45 +2x SFP Gb


    €501,44 ar pvn

    Artikuls: ST05564850
    Preces kods: GS2220-50-EU0101F
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    DE
    PL
    LV

    Specifikācija
    WRL stadarti 802.11b
    Īpašības RJ-45
    Switch classManaged
    ApplicationMedium and large companies
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100/1000 Mbps ports44
    Number of COMBO ports4
    Number of SFP ports2
    Console portNo
    Throughput100 (Gigabajty na sek.)
    Forwarding rate74 (Megabajty na sek.)
    Packet buffer1.5 (MegaBajt)
    MAC address table size16000
    Support for Jumbo framesNo
    StackabilityYes
    VLAN
    • 802.1Q static VLANs/dynamic VLANs: 1 K/4 K
    • Port-based VLAN
    • Protocol-based VLAN
    • IP subnet-based VLAN
    • MAC-based VLAN
    • Private VLAN
    • Voice VLAN
    • Vendor ID based VLAN
    • VLAN ingress filtering
    • LACP algorithm of source/ destination IP or MAC
    • GVRP
    • L2PT
    Supported protocols and standards
    • IEEE 802.3u 100BASE-TX Ethernet
    • IEEE 802.3ab 1000BASE-T Ethernet
    • IEEE 802.3z 1000BASE-X
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE plus
    • IEEE 802.3az EEE
    • IEEE 802.3x flow control
    • IEEE 802.1AB LLDP/LLDP-MED
    • IEEE 802.3ad LACP aggregation
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    • IEEE 802.1Q VLAN tagging
    • IEEE 802.1p Class of Service (CoS) prioritization
    • IEEE 802.1X port authentication
    QoS
    • No. of hardware queues per port: 8
    • Storm control and event log: Broadcast, multicast, unknown unicast (DLF)
    • Port-based rate limiting (ingress/ egress)
    • Rate limiting per IP/TCP/UDP per port
    • Policy-based rate limiting
    • 802.3x flow control
    • 802.1p Class of Service (SPQ, WFQ, WRR, hybrid-SPQ combination capable)
    • DiffServ (DSCP)
    Security
    • Port security
    • Layer 2 MAC filtering
    • Layer 3 IP filtering
    • Layer 4 TCP/UDP socket filtering
    • Static MAC forwarding
    • Multiple RADIUS servers
    • Multiple TACACS+ servers
    • New for V4.70 Compound authentication
    • 802.1x VLAN and 802.1p assignment by RADIUS
    • Login authentication by RADIUS
    • Login authentication by TACACS+
    • TACACS+ accounting
    • RADIUS accounting
    • Authorization on RADIUS
    • Authorization on TACACS+
    • SSH v2
    • SSL
    • MAC freeze
    • DHCP snooping IPv4
    • DHCP snooping IPv6
    • ARP inspection
    • Static IP-MAC-Port binding
    • Policy-based security filtering
    • Port isolation
    • IP source guard (IPv4/IPv6)
    • MAC search
    • Guest VLAN
    • ACL packet filtering (IPv4/IPv6)
    • CPU protection
    • Interface related trap enable disable (by port)
    • MAC-based authentication per VLAN
    Management, monitoring, configuration
    • SNMP v1, v2c, v3
    • SNMP trap group
    • RMON (1, 2, 3, 9)
    • ICMP echo/echo reply
    • Syslog
    • IEEE 802.1AB LLDP
    • Cloud support on V4.70 IEEE 802.1AB LLDP-MED
    • Custom default
    • Syslog (IPv4/IPv6)
    • Display port utilization
    • Support NebulaFlex Pro for Cloud Management
    L2 features
    • L2 multicast
    • IGMP snooping (v1, v2, v3)
    • IGMP snooping fast leave
    • Configurable IGMP snooping timer and priority
    • IGMP snooping statistics
    • IGMP throttling
    • MVR support
    • IGMP filtering
    • IGMP snooping immediate leave
    • IGMP proxy mode & snooping mode selection
    • MLD snooping
    Chassis typeRack
    Power supply Internal
    Power consumption36.9 (Watt)
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    440 x 200 x 44.5 mm
    Weight2.9 (kilogram)
    Other features

    Hałas akustyczny (min/max) : 23.6/47.3 dBA
    Width510
    Height90
    Depth290
    Weight4088
    Description

    Pierwszy na rynku przełącznik z obsługą trzech trybów zarządzania

    Seria GS2220 to pierwszw zarządzalne przełączniki hybrydowe z funkcją zarządzania w chmurze Nebula, zarządzaniem niezależnym i SNMP.

    Potężna funkcjonalność L2

    Seria GS2220 posiada bogaty zestaw funkcji warstwy 2, który może kształtować ruch w zakresie dowolnych wdrożeń VoIP, wideokonferencji i IPTV. Zaawansowane funkcje kontroli ruchu zaimplementowane w serii GS2220, takie jak multicast L2, IGMP snooping, Multicast VLAN Registration zapewniają hotelom, firmom i placówkom edukacyjnym większe możliwośći i bardziej efektywne zarządzanie ruchem we współczesnych konwergentnych aplikacjach.

    Zarządzaj po swojemu!

    Obsługa Zyxel NebulaFlex Pro umożliwia łatwe przełączanie, w dowolnym momencie za pomocą zaledwie kilku kliknięć, pomiędzy trybem zarządzania niezależnego i intuicyjną platformą zarządzania w chmurze Nebula z ROCZNYM pakietem Pro Pack w cenie przełącznika.

    Efektywne zasilanie urządzeń i oszczędzanie energii

    Aby zaspokoić potrzeby urządzeń, które wymagają dużej mocy modele PoE obsługują standard 802.3at, oferując 30 watów na każdym porcie oraz budżet zasilania o maksymalnej mocy 375 W. Tryb inteligentnego zużycia pozwala na dostarczanie tylko rzeczywistej mocy wymaganej przez urządzenia podłączone do przełącznika, co przedkłada się na większy zwrot z inwestycji.

    Ultra cicha praca urządzeń

    Prezentowana seria obsługuje modele bez wentylatorów i z wbudowanymi inteligentnymi wentylatorami. Inteligentny wentylator został zaprojektowany do automatycznego dostosowywania prędkości w zależności od temperatury urządzenia. Podczas działania przełącznika dźwięku wentylatorów prawie nie słychać.

    Elastyczne połączenie portów

    Seria GS2220 posiada porty miedziane i porty typu combo, modele 50 i 50HP są nawet wyposażone w dodatkowe dedykowane porty SFP dla łączy uplink. Elastyczną kombinację portów można z łatwością zastosować w każdej instalacji przełączającej w warstwie 2.
    Switch typeManaged
    Switch layerL2
    Quality of Service (QoS) supportYes
    Web-based managementYes
    Configuring Location Settings (CLI)Yes
    System event logYes
    Basic switching RJ-45 Ethernet ports quantity44
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Combo SFP ports quantity4
    Fiber ports quantity2
    Fiber optic connectorSFP
    Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportNo
    Copper ethernet cabling technology10BASE-TX, 1000BASE-T
    Port mirroringYes
    Flow control supportYes
    Link aggregationYes
    Broadcast storm controlYes
    Rate limitingYes
    Spanning tree protocolYes
    VLAN supportYes
    Virtual LAN featuresPort-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
    Fiber ethernet cabling technology1000BASE-X
    MAC address table16000 entries
    Switching capacity100 Gbit/s
    Forwarding rate74 Mpps
    Packet buffer memory1.5 MB
    DHCP featuresDHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
    Access Control List (ACL)Yes
    IGMP snoopingYes
    Security algorithmsSNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
    MAC address filteringYes
    AuthenticationGuest VLAN, MAC-based authentication
    Authentication typeIEEE 802.1x, RADIUS
    Multicast supportYes
    Rack mountingYes
    Product colourBlack
    CertificationLVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
    Internal memory256 MB
    Flash memory32 MB
    Noise level47.3 dB
    Mean time between failures (MTBF)660245 h
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)36.9 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 95%
    Storage relative humidity (H-H)10 - 95%
    Heat dissipation125.829 BTU/h
    Width440 mm
    Depth200 mm
    Height44.5 mm
    Weight2.9 kg
    Cables includedAC
    Package width496 mm
    Package depth289 mm
    Package height90 mm
    Package weight3.97 kg
    Harmonized System (HS) code85176990
    Description
    Zyxel GS2220-50-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 44. MAC address table: 16000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting
    Status10 dienas
    Description
    Designed for converged networks GS2220 Series Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability. Industry first tri-mode switch. The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP. Powerful L2 features. The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today. Manage it your way! The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks. Experience whisper-silent operations. This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. Flexible port combination. The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily. Plug into the power of the Zyxel One Network. The Zyxel One Network (ZON) Utility is a unified installation tool to discover and configure Zyxel Switches, WLAN and Gateways in the standalone network. Users can easily maintain the network in a single platform. ZON Utility is a free of charge tool which has been downloaded by over 32,000 users to date.

    Switch type Managed
    Switch layer L2
    Quality of Service (QoS) support Y
    Web-based management Y
    Configuring Location Settings (CLI) Y
    System event log Y
    Basic switching RJ-45 Ethernet ports quantity 44
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Combo SFP ports quantity 4
    Fiber ports quantity 2
    Fiber optic connector SFP
    Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Copper ethernet cabling technology 10BASE-TX, 1000BASE-T
    Port mirroring Y
    Flow control support Y
    Link aggregation Y
    Broadcast storm control Y
    Rate limiting Y
    Spanning tree protocol Y
    VLAN support Y
    Virtual LAN features Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
    Fiber ethernet cabling technology 1000BASE-X
    MAC address table 16000 entries
    Switching capacity 100 Gbit/s
    Forwarding rate 74 Mpps
    Packet buffer memory 1.5 MB
    DHCP features DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
    Access Control List (ACL) Y
    IGMP snooping Y
    Security algorithms SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
    MAC address filtering Y
    Authentication Guest VLAN, MAC-based authentication
    Authentication type IEEE 802.1x, RADIUS
    Multicast support Y
    Rack mounting Y
    Product colour Black
    Certification LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
    Internal memory 256 MB
    Flash memory 32 MB
    Noise level 47.3 dB
    Mean time between failures (MTBF) 660245 h
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (max) 36.9 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 95%
    Storage relative humidity (H-H) 10 - 95%
    Heat dissipation 125.829 BTU/h
    Width 440 mm
    Depth 200 mm
    Height 44.5 mm
    Weight 2.9 kg
    Cables included AC
    Package width 496 mm
    Package depth 289 mm
    Package height 90 mm
    Package weight 3.97 kg
    Harmonized System (HS) code 85176990
    Description
    ZyXEL Switch GS2220-50-EU0101F GS222050EU0101F (GS2220-50-EU0101F)

    Specifikācija
    WRL stadarti 802.11b
    Īpašības RJ-45
    Switch classManaged
    ApplicationMedium and large companies
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100/1000 Mbps ports44
    Number of COMBO ports4
    Number of SFP ports2
    Console portNo
    Throughput100 (Gigabajty na sek.)
    Forwarding rate74 (Megabajty na sek.)
    Packet buffer1.5 (MegaBajt)
    MAC address table size16000
    Support for Jumbo framesNo
    StackabilityYes
    VLAN
    • 802.1Q static VLANs/dynamic VLANs: 1 K/4 K
    • Port-based VLAN
    • Protocol-based VLAN
    • IP subnet-based VLAN
    • MAC-based VLAN
    • Private VLAN
    • Voice VLAN
    • Vendor ID based VLAN
    • VLAN ingress filtering
    • LACP algorithm of source/ destination IP or MAC
    • GVRP
    • L2PT
    Supported protocols and standards
    • IEEE 802.3u 100BASE-TX Ethernet
    • IEEE 802.3ab 1000BASE-T Ethernet
    • IEEE 802.3z 1000BASE-X
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE plus
    • IEEE 802.3az EEE
    • IEEE 802.3x flow control
    • IEEE 802.1AB LLDP/LLDP-MED
    • IEEE 802.3ad LACP aggregation
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    • IEEE 802.1Q VLAN tagging
    • IEEE 802.1p Class of Service (CoS) prioritization
    • IEEE 802.1X port authentication
    QoS
    • No. of hardware queues per port: 8
    • Storm control and event log: Broadcast, multicast, unknown unicast (DLF)
    • Port-based rate limiting (ingress/ egress)
    • Rate limiting per IP/TCP/UDP per port
    • Policy-based rate limiting
    • 802.3x flow control
    • 802.1p Class of Service (SPQ, WFQ, WRR, hybrid-SPQ combination capable)
    • DiffServ (DSCP)
    Security
    • Port security
    • Layer 2 MAC filtering
    • Layer 3 IP filtering
    • Layer 4 TCP/UDP socket filtering
    • Static MAC forwarding
    • Multiple RADIUS servers
    • Multiple TACACS+ servers
    • New for V4.70 Compound authentication
    • 802.1x VLAN and 802.1p assignment by RADIUS
    • Login authentication by RADIUS
    • Login authentication by TACACS+
    • TACACS+ accounting
    • RADIUS accounting
    • Authorization on RADIUS
    • Authorization on TACACS+
    • SSH v2
    • SSL
    • MAC freeze
    • DHCP snooping IPv4
    • DHCP snooping IPv6
    • ARP inspection
    • Static IP-MAC-Port binding
    • Policy-based security filtering
    • Port isolation
    • IP source guard (IPv4/IPv6)
    • MAC search
    • Guest VLAN
    • ACL packet filtering (IPv4/IPv6)
    • CPU protection
    • Interface related trap enable disable (by port)
    • MAC-based authentication per VLAN
    Management, monitoring, configuration
    • SNMP v1, v2c, v3
    • SNMP trap group
    • RMON (1, 2, 3, 9)
    • ICMP echo/echo reply
    • Syslog
    • IEEE 802.1AB LLDP
    • Cloud support on V4.70 IEEE 802.1AB LLDP-MED
    • Custom default
    • Syslog (IPv4/IPv6)
    • Display port utilization
    • Support NebulaFlex Pro for Cloud Management
    L2 features
    • L2 multicast
    • IGMP snooping (v1, v2, v3)
    • IGMP snooping fast leave
    • Configurable IGMP snooping timer and priority
    • IGMP snooping statistics
    • IGMP throttling
    • MVR support
    • IGMP filtering
    • IGMP snooping immediate leave
    • IGMP proxy mode & snooping mode selection
    • MLD snooping
    Chassis typeRack
    Power supply Internal
    Power consumption36.9 (Watt)
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    440 x 200 x 44.5 mm
    Weight2.9 (kilogram)
    Other features

    Hałas akustyczny (min/max) : 23.6/47.3 dBA
    Width510
    Height90
    Depth290
    Weight4088
    Description

    Pierwszy na rynku przełącznik z obsługą trzech trybów zarządzania

    Seria GS2220 to pierwszw zarządzalne przełączniki hybrydowe z funkcją zarządzania w chmurze Nebula, zarządzaniem niezależnym i SNMP.

    Potężna funkcjonalność L2

    Seria GS2220 posiada bogaty zestaw funkcji warstwy 2, który może kształtować ruch w zakresie dowolnych wdrożeń VoIP, wideokonferencji i IPTV. Zaawansowane funkcje kontroli ruchu zaimplementowane w serii GS2220, takie jak multicast L2, IGMP snooping, Multicast VLAN Registration zapewniają hotelom, firmom i placówkom edukacyjnym większe możliwośći i bardziej efektywne zarządzanie ruchem we współczesnych konwergentnych aplikacjach.

    Zarządzaj po swojemu!

    Obsługa Zyxel NebulaFlex Pro umożliwia łatwe przełączanie, w dowolnym momencie za pomocą zaledwie kilku kliknięć, pomiędzy trybem zarządzania niezależnego i intuicyjną platformą zarządzania w chmurze Nebula z ROCZNYM pakietem Pro Pack w cenie przełącznika.

    Efektywne zasilanie urządzeń i oszczędzanie energii

    Aby zaspokoić potrzeby urządzeń, które wymagają dużej mocy modele PoE obsługują standard 802.3at, oferując 30 watów na każdym porcie oraz budżet zasilania o maksymalnej mocy 375 W. Tryb inteligentnego zużycia pozwala na dostarczanie tylko rzeczywistej mocy wymaganej przez urządzenia podłączone do przełącznika, co przedkłada się na większy zwrot z inwestycji.

    Ultra cicha praca urządzeń

    Prezentowana seria obsługuje modele bez wentylatorów i z wbudowanymi inteligentnymi wentylatorami. Inteligentny wentylator został zaprojektowany do automatycznego dostosowywania prędkości w zależności od temperatury urządzenia. Podczas działania przełącznika dźwięku wentylatorów prawie nie słychać.

    Elastyczne połączenie portów

    Seria GS2220 posiada porty miedziane i porty typu combo, modele 50 i 50HP są nawet wyposażone w dodatkowe dedykowane porty SFP dla łączy uplink. Elastyczną kombinację portów można z łatwością zastosować w każdej instalacji przełączającej w warstwie 2.
    Switch typeManaged
    Switch layerL2
    Quality of Service (QoS) supportYes
    Web-based managementYes
    Configuring Location Settings (CLI)Yes
    System event logYes
    Basic switching RJ-45 Ethernet ports quantity44
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Combo SFP ports quantity4
    Fiber ports quantity2
    Fiber optic connectorSFP
    Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportNo
    Copper ethernet cabling technology10BASE-TX, 1000BASE-T
    Port mirroringYes
    Flow control supportYes
    Link aggregationYes
    Broadcast storm controlYes
    Rate limitingYes
    Spanning tree protocolYes
    VLAN supportYes
    Virtual LAN featuresPort-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
    Fiber ethernet cabling technology1000BASE-X
    MAC address table16000 entries
    Switching capacity100 Gbit/s
    Forwarding rate74 Mpps
    Packet buffer memory1.5 MB
    DHCP featuresDHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
    Access Control List (ACL)Yes
    IGMP snoopingYes
    Security algorithmsSNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
    MAC address filteringYes
    AuthenticationGuest VLAN, MAC-based authentication
    Authentication typeIEEE 802.1x, RADIUS
    Multicast supportYes
    Rack mountingYes
    Product colourBlack
    CertificationLVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
    Internal memory256 MB
    Flash memory32 MB
    Noise level47.3 dB
    Mean time between failures (MTBF)660245 h
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)36.9 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 95%
    Storage relative humidity (H-H)10 - 95%
    Heat dissipation125.829 BTU/h
    Width440 mm
    Depth200 mm
    Height44.5 mm
    Weight2.9 kg
    Cables includedAC
    Package width496 mm
    Package depth289 mm
    Package height90 mm
    Package weight3.97 kg
    Harmonized System (HS) code85176990
    Description
    Zyxel GS2220-50-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 44. MAC address table: 16000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting
    Status10 dienas
    Description
    Designed for converged networks GS2220 Series Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability. Industry first tri-mode switch. The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP. Powerful L2 features. The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today. Manage it your way! The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks. Experience whisper-silent operations. This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. Flexible port combination. The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily. Plug into the power of the Zyxel One Network. The Zyxel One Network (ZON) Utility is a unified installation tool to discover and configure Zyxel Switches, WLAN and Gateways in the standalone network. Users can easily maintain the network in a single platform. ZON Utility is a free of charge tool which has been downloaded by over 32,000 users to date.

    Switch type Managed
    Switch layer L2
    Quality of Service (QoS) support Y
    Web-based management Y
    Configuring Location Settings (CLI) Y
    System event log Y
    Basic switching RJ-45 Ethernet ports quantity 44
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Combo SFP ports quantity 4
    Fiber ports quantity 2
    Fiber optic connector SFP
    Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Copper ethernet cabling technology 10BASE-TX, 1000BASE-T
    Port mirroring Y
    Flow control support Y
    Link aggregation Y
    Broadcast storm control Y
    Rate limiting Y
    Spanning tree protocol Y
    VLAN support Y
    Virtual LAN features Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
    Fiber ethernet cabling technology 1000BASE-X
    MAC address table 16000 entries
    Switching capacity 100 Gbit/s
    Forwarding rate 74 Mpps
    Packet buffer memory 1.5 MB
    DHCP features DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
    Access Control List (ACL) Y
    IGMP snooping Y
    Security algorithms SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
    MAC address filtering Y
    Authentication Guest VLAN, MAC-based authentication
    Authentication type IEEE 802.1x, RADIUS
    Multicast support Y
    Rack mounting Y
    Product colour Black
    Certification LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
    Internal memory 256 MB
    Flash memory 32 MB
    Noise level 47.3 dB
    Mean time between failures (MTBF) 660245 h
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (max) 36.9 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 95%
    Storage relative humidity (H-H) 10 - 95%
    Heat dissipation 125.829 BTU/h
    Width 440 mm
    Depth 200 mm
    Height 44.5 mm
    Weight 2.9 kg
    Cables included AC
    Package width 496 mm
    Package depth 289 mm
    Package height 90 mm
    Package weight 3.97 kg
    Harmonized System (HS) code 85176990
    Description
    ZyXEL Switch GS2220-50-EU0101F GS222050EU0101F (GS2220-50-EU0101F)
    Nesen skatītās preces
    Informācija
    Klientu serviss
    Mans profils
    Sazinies ar mums
    • Ogre, Mālkalnes prospekts 5-18, LV-5003
    • (+371) 22111444, (+371) 22500002
    Mūsu partneri
    Autortiesības © 2024 Tera.lv. Visas tiesības aizsargātas.
