    • Review of the Solar MPPT Uni-T UT673PV
    Ražotājs: UNI-T

    Review of the Solar MPPT Uni-T UT673PV


    €50,23 ar pvn

    Artikuls: ST10473239
    Preces kods: UT673PV
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL

    Specifikācija
    ManufacturerModelTypeMaximum power measurementMaximum DC currentMaximum DC voltageDC open-circuit voltageDC short-circuit currentDisplayPower supplyTest modesData HoldOvervoltage categoryReverse polarity protectionSurge protectionOvercurrent protectionOverheating protectionPower overload protectionCertifications
    Description

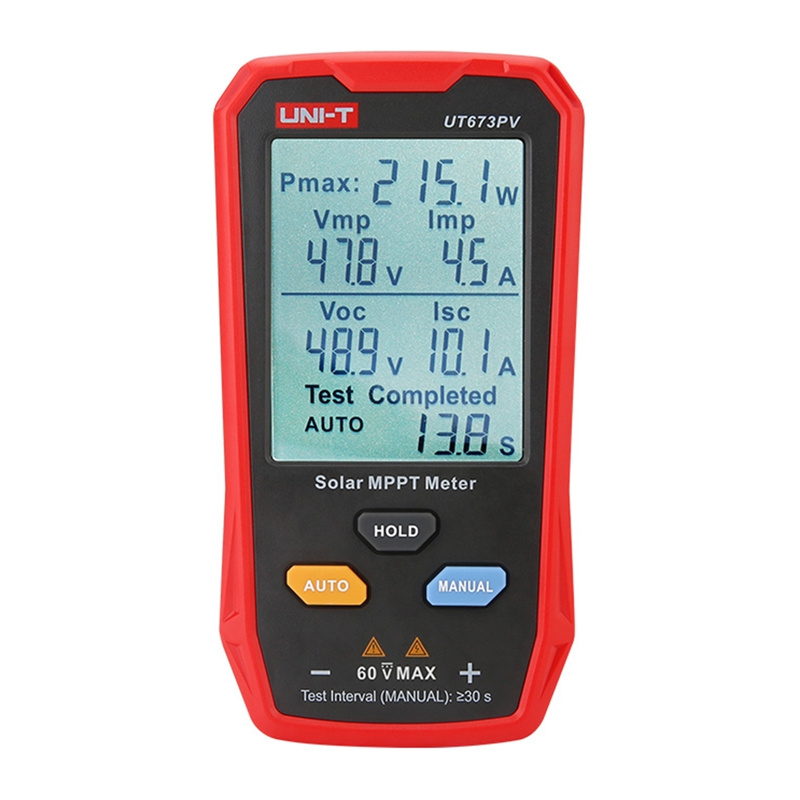

    Uni-T UT673PV MPPT Solar Tester

    The Uni-T UT673PV is a compact solar panel tester that allows you to quickly check the most important operating parameters of a module and detect any potential issues. The device measures the panel’s maximum power, voltage, and current at the maximum power point, as well as open-circuit voltage and short-circuit current. Thanks to its large screen, all results are visible simultaneously, which facilitates a quick assessment of the panel’s condition and speeds up field work.

    Quick measurement of key parameters

    The UT673PV model allows for the measurement of maximum power in the range of 5–800 W, maximum voltage and open-circuit voltage from 12 to 60 V, and maximum current and short-circuit current from 0 to 35 A. The device supports both manual and automatic MPPT test modes, allowing you to adapt the operation to a specific situation. The Data Hold function further facilitates reading and recording results during measurements.

    A convenient tool for working with PV installations

    The tester does not require batteries, as it is powered directly from the solar panel, which increases convenience and eliminates the need for additional charging. A large 52 × 66 mm LCD display improves data readability, and the included MC4 test leads facilitate quick connection of the device. Additional advantages include protection against reverse polarity, overvoltage, overcurrent, overheating, and power overload, which enhances operational safety.

    Included in the set

    • MPPT Tester
    • MC4 test leads
    • User manual

    Specifications

    Uni-T
    UT673PV
    Solar MPPT Tester
    5~800W ±(1.0%+10)
    0~35A ±(1.5%+5)
    12~60V ±(1.5%+5)
    12~60V ±(1.5%+5)
    0~35A ±(1.5%+5)
    52 × 66 mm LCD
    Directly from the solar panel
    Manual and automatic MPPT test
    Yes
    CAT 0 60V
    Yes
    Yes
    Yes
    Yes
    Yes
    CE, cETLus, RoHS
    Description
    Uni-T UT673PV MPPT Solar Tester The Uni-T UT673PV is a compact solar panel tester that allows you to quickly check the most important operating parameters of a module and detect any potential issues. The device measures the panel’s maximum power, voltage, and current at the maximum power point, as well as open-circuit voltage and short-circuit current. Thanks to its large screen, all results are visible simultaneously, which facilitates a quick assessment of the panel’s condition and speeds up field work. Quick measurement of key parameters The UT673PV model allows for the measurement of maximum power in the range of 5–800 W, maximum voltage and open-circuit voltage from 12 to 60 V, and maximum current and short-circuit current from 0 to 35 A. The device supports both manual and automatic MPPT test modes, allowing you to adapt the operation to a specific situation. The Data Hold function further facilitates reading and recording results during measurements. A convenient tool for working with PV installations The tester does not require batteries, as it is powered directly from the solar panel, which increases convenience and eliminates the need for additional charging. A large 52 × 66 mm LCD display improves data readability, and the included MC4 test leads facilitate quick connection of the device. Additional advantages include protection against reverse polarity, overvoltage, overcurrent, overheating, and power overload, which enhances operational safety. Included in the set MPPT Tester MC4 test leads User manual   Specifications Manufacturer Uni-T Model UT673PV Type Solar MPPT Tester Maximum power measurement 5~800W ±(1.0%+10) Maximum DC current 0~35A ±(1.5%+5) Maximum DC voltage 12~60V ±(1.5%+5) DC open-circuit voltage 12~60V ±(1.5%+5) DC short-circuit current 0~35A ±(1.5%+5) Display 52 × 66 mm LCD Power supply Directly from the solar panel Test modes Manual and automatic MPPT test Data Hold Yes Overvoltage category CAT 0 60V Reverse polarity protection Yes Surge protection Yes Overcurrent protection Yes Overheating protection Yes Power overload protection Yes Certifications CE, cETLus, RoHS

    Specifikācija
    ManufacturerModelTypeMaximum power measurementMaximum DC currentMaximum DC voltageDC open-circuit voltageDC short-circuit currentDisplayPower supplyTest modesData HoldOvervoltage categoryReverse polarity protectionSurge protectionOvercurrent protectionOverheating protectionPower overload protectionCertifications
    Description

    Uni-T UT673PV MPPT Solar Tester

    The Uni-T UT673PV is a compact solar panel tester that allows you to quickly check the most important operating parameters of a module and detect any potential issues. The device measures the panel’s maximum power, voltage, and current at the maximum power point, as well as open-circuit voltage and short-circuit current. Thanks to its large screen, all results are visible simultaneously, which facilitates a quick assessment of the panel’s condition and speeds up field work.

    Quick measurement of key parameters

    The UT673PV model allows for the measurement of maximum power in the range of 5–800 W, maximum voltage and open-circuit voltage from 12 to 60 V, and maximum current and short-circuit current from 0 to 35 A. The device supports both manual and automatic MPPT test modes, allowing you to adapt the operation to a specific situation. The Data Hold function further facilitates reading and recording results during measurements.

    A convenient tool for working with PV installations

    The tester does not require batteries, as it is powered directly from the solar panel, which increases convenience and eliminates the need for additional charging. A large 52 × 66 mm LCD display improves data readability, and the included MC4 test leads facilitate quick connection of the device. Additional advantages include protection against reverse polarity, overvoltage, overcurrent, overheating, and power overload, which enhances operational safety.

    Included in the set

    • MPPT Tester
    • MC4 test leads
    • User manual

    Specifications

    Uni-T
    UT673PV
    Solar MPPT Tester
    5~800W ±(1.0%+10)
    0~35A ±(1.5%+5)
    12~60V ±(1.5%+5)
    12~60V ±(1.5%+5)
    0~35A ±(1.5%+5)
    52 × 66 mm LCD
    Directly from the solar panel
    Manual and automatic MPPT test
    Yes
    CAT 0 60V
    Yes
    Yes
    Yes
    Yes
    Yes
    CE, cETLus, RoHS
    Description
    Uni-T UT673PV MPPT Solar Tester The Uni-T UT673PV is a compact solar panel tester that allows you to quickly check the most important operating parameters of a module and detect any potential issues. The device measures the panel’s maximum power, voltage, and current at the maximum power point, as well as open-circuit voltage and short-circuit current. Thanks to its large screen, all results are visible simultaneously, which facilitates a quick assessment of the panel’s condition and speeds up field work. Quick measurement of key parameters The UT673PV model allows for the measurement of maximum power in the range of 5–800 W, maximum voltage and open-circuit voltage from 12 to 60 V, and maximum current and short-circuit current from 0 to 35 A. The device supports both manual and automatic MPPT test modes, allowing you to adapt the operation to a specific situation. The Data Hold function further facilitates reading and recording results during measurements. A convenient tool for working with PV installations The tester does not require batteries, as it is powered directly from the solar panel, which increases convenience and eliminates the need for additional charging. A large 52 × 66 mm LCD display improves data readability, and the included MC4 test leads facilitate quick connection of the device. Additional advantages include protection against reverse polarity, overvoltage, overcurrent, overheating, and power overload, which enhances operational safety. Included in the set MPPT Tester MC4 test leads User manual   Specifications Manufacturer Uni-T Model UT673PV Type Solar MPPT Tester Maximum power measurement 5~800W ±(1.0%+10) Maximum DC current 0~35A ±(1.5%+5) Maximum DC voltage 12~60V ±(1.5%+5) DC open-circuit voltage 12~60V ±(1.5%+5) DC short-circuit current 0~35A ±(1.5%+5) Display 52 × 66 mm LCD Power supply Directly from the solar panel Test modes Manual and automatic MPPT test Data Hold Yes Overvoltage category CAT 0 60V Reverse polarity protection Yes Surge protection Yes Overcurrent protection Yes Overheating protection Yes Power overload protection Yes Certifications CE, cETLus, RoHS
