| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cable standard | Cat6 |
| Port forwarding | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Wireless radio | Yes |
| VPN server | PPTP VPN, OpenVPN |
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 5G | No |
| Dual SIM support | No |
| 3G standards | DC-HSPA+, HSPA, UMTS |
| 4G standard | LTE-FDD |
| GSM bands supported | 850,900,2100 MHz |
| SIM card type | NanoSIM |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| DC-in jack | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Wireless statistics | Yes |
| MU-MIMO technology | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| Schedule access | Yes |
| URL filtering | Yes |
| DMZ support | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Management protocols | IPv4, IPv6 |
| Product type | Tabletop router |
| Product colour | Black |
| Built-in display | No |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
| Sustainability certificates | RoHS |
| Antenna design | External |
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
| Plug and Play | Yes |
| Firmware upgradeable | Yes |
| Certification | CE, RoHS |
| Power source type | DC |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 5 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Width | 202 mm |
| Depth | 141 mm |
| Height | 33.6 mm |
| Description |

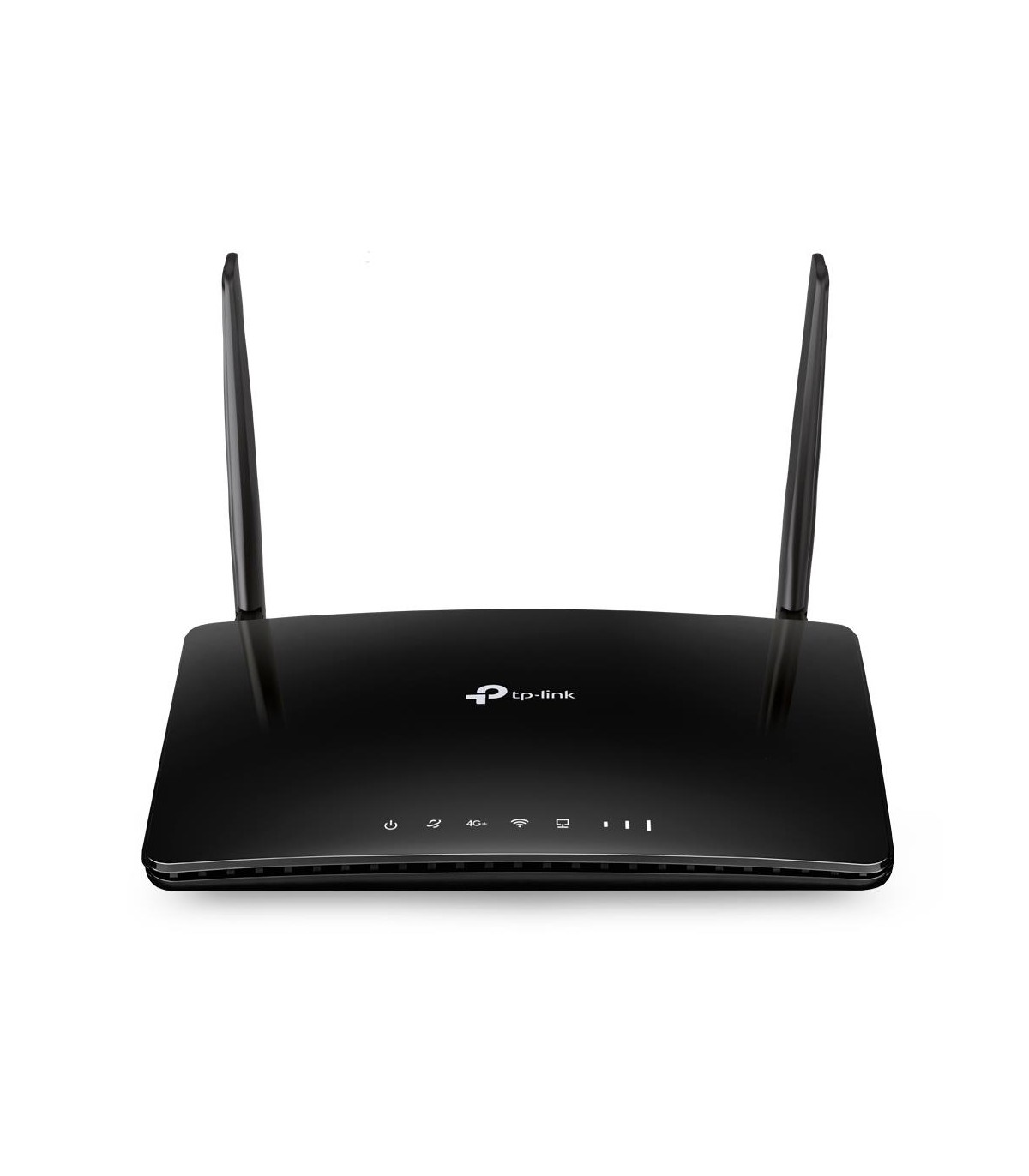

| TP-Link Archer MR500. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Mobile network generation: 4G, 3G standards: DC-HSPA+, HSPA, UMTS, 4G standard: LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
