Ražotājs: UNI-T

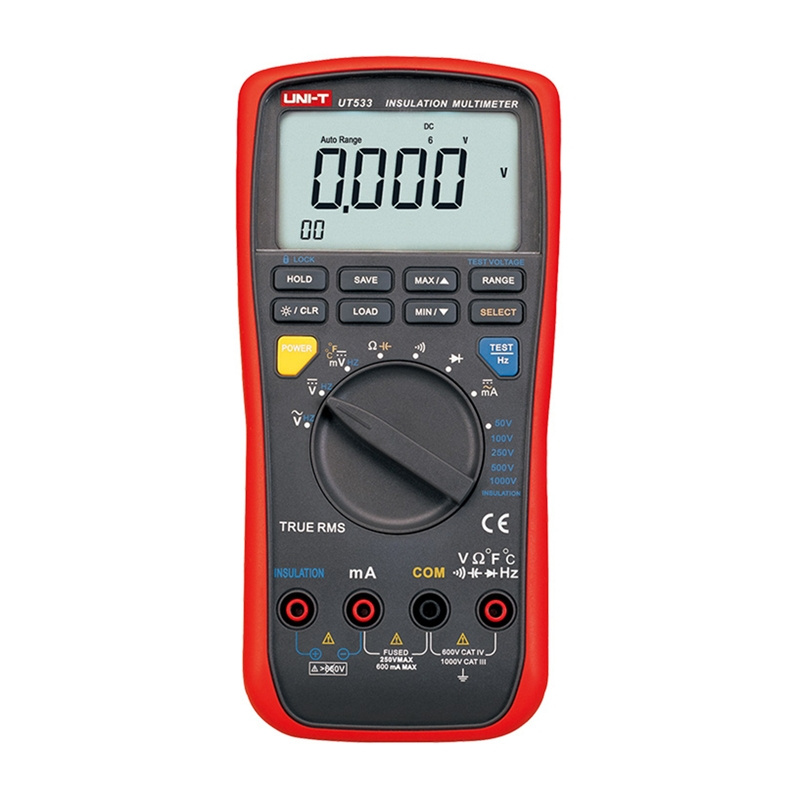

Uni-T UT533 Insulation Resistance Tester

€214,93 ar pvn

Artikuls: ST10474056

Preces kods: UT533

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
	6 - 12 dienās	40	€214,93 ar pvn
PL	8 - 15 dienās	40	€269,06 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Specifikācija 1
Specifikācija 2

ManufacturerModelInsulation resistance measurementTest voltageAC voltageDC voltageAC currentDC currentResistanceCapacitancePower supplyDimensionsWeight

Description
Description	Uni-T UT533 Insulation Resistance Tester The Uni-T UT533 Insulation Resistance Tester is a versatile 2-in-1 measuring device that combines the functions of a classic RMS digital multimeter with an insulation tester capable of test voltages up to 1000 V. It is suitable for industrial and laboratory work as well as for home installations, as it enables the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature, and additionally allows for precise monitoring of the insulation condition of wires and devices. Wide range of measurements in a single device The Uni-T UT533 is designed to replace several tools at once. This allows the user to quickly switch between voltage, current, and resistance measurements, reducing work time and increasing convenience. The RMS measurement function ensures accurate results even with distorted signals, which is important in modern electrical installations. Insulation resistance measurement up to 1000V The device offers the ability to test insulation in the range up to 2GΩ at a test voltage from 50 to 1000V. This allows for effective diagnosis of the condition of wires, motors, or electrical installations, detecting potential damage before it leads to a failure. Clear display and convenient operation A large, backlit screen with a resolution of 5999 ensures good visibility of results even in low light. The dual-display function allows two parameters to be read simultaneously, facilitating measurement analysis. Additional features, such as HOLD, MAX/MIN, and auto-off, enhance comfort and safety during operation. Safety and robust construction The UT533 model complies with CAT III 1000V and CAT IV 600V safety standards, allowing for safe use in demanding conditions. The double insulation of the housing and compliance with CE and RoHS certifications enhance the device’s reliability in daily use. Included Test leads Batteries Alligator clips Type K temperature probe
Uni-T
UT533
0.1MΩ – 2GΩ (±5%+5)
50V – 1000V
6V – 1000V (±2%+3)
6mV – 1000V (±0.3%+4)
60mA – 600mA (±1.5%+2)
60mA – 600mA (±1.0%+2)
600Ω – 40MΩ (±1.5%+3)
10nF – 100µF (±3%+5)
6 × 1.5V LR6 battery
96.7 × 202.8 × 46 mm
505 g

Description

Uni-T UT533 Insulation Resistance Tester The Uni-T UT533 Insulation Resistance Tester is a versatile 2-in-1 measuring device that combines the functions of a classic RMS digital multimeter with an insulation tester capable of test voltages up to 1000V. It is suitable for industrial and laboratory work as well as for home installations, as it allows for the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature, and additionally enables precise monitoring of the insulation condition of wires and devices. A wide range of measurements in a single device The Uni-T UT533 is designed to replace several tools at once. This allows the user to quickly switch between voltage, current, and resistance measurements, reducing setup time and increasing convenience. The RMS measurement function ensures accurate results even with distorted signals, which is crucial in modern electrical installations. Insulation resistance measurement up to 1000V The device offers the ability to test insulation in the range up to 2GΩ at a test voltage from 50 to 1000V. This allows for effective diagnosis of the condition of wires, motors, or electrical installations, detecting potential damage before it leads to a failure. Easy-to-read display and user-friendly operation The large 5999-count backlit display ensures good visibility of results even in low light. The dual-display function allows simultaneous reading of two parameters, facilitating measurement analysis. Additional features, such as HOLD, MAX/MIN, and auto-off, enhance comfort and safety during operation. The UT533 model complies with CAT III 1000V and CAT IV 600V safety standards, allowing for safe use in demanding conditions. The double-insulated housing and compliance with CE and RoHS certifications increase the device’s reliability in daily use. Included Test leads Batteries Alligator clips Type K temperature probe Manufacturer Uni-T Model UT533 Insulation resistance measurement 0.1MΩ – 2GΩ (±5%+5) Test voltage 50V – 1000V AC voltage 6V – 1000V (±2%+3) DC voltage 6mV – 1000V (±0.3%+4) AC current 60mA – 600mA (±1.5%+2) DC current 60mA – 600mA (±1.0%+2) Resistance 600Ω – 40MΩ (±1.5%+3) Capacitance 10nF – 100µF (±3%+5) Power supply 6 × 1.5V LR6 batteries Dimensions 96.7 × 202.8 × 46 mm Weight 505 g

Specifikācija

Specifikācija 1
Specifikācija 2

ManufacturerModelInsulation resistance measurementTest voltageAC voltageDC voltageAC currentDC currentResistanceCapacitancePower supplyDimensionsWeight

Description
Description	Uni-T UT533 Insulation Resistance Tester The Uni-T UT533 Insulation Resistance Tester is a versatile 2-in-1 measuring device that combines the functions of a classic RMS digital multimeter with an insulation tester capable of test voltages up to 1000 V. It is suitable for industrial and laboratory work as well as for home installations, as it enables the measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature, and additionally allows for precise monitoring of the insulation condition of wires and devices. Wide range of measurements in a single device The Uni-T UT533 is designed to replace several tools at once. This allows the user to quickly switch between voltage, current, and resistance measurements, reducing work time and increasing convenience. The RMS measurement function ensures accurate results even with distorted signals, which is important in modern electrical installations. Insulation resistance measurement up to 1000V The device offers the ability to test insulation in the range up to 2GΩ at a test voltage from 50 to 1000V. This allows for effective diagnosis of the condition of wires, motors, or electrical installations, detecting potential damage before it leads to a failure. Clear display and convenient operation A large, backlit screen with a resolution of 5999 ensures good visibility of results even in low light. The dual-display function allows two parameters to be read simultaneously, facilitating measurement analysis. Additional features, such as HOLD, MAX/MIN, and auto-off, enhance comfort and safety during operation. Safety and robust construction The UT533 model complies with CAT III 1000V and CAT IV 600V safety standards, allowing for safe use in demanding conditions. The double insulation of the housing and compliance with CE and RoHS certifications enhance the device’s reliability in daily use. Included Test leads Batteries Alligator clips Type K temperature probe
Uni-T
UT533
0.1MΩ – 2GΩ (±5%+5)
50V – 1000V
6V – 1000V (±2%+3)
6mV – 1000V (±0.3%+4)
60mA – 600mA (±1.5%+2)
60mA – 600mA (±1.0%+2)
600Ω – 40MΩ (±1.5%+3)
10nF – 100µF (±3%+5)
6 × 1.5V LR6 battery
96.7 × 202.8 × 46 mm
505 g

Description
