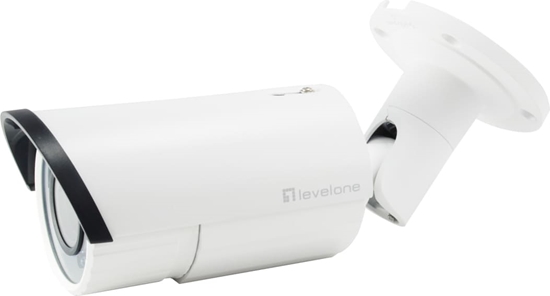

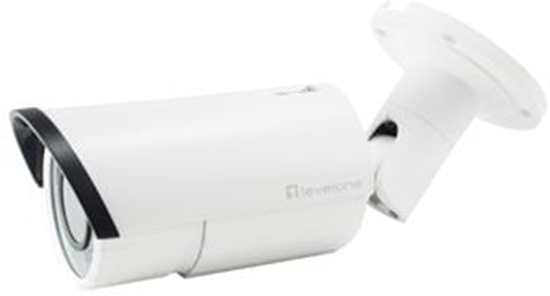

The LevelOne FCS-5060 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP66 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5060 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
| | Type | IP security camera | | Placement supported | Indoor & outdoor | | Connectivity technology | Wired | | Wide Dynamic Range (WDR) | Y | | Infrared (IR) cut-off filter | Y | | Certification | CE,FCC | | Mounting type | Ceiling/wall | | Product colour | White | | Form factor | Bullet | | International Protection (IP) code | IP66 | | Country of origin | China | | Field of view (FOV) angle | 106° | | Camera shutter speed | 1/3 - 1/10000 s | | Sensor type | CMOS | | Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") | | Progressive scan | Y | | Number of lenses | 1 | | Zoom capability | Y | | Optical zoom | 4x | | Focus | Motorized | | Focal length range | 2.8 - 12 mm | | Focus adjustment | 1.4 | | Night vision | Y | | Night vision distance | 30 m | | LED type | IR | | Maximum resolution | 1920 x 1080 pixels | | Total megapixels | 2 MP | | Video formats supported | MP4 | | Video compression formats | H.264, H.264+, M-JPEG | | Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) | | Frame rate | 30 fps | | Video streaming | Y | | Noise reduction | Y | | Image quality adjustment | Brightness, Contrast, Saturation, Sharpness | | Flip & mirror | Y | | Portrait mode | Y | | Privacy masking | Y | | Time stamp overlay | Y | | Text caption overlay | Y | | Back Light Compensation (BLC) | Y | | Voice codecs | G.711, G.722.1, G.726 | | Ethernet LAN | Y | | Wi-Fi | N | | Bluetooth | N | | Ethernet interface type | Fast Ethernet | | Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u | | Supported network protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS,Unicast | | Number of users | 20 user(s) | | Streaming method | Multicast | | Card reader integrated | Y | | Compatible memory cards | SD, SDHC, SDXC | | Maximum memory card size | 128 GB | | Ethernet LAN (RJ-45) ports | 1 | | Composite video out | 1 | | Terminal block port | Y | | Video motion detection | Y | | Reset button | Y | | Cable management | Y | | Power source type | PoE | | Power consumption (typical) | 5.5 W | | Power consumption (max) | 7.5 W | | DC output voltage | 12 | | Power over Ethernet (PoE) | Y | | Operating temperature (T-T) | 30 - 60 °C | | Operating relative humidity (H-H) | 0 - 95% | | Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 | | Width | 105 mm | | Depth | 258.6 mm | | Height | 95 mm | | Weight | 1.2 kg | | Package width | 386 mm | | Package depth | 156 mm | | Package height | 155 mm | | Package weight | 1.33 kg | | Package type | Box | | Number of cameras | 1 | | Resource CD | Y | | Iris | Y | | Harmonized System (HS) code | 85258900 | | Master (outer) case width | 490 mm | | Master (outer) case length | 400 mm | | Master (outer) case height | 500 mm | | Master (outer) case gross weight | 11.9 kg | | Products per master (outer) case | 9 pc(s) |
|
|
