    Manufacturer: ATEN

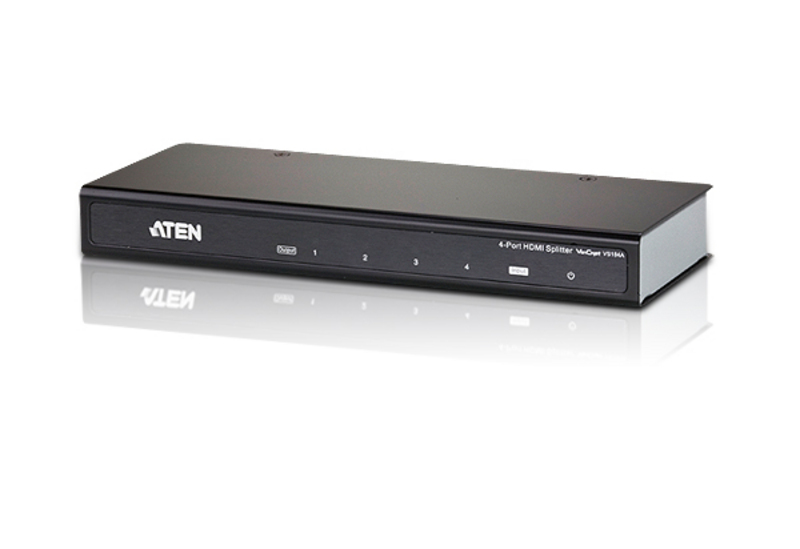

    ATEN 4-Port HDMI Audio/Video Splitter 4Kx2K


    €94.23 incl tax

    SKU: ST04992998
    Manufacturer part number: VS184A-AT-G
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LT
    LT

    Products specifications
    RJ-45 port 4
    Properties HDMI
    Video ports quantity5
    Video port typeHDMI
    Video out4x HDMI
    DC-in jackYes
    Maximum resolution4096 x 2160 pixels
    Product colourBlack
    HD type4K Ultra HD
    3DYes
    Maximum operating distance15 m
    Maximum refresh rate60 Hz
    Bandwidth340 MHz
    HDCP version1.4
    HDCPYes
    Plug and PlayYes
    LED indicatorsYes
    Dolby technologiesDTS-HD Master Audio, Dolby TrueHD
    AC input voltage5 V
    Power consumption (typical)6.02 W
    Width80 mm
    Depth200 mm
    Height25 mm
    Weight703 g
    Quantity per pack1 pc(s)
    Package width59 mm
    Package depth239 mm
    Package height160 mm
    Package weight825 g
    ManualYes
    Cables includedHDMI
    AC adapter includedYes
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Master (outer) case net weight14.1 kg
    Harmonized System (HS) code85176990
    Master (outer) case width315 mm
    Master (outer) case length490 mm
    Master (outer) case height338 mm
    Master (outer) case gross weight17.3 kg
    Products per master (outer) case20 pc(s)
    Description
    ATEN 4-Port HDMI Audio/Video Splitter 4Kx2K. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. AC input voltage: 5 V, Power consumption (typical): 6.02 W. Width: 80 mm, Depth: 200 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm
    Gross depth (mm)60
    Gross height (mm)160
    Gross weight0.816
    Gross width (mm)240
    Net weight0.651
    Packing quantity1.00
    Paper/Pasteboard165.00
    Tare weight (kg)0.17
    Volume (m3)0.002304
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Connector 11 x DC Jack
    Temperature range (T-T)0-50˚C
    MaterialMetal
    Other featuresConnects one HDMI source to four HDMI displays at the same time. HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant. Long distance transmission – up to 15 m (24 AWG). Supports max. data rate of 10.2 Gbps
    Gross depth master carton565
    Gross width master carton387
    Gross height master carton260
    Net weight master carton8.022
    Tare weight master carton0.966
    Producer product nameVS184A
    Producer product family 4-Port 4K HDMI Splitter
    Palette Qty375
    ProducerAten
    Warranty24

    Products specifications
    RJ-45 port 4
    Properties HDMI
    Video ports quantity5
    Video port typeHDMI
    Video out4x HDMI
    DC-in jackYes
    Maximum resolution4096 x 2160 pixels
    Product colourBlack
    HD type4K Ultra HD
    3DYes
    Maximum operating distance15 m
    Maximum refresh rate60 Hz
    Bandwidth340 MHz
    HDCP version1.4
    HDCPYes
    Plug and PlayYes
    LED indicatorsYes
    Dolby technologiesDTS-HD Master Audio, Dolby TrueHD
    AC input voltage5 V
    Power consumption (typical)6.02 W
    Width80 mm
    Depth200 mm
    Height25 mm
    Weight703 g
    Quantity per pack1 pc(s)
    Package width59 mm
    Package depth239 mm
    Package height160 mm
    Package weight825 g
    ManualYes
    Cables includedHDMI
    AC adapter includedYes
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Master (outer) case net weight14.1 kg
    Harmonized System (HS) code85176990
    Master (outer) case width315 mm
    Master (outer) case length490 mm
    Master (outer) case height338 mm
    Master (outer) case gross weight17.3 kg
    Products per master (outer) case20 pc(s)
    Description
    ATEN 4-Port HDMI Audio/Video Splitter 4Kx2K. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. AC input voltage: 5 V, Power consumption (typical): 6.02 W. Width: 80 mm, Depth: 200 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm
    Gross depth (mm)60
    Gross height (mm)160
    Gross weight0.816
    Gross width (mm)240
    Net weight0.651
    Packing quantity1.00
    Paper/Pasteboard165.00
    Tare weight (kg)0.17
    Volume (m3)0.002304
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Connector 11 x DC Jack
    Temperature range (T-T)0-50˚C
    MaterialMetal
    Other featuresConnects one HDMI source to four HDMI displays at the same time. HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant. Long distance transmission – up to 15 m (24 AWG). Supports max. data rate of 10.2 Gbps
    Gross depth master carton565
    Gross width master carton387
    Gross height master carton260
    Net weight master carton8.022
    Tare weight master carton0.966
    Producer product nameVS184A
    Producer product family 4-Port 4K HDMI Splitter
    Palette Qty375
    ProducerAten
    Warranty24
