    Manufacturer: LEVELONE

    Level One LevelOne Switch 50x FE FGU-5021 2xGSFP 19"


    €199.23 incl tax

    SKU: ST03740327
    Manufacturer part number: FGU-5021
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    RJ-45 port 50
    RJ-45 port 8
    Status10 dienas
    Description

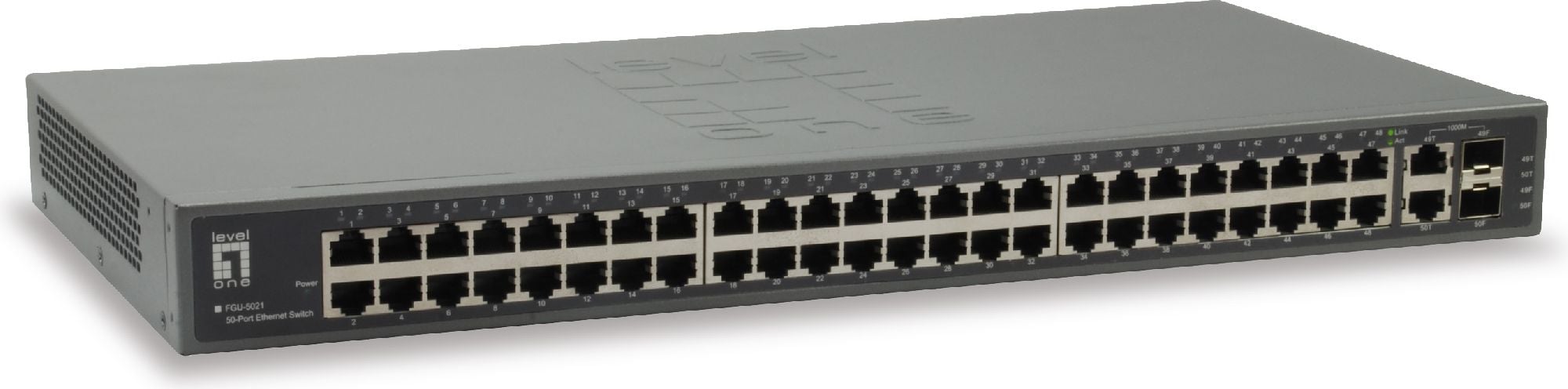

    - 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX - 9K jumbo frames to increase data transfer rates - Supports 8K MAC address auto-learning and auto-aging - 19-inch metal housing - Quick and easy installation Fast connections and fiber distances FGU-5021 is a 48-port Fast Ethernet Switch (10/100 Mbps) that gives you a high-performance, low-cost, easy-to-use, solution to expand your network reach. With 2 Gigabit ports and 2 SFP Port , you’re able to connect to other networks for flexible and powerful deployment options. Plug and Play, Flexible and Easy GSW-5150 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

    Basic switching RJ-45 Ethernet ports quantity 50
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Fast Ethernet (copper) ports quantity 48
    Gigabit Ethernet (copper) ports quantity 2
    Combo SFP ports quantity 2
    Fiber optic connector SFP
    Console port RJ-45
    Networking standards IEEE 802.3, IEEE 802.3az, IEEE 802.3u
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T, 1000BASE-TX
    Full duplex Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address auto-learning supported Y
    MAC address auto-aging supported Y
    Fiber ethernet cabling technology 100BASE-X, 1000BASE-X
    MAC address table 8000 entries
    Switching capacity 13.6 Gbit/s
    Store-and-forward Y
    Jumbo frames support Y
    Jumbo frames 9000
    Packet buffer memory 4 MB
    Rack mounting Y
    Product colour Grey
    Housing material Metal
    LED indicators Activity, Link, Power
    Country of origin China
    Certification CE/FCC
    Internal memory 16 MB
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (typical) 28.6 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 5 - 90%
    Width 44 mm
    Depth 230 mm
    Height 440 mm
    Weight 2.7 kg
    Cables included AC
    Quick start guide Y
    Package type Gift box
    Package width 375 mm
    Package depth 100 mm
    Package height 510 mm
    Package weight 2.82 kg
    Master (outer) case width 520 mm
    Master (outer) case length 395 mm
    Master (outer) case height 535 mm
    Harmonized System (HS) code 85176990
    Master (outer) case gross weight 13.8 kg
    Products per master (outer) case 5 pc(s)
