| manufacturer | ANTEC |
| product group | Cooler/Fan |
| product type | Housing fan |
| colour | black |
| weight | 0.68 kg |
| height of packaging (single piece) | 335 mm |
| width of packaging (single piece) | 335 mm |
| depth of packaging (single piece) | 595 mm |
| package weight (single piece) | 12.8 kg |
| gross weight | 12.8 |
| scope of delivery | 3x fan |
| height | 25 mm |
| width | 120 mm |
| depth | 120 mm |
| dimensions (hxwxd) | 25 x 120 x 120 mm |
| quantity of fans | 3 |
| connector type | ARGB 3-pin |
| dimensions (hxwxd) fan | 25 x 120 x 120 mm |
| fan rotational speed | 800RPM± 10% - 1800RPM± 10% |
| noise level spinning (max.) | 27.2 dB (A) |
| fan bearing type | liquid-damped |
| air pressure | 1.29 mm H²O |
| rated fan current | 0.12 A |
| Description |

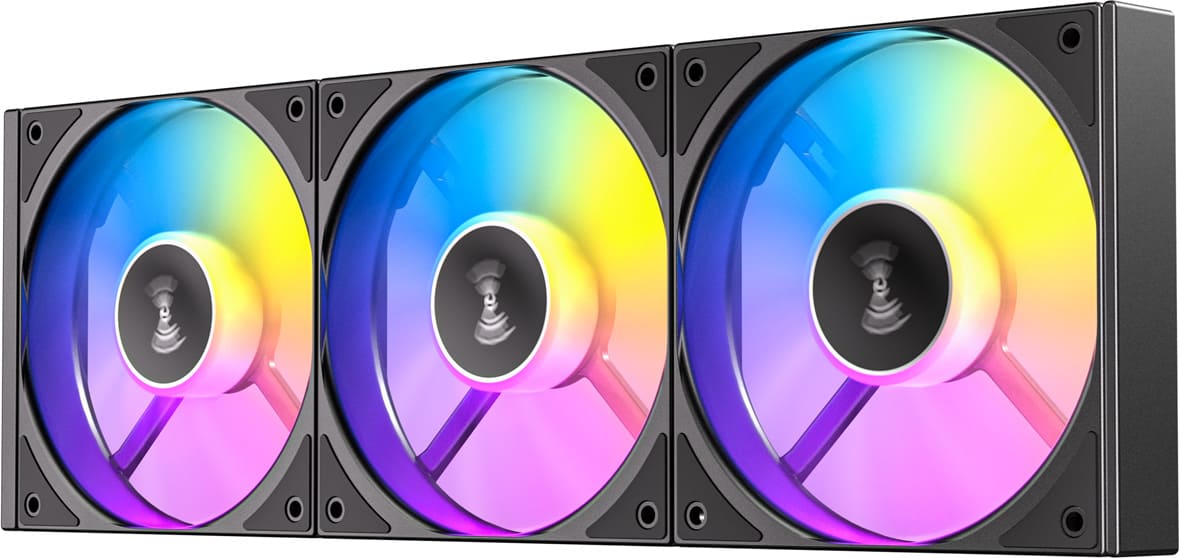

The Antec Connect 120 Reverse ARGB features a 5-blade design that boosts air intake and airflow for superior thermal performance. Equipped with a hydraulic bearing and eight anti-vibration rubber pads, it delivers quiet, stable, and long-lasting operation. Its intuitive interlocking system with daisy-chain support ensures easy installation and reduced cable clutter.- Minimalist Square Frame Design: Featuring a seamless wireless connection between fans using pin connectors and decorative covers.
- 5-Blade Design: Delivers efficient ventilation and strong airflow, ensuring the fan maintains high cooling efficiency even under increased air resistance.
- 8 Silicone Anti-Vibration Pads: Reduce noise and resonance while increasing friction with the case, stabilizing the fan body.
- Hydraulic Bearing: The hydraulic bearing offers a larger oil reservoir compared to traditional oil bearings and features a unique recirculating oil supply loop. This significantly extends the lifespan compared to standard oil-sealed bearings, with lower operational noise.
- Speed/Lighting Synchronization with Motherboard: Includes a 3-pin ARGB connector and a 4-pin PWM connector. The dual connectors make cable management more streamlined.
- High-Performance PWM: When connected to the motherboard, the fan speed can be controlled between 800 and 1800 RPM, adjusting with temperature changes to reduce noise or increase airflow as needed.
|
|
